Extron AC+USB 311 AUS (part number 60-1782-04) — a Cable Cubby Series power module with one Australian AC outlet, a USB Type-C port and a USB Type-A port.

Australian and New Zealand rooms fitted with USB-C laptop fleets get the same treatment as every other market in the 300 Series range. The module presents one unswitched Australia mains outlet, a USB Type-C connector that negotiates 5, 9, 12, 15 or 20 VDC at up to 3 A, and a USB Type-A port for older gear. Combined USB output on non-US models runs to 47.5 watts. The AC circuit accepts 240 VAC at 50-60 Hz with a 10 A total maximum, and an external Extron supply powers the USB side from beneath the table.

Key Capabilities

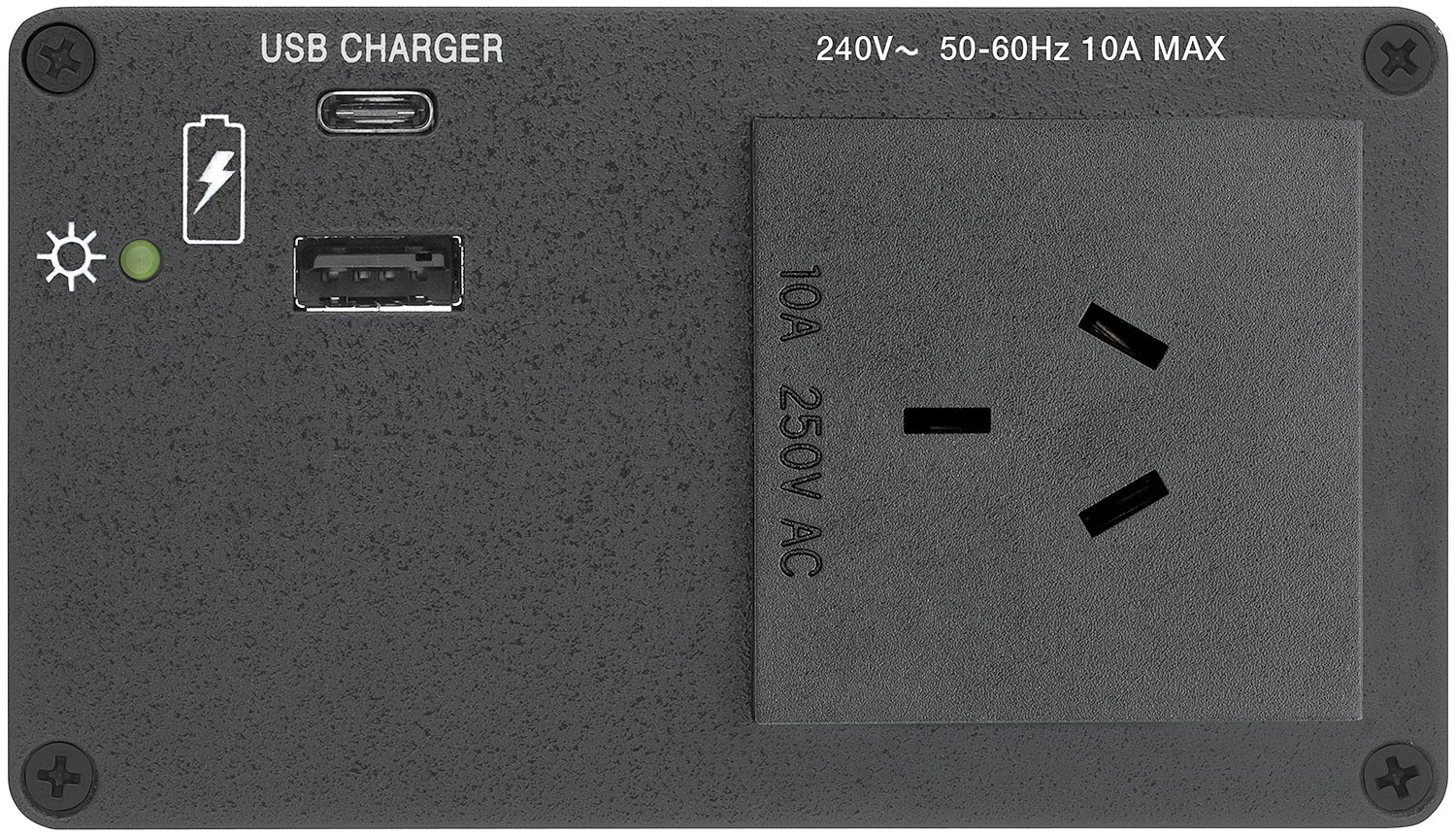

• One Australia AC outlet plus USB Type-C and USB Type-A ports
• USB Type-C negotiates up to 20 VDC at 2.25 A, 45 W maximum
• 47.5 watts combined across the two USB connectors
• 240 VAC, 50-60 Hz mains with a 10 A total maximum

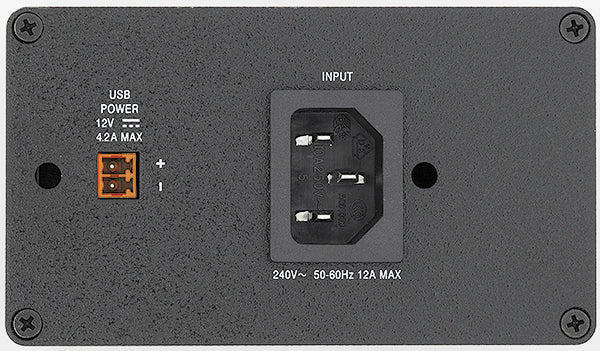

• External USB supply: 100-240 VAC in, 12 VDC 4.2 A out
• Aluminium body, 1.6 lbs (0.8 kg), 2.99 in deep
• 3-year product warranty, 7-year Everlast supply warranty

Where It Is Used

Fitted to conference and huddle tables in Australian and New Zealand corporate offices, tertiary teaching and study spaces, government and council meeting rooms, and hotel conference facilities, particularly where staff and students carry USB-C notebooks rather than barrel-jack chargers.

Specifications at a Glance

• Outlets: one Australia AC, one USB Type-C, one USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB: up to 45 W on Type-C, 47.5 W combined
• Weight: 1.6 lbs (0.8 kg)
• Material: aluminium body

Also referenced as Extron ACUSB311AUS, AC-USB-311-AUS, part number 60178204.
