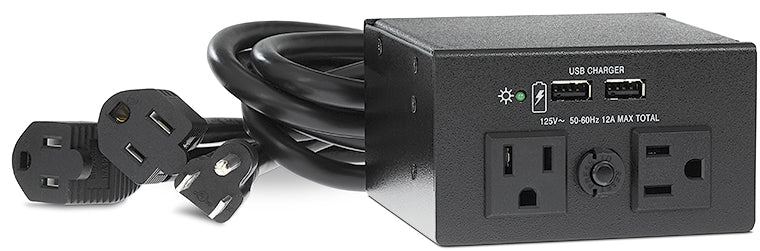

Extron AC+USB 244 US, Cord (part number 60-1890-01) — the current cord-connected US AC and USB power module for Extron Cable Cubby Series enclosures.

The 244 is the most fully equipped module in the AC+USB 200 range for North America. Extron lists it with two US AC outlets and two USB Type-A outlets at the face, an integrated power supply, a 12 A breaker on board, and two further AC outlets underneath the module. Those under-surface outlets are the practical difference: they power a display, soundbar or small switcher hidden below the table without a separate power strip, while the breaker means an overload trips locally instead of taking out the room circuit. Mains runs at 125 VAC, 50-60 Hz with a 12 A total ceiling; USB provides 5 VDC at 4.0 A for 20 watts.

Key Capabilities

• Two US AC outlets and two USB Type-A ports at the surface
• Two additional AC outlets underneath for concealed AV gear
• On-board 12 A breaker for local overload protection
• Integrated power supply, no separate brick to mount
• 125 VAC, 50-60 Hz mains, 12 A maximum total
• USB output 5 VDC, 4.0 A, 20 watts total
• Metal chassis, 2.5 lbs (1.1 kg), UL and c-UL listed

Where It Is Used

Specify the 244 on conference and huddle tables that also feed under-surface equipment, plus lecterns, training rooms, medical imaging reading rooms, broadcast desks and control-room consoles where a local breaker and concealed outlets simplify the power design.

Specifications at a Glance

• Outlets: two US AC and two USB Type-A, plus two AC underneath
• Protection: 12 A breaker
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Weight: 2.5 lbs (1.1 kg)

Also referenced as Extron ACUSB244US, AC-USB-244-US, part number 60189001.
