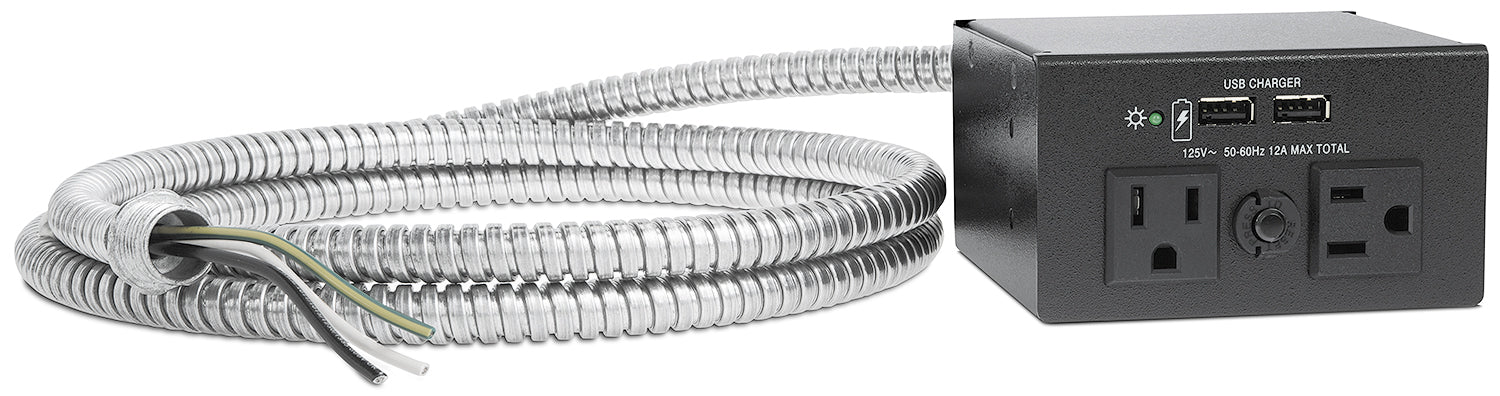

Extron AC+USB 244 US, Conduit (part number 60-1890-20) — the hard-wired version of Extron's top-specification US AC and USB Cable Cubby module.

Same feature set as the cord model, different feed. Extron lists this part with two US AC outlets and two USB Type-A outlets, an integrated power supply, a 12 A breaker, and 6 ft (1.83 m) of conduit in place of a plug-ended cord. That makes it the module to specify when the project requires furniture power to be wired permanently into a UL listed junction box rather than plugged into a wall receptacle. Electrical ratings are unchanged at 125 VAC, 50-60 Hz and 12 A total, with USB delivering 5 VDC at 4.0 A for 20 watts. Allow 5.00 in of additional depth for the conduit bend radius.

Key Capabilities

• Two US AC outlets plus two USB Type-A charging ports
• 6 ft (1.83 m) of conduit for permanent hard-wired installation
• On-board 12 A breaker for local overload protection
• Integrated power supply built into the module
• 125 VAC, 50-60 Hz mains with a 12 A total maximum
• USB output 5 VDC, 4.0 A, 20 watts total
• Metal chassis at 2.4 lbs (1.1 kg), UL and c-UL listed

Where It Is Used

This variant belongs in permanent millwork: courtroom and council-chamber benches, hospital and clinical conference rooms, university lecture furniture, secure command centres and corporate headquarters, wherever code or specification demands a hard-wired connection to the building circuit.

Specifications at a Glance

• Outlets: two US AC, two USB Type-A, 12 A breaker
• Feed: 6 ft (1.83 m) conduit
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Weight: 2.4 lbs (1.1 kg)

Also referenced as Extron ACUSB244US, AC-USB-244-US, part number 60189020.
