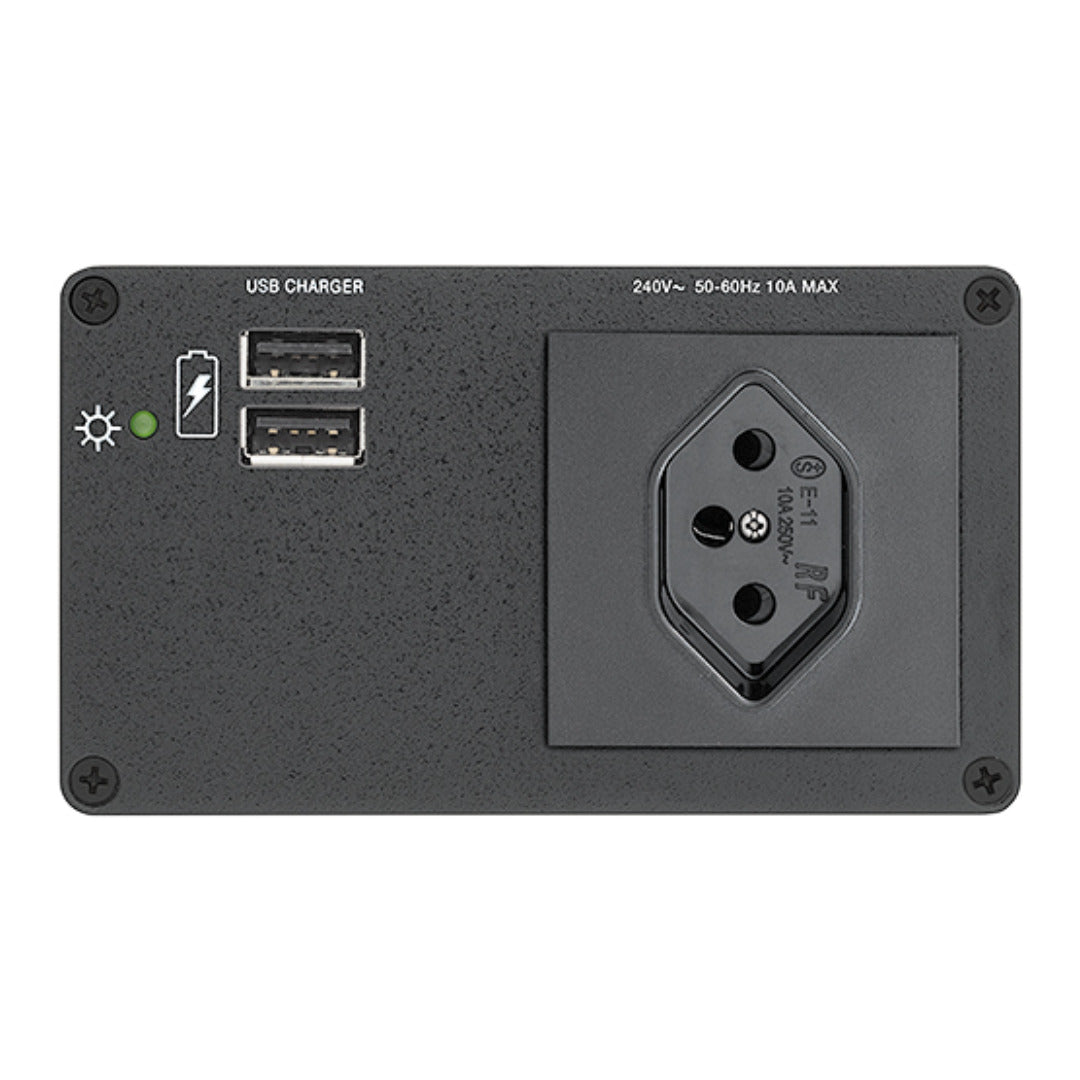

Extron AC+USB 212 SW (part number 60-1384-05) — a Cable Cubby Series power module with one Switzerland AC outlet and two USB Type-A charging ports.

Switzerland's socket format is unique to the country, which is why Extron builds a Swiss version of this module rather than shipping a generic European one. Installed in a Cable Cubby enclosure, it presents a single unswitched Swiss mains outlet alongside two USB Type-A ports, so the room can power a laptop and charge personal devices from the same tidy opening. The AC circuit takes 240 VAC at 50-60 Hz with a 10 A total limit. USB output is 5 VDC, up to 2.4 A on one port or 3.0 A shared, supplied externally rather than from an internal transformer.

Key Capabilities

• One unswitched Switzerland AC outlet plus two USB Type-A ports
• 240 VAC, 50-60 Hz mains rated at 10 A maximum total
• USB output 5 VDC, 2.4 A per port or 3.0 A total shared

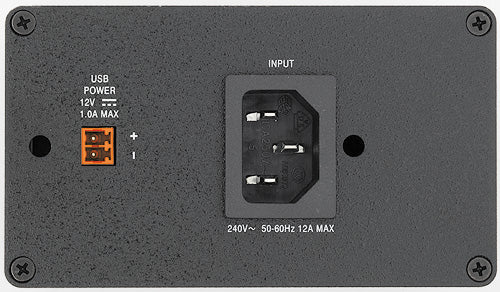

• External USB supply: 100-240 VAC in, 12 VDC at 1.5 A out
• Convection cooled, sealed enclosure with no vents
• Metal build, 2.2 lbs (1.0 kg), 2.40 x 4.20 x 2.99 in
• 3-year product warranty from Extron

Where It Is Used

Swiss integrators fit this module into banking and insurance boardrooms, pharmaceutical and research meeting rooms, ETH and university teaching spaces, cantonal government facilities and conference hotels, wherever an enclosure has to combine locally compliant mains power with USB charging.

Specifications at a Glance

• Outlets: one Switzerland AC, two USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB power: 5 VDC, 2.4 A single port, 3.0 A total shared
• Enclosure: 2.40 x 4.20 x 2.99 in, metal, 2.2 lbs (1.0 kg)
• Compliance: CE, c-UL, UL, RoHS, WEEE

Also referenced as Extron ACUSB212SW, AC-USB-212-SW, part number 60138405.
