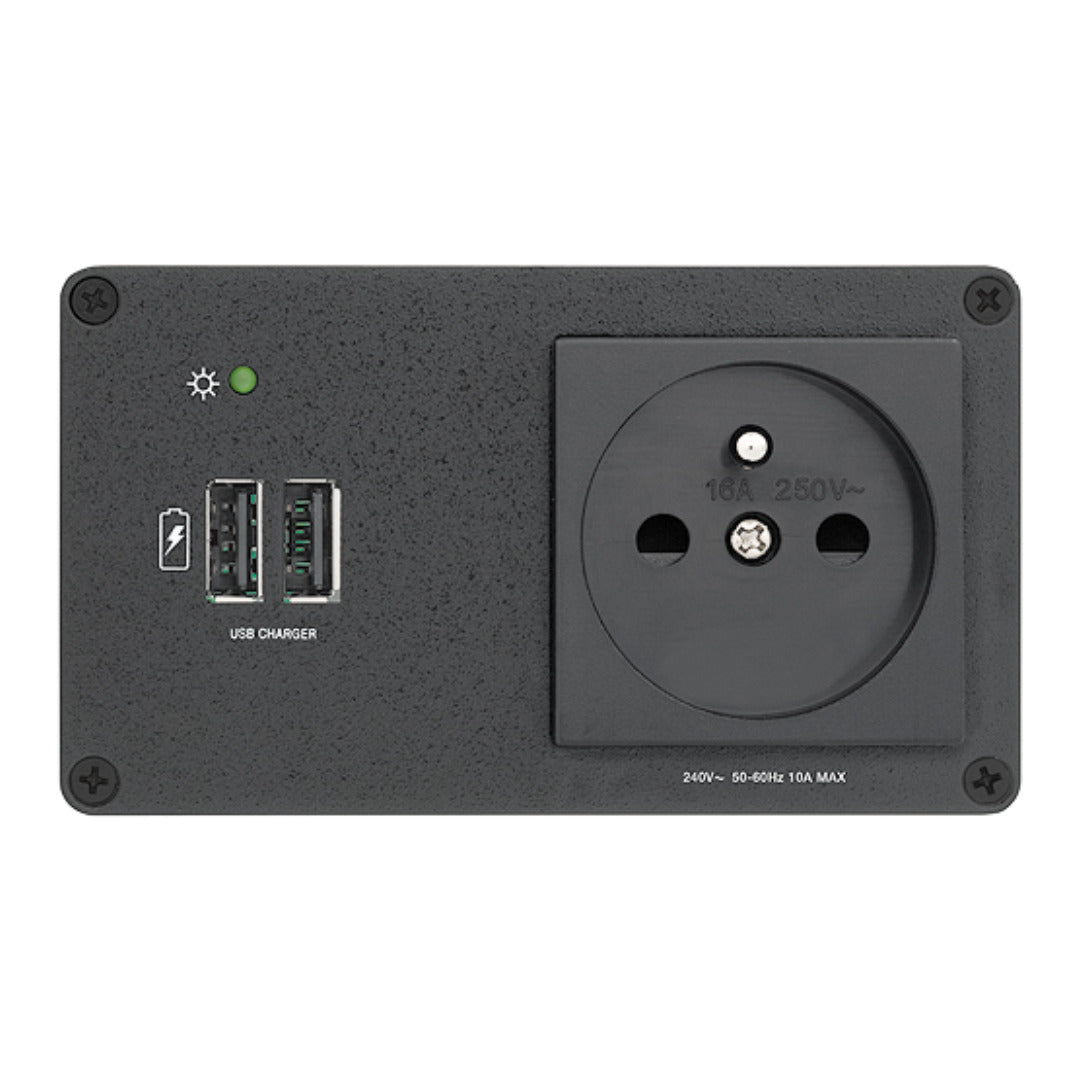

Extron AC+USB 212 FR (part number 60-1384-06) — a Cable Cubby Series power module with one French AC outlet and two USB Type-A charging ports.

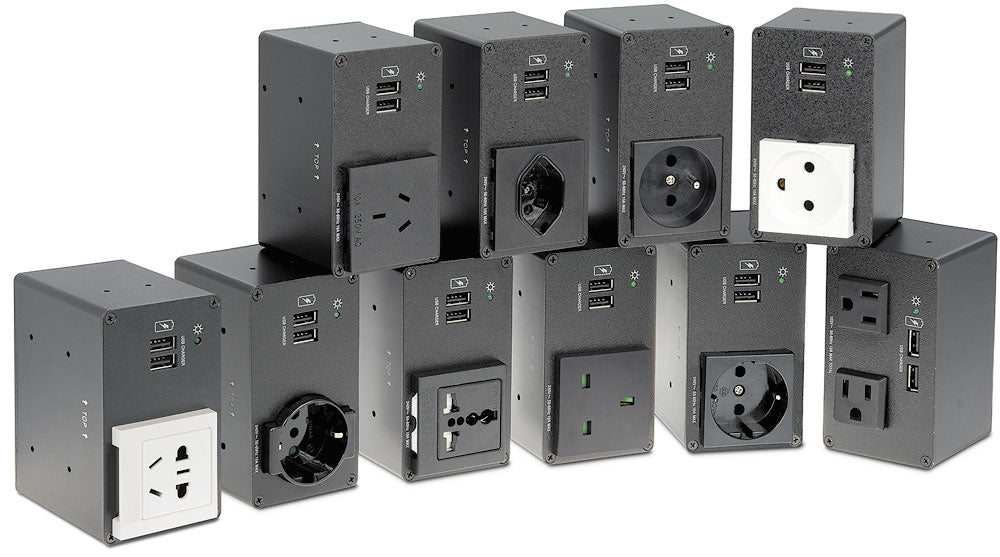

France gets its own socket variant of this module so that installations there need no adapters or improvised wiring. Fitted into a Cable Cubby enclosure, the AC+USB 212 FR gives the table one unswitched French mains outlet for a laptop supply and two USB Type-A ports for phones, tablets and headsets. Mains input is 240 VAC at 50-60 Hz with a 10 A total ceiling; the USB section provides 5 VDC at up to 2.4 A on one port, or up to 3.0 A shared between both. USB power comes from an external Extron supply, keeping the in-table module to 2.99 in of depth.

Key Capabilities

• One unswitched France AC outlet plus two USB Type-A ports
• 240 VAC, 50-60 Hz AC feed rated at 10 A maximum total
• 5 VDC USB output, 2.4 A on one port or 3.0 A shared
• External USB power supply rated 12 VDC at 1.5 A
• Convection cooling, no vents, 8.1 BTU/hr device dissipation
• Metal enclosure, 2.2 lbs (1.0 kg), 2.40 x 4.20 x 2.99 in
• Backed by a 3-year product warranty

Where It Is Used

Typical French deployments include corporate meeting rooms and executive boardrooms, grandes ecoles and university teaching spaces, public-sector conference rooms and hotel event floors, wherever furniture has to supply both mains power and device charging without visible clutter.

Specifications at a Glance

• Outlets: one France AC, two USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB power: 5 VDC, 2.4 A single port, 3.0 A total shared
• Weight: 2.2 lbs (1.0 kg)
• Compliance: CE, c-UL, UL, RoHS, WEEE

Also referenced as Extron ACUSB212FR, AC-USB-212-FR, part number 60138406.
