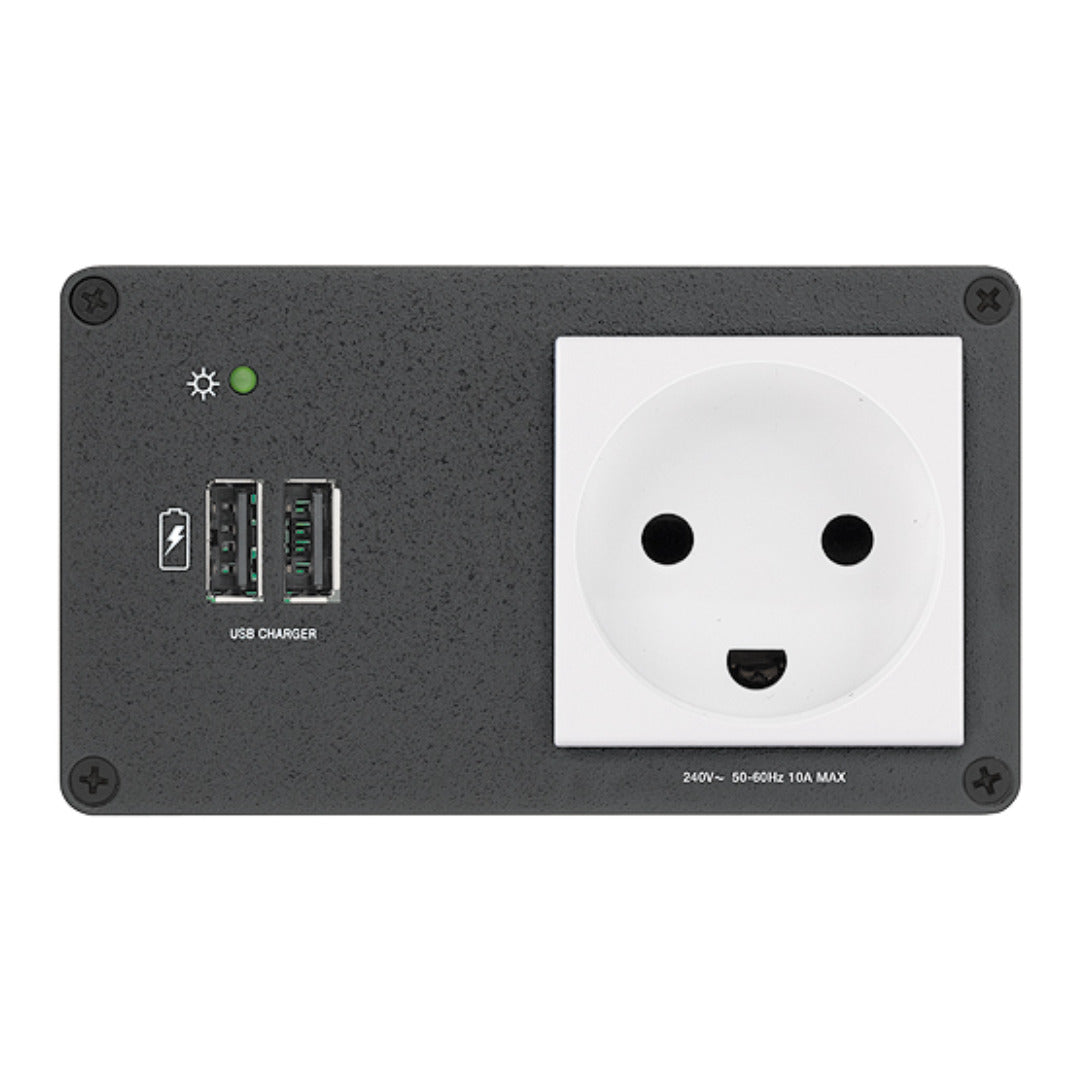

Extron AC+USB 212 DK (part number 60-1384-09) — a Cable Cubby Series power module with one Denmark AC outlet and two USB Type-A charging ports.

Denmark uses a socket format of its own, so Extron produces a Danish variant of its combined AC and USB module rather than leaving installers to improvise. Dropped into a Cable Cubby enclosure, it puts one unswitched Danish mains outlet and two USB Type-A ports at the working surface. Mains supply is 240 VAC at 50-60 Hz with a 10 A total ceiling. USB charging runs at 5 VDC, delivering up to 2.4 A from a single port or up to 3.0 A shared across the pair, powered by an external Extron supply that mounts out of sight beneath the table.

Key Capabilities

• One unswitched Denmark AC outlet plus two USB Type-A ports
• 240 VAC, 50-60 Hz feed rated to 10 A maximum total
• USB delivers 5 VDC, 2.4 A on one port or 3.0 A shared

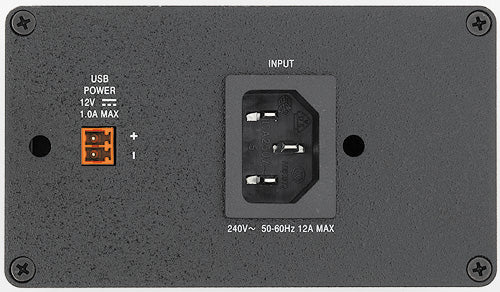

• External supply rated 12 VDC at 1.5 A output
• 17.1 W device consumption, 19.5 W including the supply
• Metal module weighing 2.2 lbs (1.0 kg)
• Convection cooled with no vents in the enclosure

Where It Is Used

Danish integrators specify this module for corporate boardrooms and project rooms, university and gymnasium teaching spaces, municipal and regional council meeting rooms, and conference hotels, wherever in-table power and device charging need to sit behind one discreet Cable Cubby lid.

Specifications at a Glance

• Outlets: one Denmark AC, two USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB power: 5 VDC, 2.4 A single port, 3.0 A total shared
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron ACUSB212DK, AC-USB-212-DK, part number 60138409.
