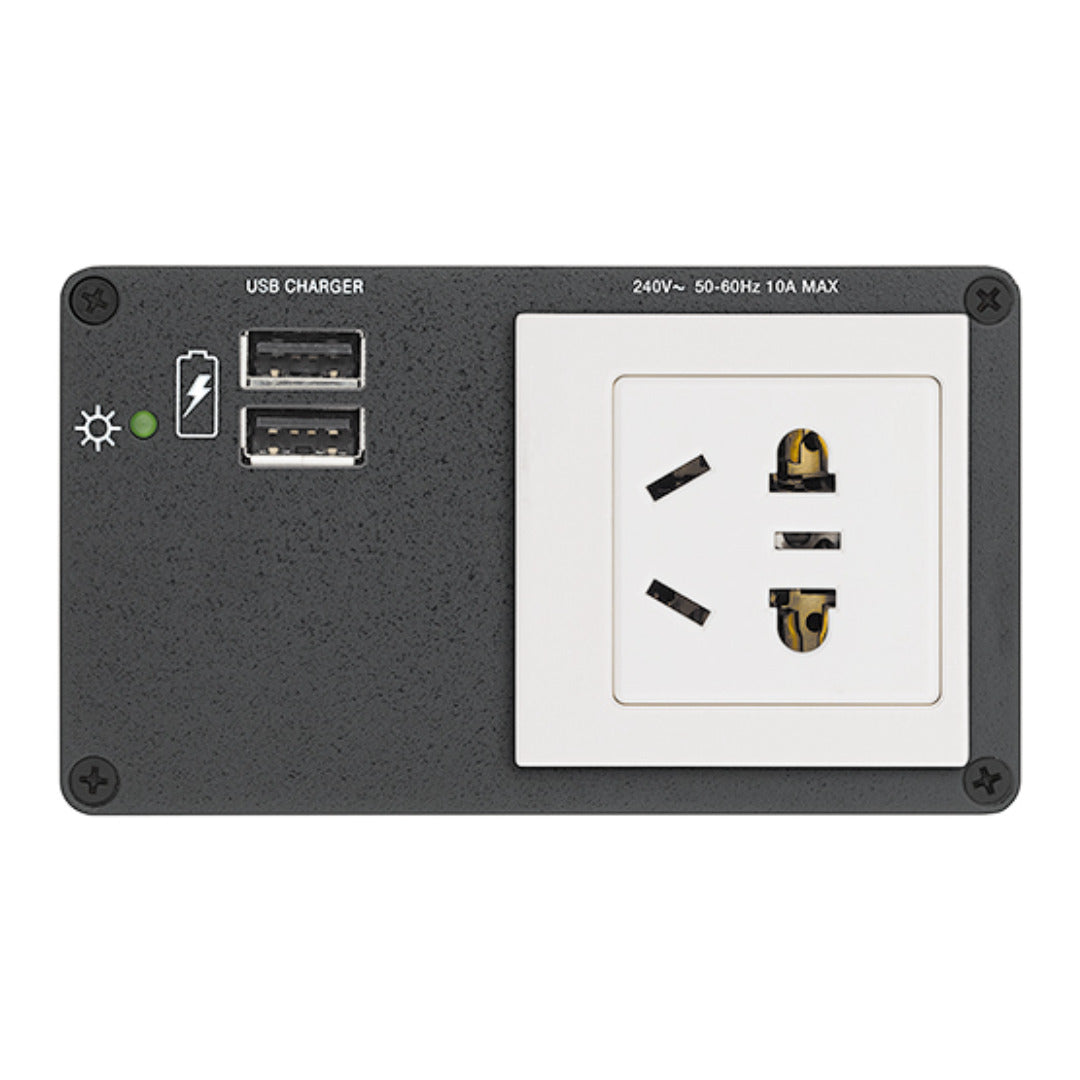

Extron AC+USB 212 CN (part number 60-1384-11) — a Cable Cubby Series power module with one China AC outlet and two USB Type-A charging ports.

Built for the Chinese market, this module brings a single unswitched China-pattern mains outlet and a pair of USB Type-A charging ports up through a Cable Cubby enclosure. That combination handles the two things a modern meeting table has to do: run a notebook power supply and keep everyone's handsets alive. The AC section accepts 240 VAC at 50-60 Hz with a 10 A total maximum. USB output is 5 VDC at up to 2.4 A from one port, or up to 3.0 A shared between the two, drawn from an external Extron power supply mounted below the surface.

Key Capabilities

• One unswitched China AC outlet plus two USB Type-A ports
• 240 VAC, 50-60 Hz input with a 10 A maximum total
• 5 VDC USB, up to 2.4 A per port and 3.0 A total shared

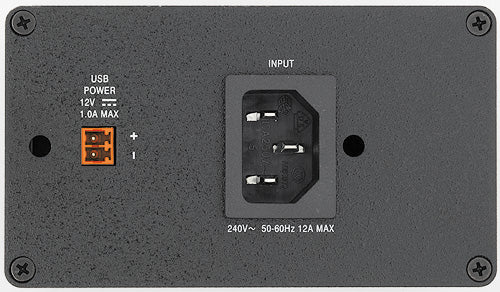

• External USB supply: 100-240 VAC in, 12 VDC 1.5 A out
• Only 16.3 BTU/hr dissipated including the power supply
• Metal enclosure, 2.2 lbs (1.0 kg), 2.99 in deep
• Covered by a 3-year parts and labor warranty

Where It Is Used

This module suits enterprise boardrooms in Beijing, Shanghai and Shenzhen, university lecture theatres and collaborative study spaces, government briefing rooms, and hotel and convention-centre meeting furniture, wherever a Cable Cubby has to deliver locally compliant power plus USB charging.

Specifications at a Glance

• Outlets: one China AC, two USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB power: 5 VDC, 2.4 A single port, 3.0 A total shared
• Weight: 2.2 lbs (1.0 kg)
• Cooling: convection, no vents

Also referenced as Extron ACUSB212CN, AC-USB-212-CN, part number 60138411.
