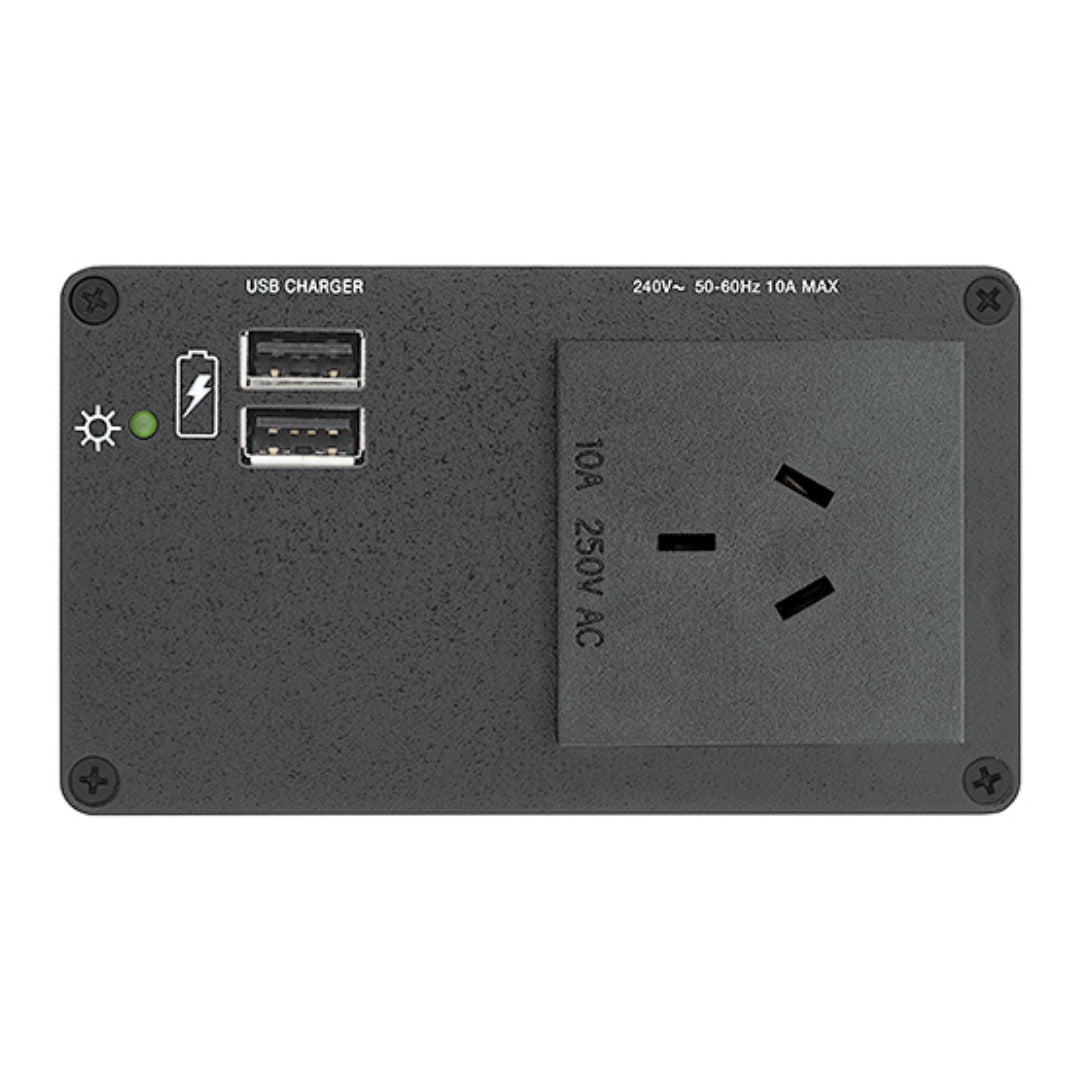

Extron AC+USB 212 AUS (part number 60-1384-04) — a Cable Cubby Series power module offering one Australian AC outlet and two USB Type-A charging ports.

This is the Australian socket version of Extron's combined AC and USB module. It drops into a Cable Cubby enclosure and gives everyone at the table one unswitched Australia-standard mains outlet plus two USB Type-A ports, so a presenter can run a laptop while others charge phones and tablets from the same opening. AC input is 240 VAC at 50-60 Hz with a 10 A maximum across the module. The USB section outputs 5 VDC, allowing up to 2.4 A from a single port and up to 3.0 A shared. As with all non-US versions, an external Extron power supply feeds the USB circuitry.

Key Capabilities

• One unswitched Australia AC outlet plus two USB Type-A ports
• 240 VAC, 50-60 Hz supply with a 10 A maximum total
• USB output of 5 VDC, 2.4 A per port or 3.0 A shared

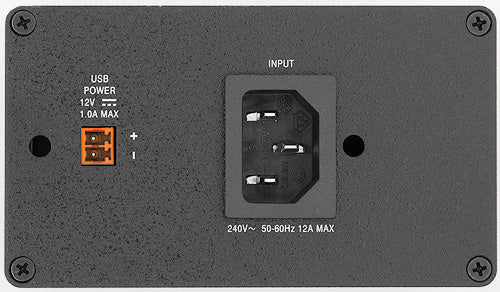

• External USB supply: 100-240 VAC in, 12 VDC 1.5 A out
• Device plus supply consumes 19.5 W in operation
• Metal build, 2.2 lbs (1.0 kg), 2.99 in behind the panel
• 3-year product warranty, 7-year Everlast supply warranty

Where It Is Used

Australian and New Zealand integrators fit this module to conference and huddle tables, tertiary teaching spaces and study booths, government and council meeting rooms and hotel conference facilities, wherever the brief asks for tidy in-table power and device charging together.

Specifications at a Glance

• Outlets: one Australia AC, two USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB power: 5 VDC, 2.4 A single port, 3.0 A total shared
• Enclosure: 2.40 x 4.20 x 2.99 in, metal, 2.2 lbs (1.0 kg)
• Cooling: convection, no vents

Also referenced as Extron ACUSB212AUS, AC-USB-212-AUS, part number 60138404.
