Extron AC Net AAP 70-568-02 EU Black
- • EU black triple-space AAP module: one unswitched AC outlet plus RJ-45 barrel
- • 220-240 VAC, 50-60 Hz, 6 A maximum load for European installations
- • Triple-space AAP fits standard Extron AAP mounting frames
- • Metal isolation enclosure: 1.9 in H x 1.8 in W x 3.0 in D
- • CE, RoHS and WEEE compliant. 3-year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Part number 70-568-02 — EU - Black

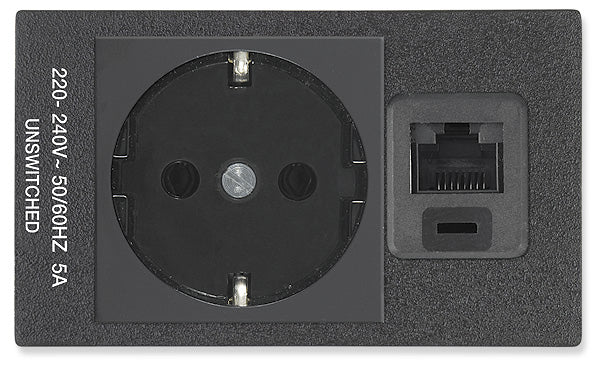

The 70-568-02 supplies one unswitched AC outlet and an RJ-45 female-to-female barrel in a triple-space AAP assembly finished black for EU use. Integrators place the metal module inside standard mounting frames so that a single plate carries both mains power and network pass-through, removing the need for separate distribution boxes.
This version runs on 220-240 V at 50-60 Hz with a 6 A maximum load and ships with a 9 ft cord of 0.29 in outer diameter. The faceplate spans 1.39 in H by 3.50 in W while the enclosure behind it measures 1.9 in H by 1.8 in W by 3.0 in D. It fits optional AAP frames; buyers confirm regional outlet compatibility and required frame size before ordering.
