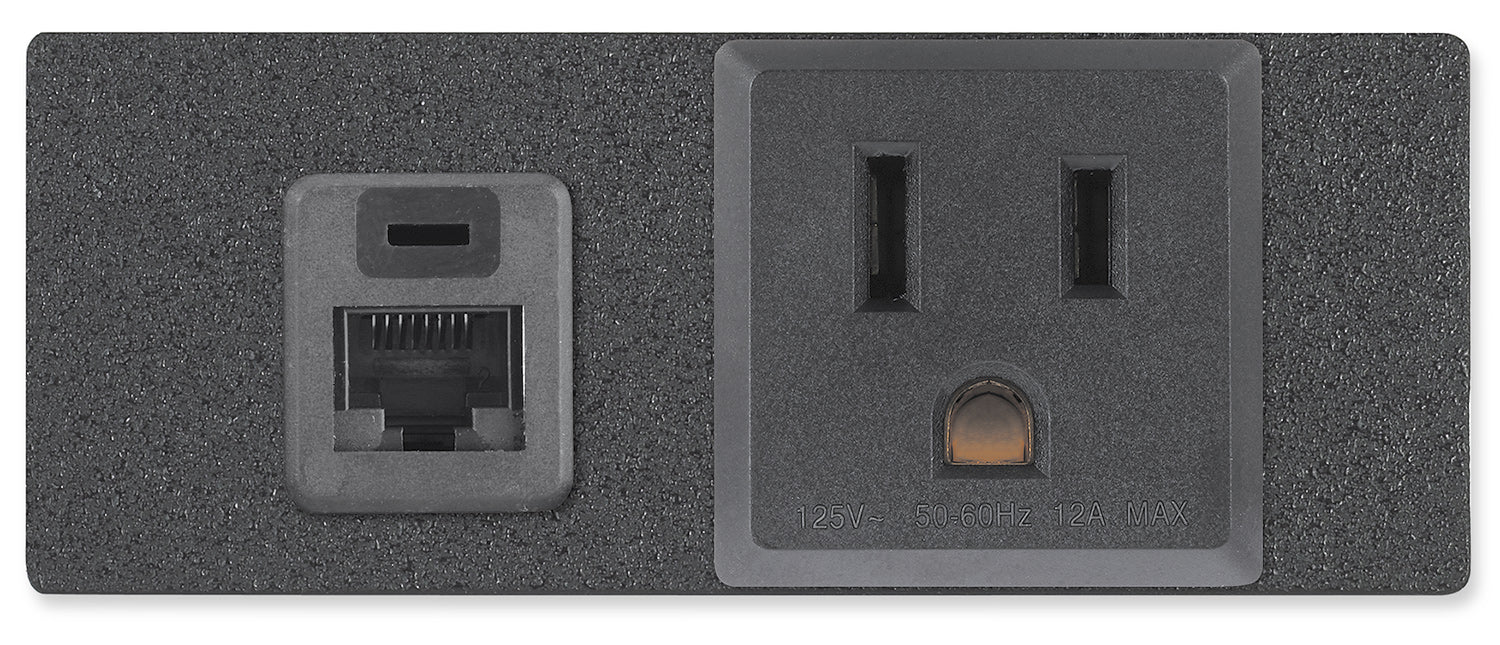

Extron AC Net AAP (part number 60-1934-02) — the US black version: an AAP AV connectivity module carrying one unswitched mains outlet and a wired network pass-through.

Extron builds the AC Net AAP so a furniture panel can hand a presenter both power and a network drop through the same opening. The US build is the compact one: a double-space AAP plate 1.39 inches high by 3.50 inches wide, a metal body behind it, and a nine-foot cord ending in a NEMA 5-15 plug. The outlet is unswitched, so whatever is plugged in stays live with the room's power, and the network side is a straight female-to-female CAT 5e barrel rather than an active port.

Key Capabilities

• One female unswitched AC outlet rated 125 VAC, 50-60 Hz, 12 A maximum
• RJ-45 CAT 5e female-to-female barrel as the network connection point
• Double-space AAP faceplate, 1.39" H x 3.50" W, black finish
• Nine-foot (2.74 m) AC cord, 0.29" outer diameter, NEMA 5-15 P to NEMA 5-15 R

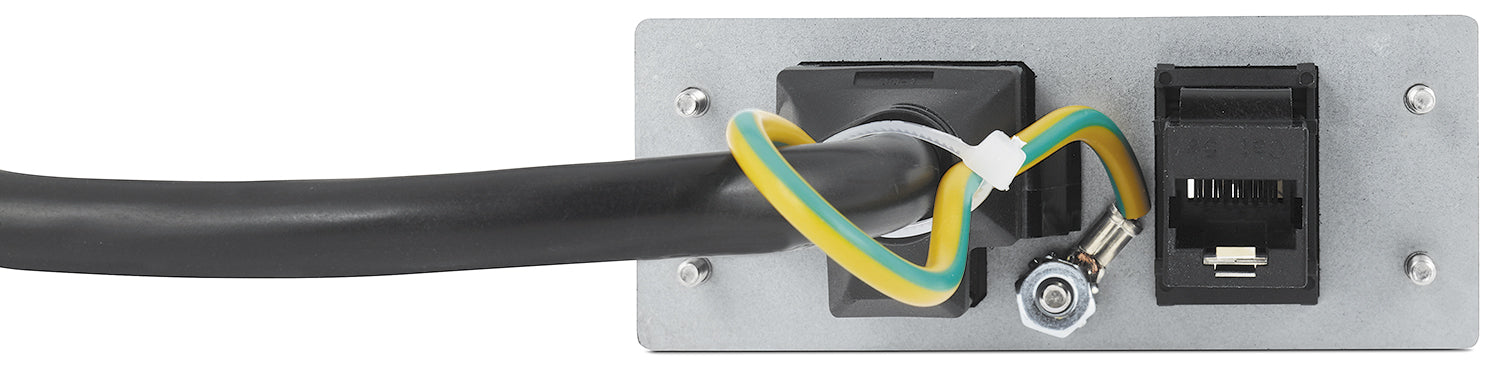

• Metal enclosure that drops into Extron's optional AAP frames
• c-UL and UL listed; 1.1 lb (0.50 kg); 3-year parts and labor warranty

Where It Is Used

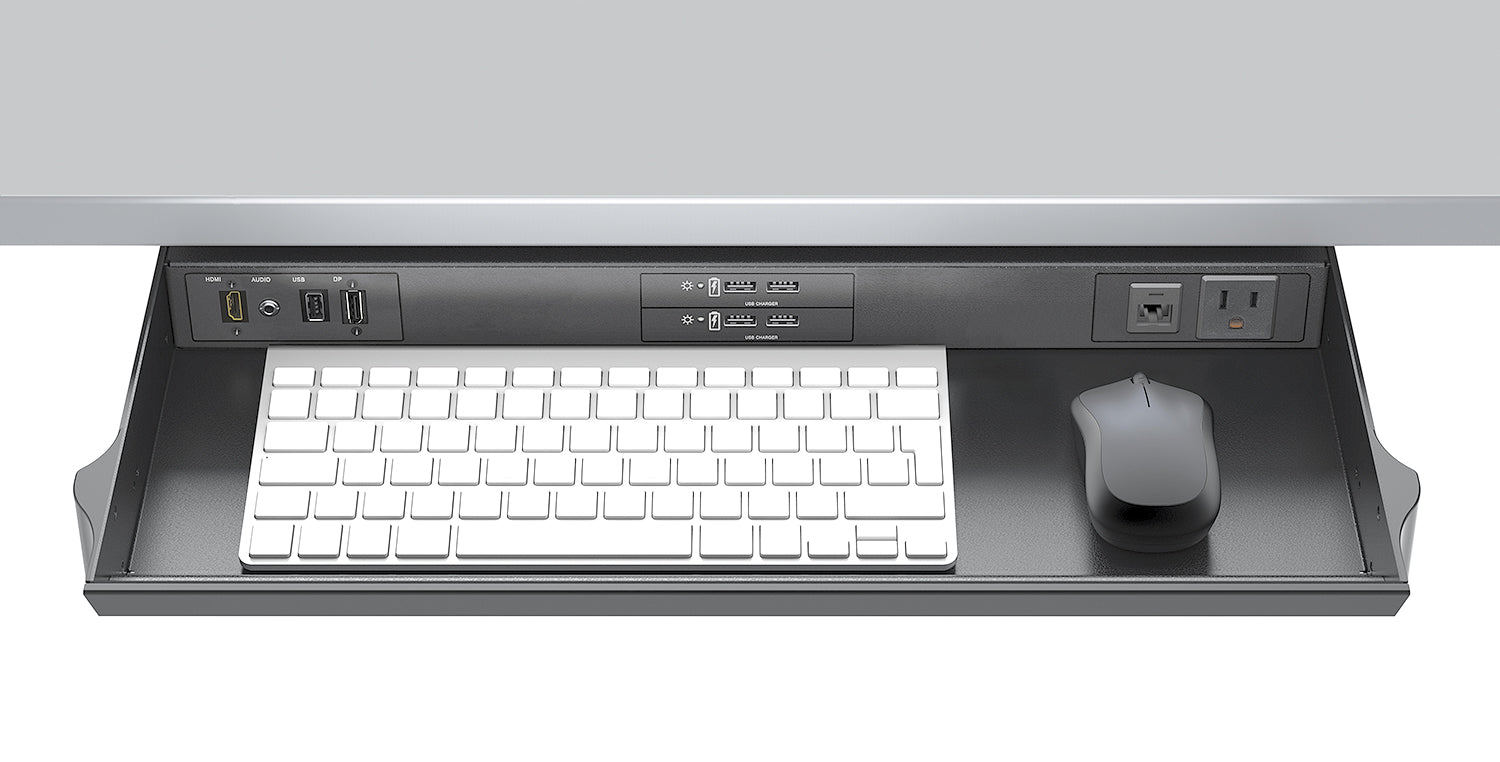

Conference tables, lecterns, teaching walls and huddle-room furniture — anywhere a laptop needs mains power and a hard-wired port without a power strip trailing across the surface. Allow at least 2.77 inches of clear depth behind the plate. Extron requires the module to be fitted only in UL-listed products that accept AAP and MAAP modules, or in a UL-listed junction box using the supplied faceplate.

Specifications at a Glance

• Power: 125 VAC, 50-60 Hz, 12 A max
• Faceplate: 1.39" H x 3.50" W, double-space AAP
• Weight: 1.1 lb (0.50 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron ACNetAAP, AC-Net-AAP, part number 60193402.
