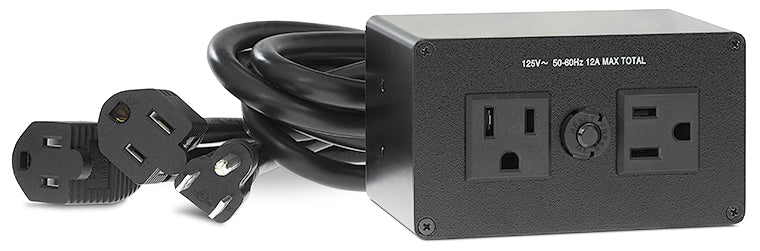

Extron AC 104 US, Cord (part number 60-1889-01) — the current North American cord-connected AC power module for Extron Cable Cubby Series enclosures.

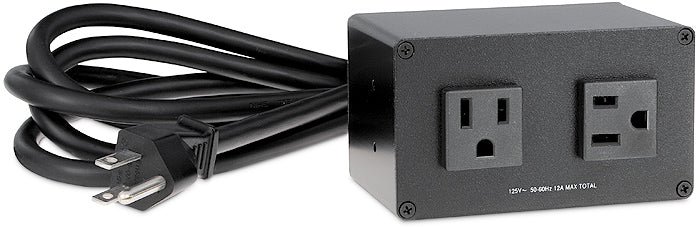

The AC 104 improves on the older two-outlet US module in two ways. First, it adds a 12 A breaker on board, so an overload trips locally instead of taking out the room circuit. Second, alongside the two unswitched outlets at the enclosure face it provides two further outlets underneath the module, which is where installers usually need to power a display, a soundbar or a small switcher hidden below the table. Supply is 125 VAC at 50-60 Hz with a 12 A total maximum, and an attached 9.5 ft (2.9 m) AC power cord reaches a nearby receptacle.

Key Capabilities

• Two unswitched US AC outlets at the Cable Cubby face
• Two additional AC outlets underneath for hidden AV devices
• Integral 12 A breaker protects the module locally
• Attached 9.5 ft (2.9 m) AC power cord
• 125 VAC, 50-60 Hz with a 12 A maximum total draw
• UL and c-UL listed; 1.7 lbs (0.8 kg) in a 2.40 x 4.20 x 2.99 in body

Where It Is Used

Integrators reach for the AC 104 on conference and huddle tables that also have to feed under-surface equipment, plus lecterns, training rooms, medical imaging reading rooms and control-room consoles where a local breaker and a pair of concealed outlets simplify the power design considerably.

Specifications at a Glance

• Outlets: two US AC at the face plus two underneath, 12 A breaker
• Power: 125 VAC, 50-60 Hz, 12 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 1.7 lbs (0.8 kg)
• Regulatory: UL, c-UL, CE, NOM, RoHS, WEEE

Also referenced as Extron AC104US, AC-104-US, part number 60188901.
