Extron AC 104 US, Conduit (part number 60-1889-20) — the hard-wired North American AC power module for Extron Cable Cubby Series enclosures.

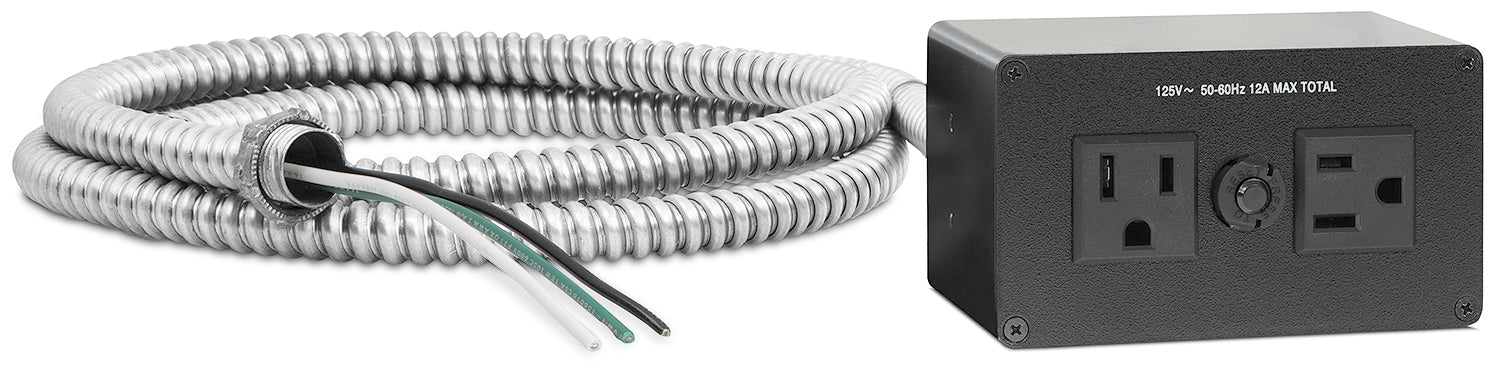

Where the project specification calls for furniture power to be wired rather than plugged in, this is the AC 104 to order. It leaves the chassis with 6 ft (1.83 m) of 3/8 in flexible conduit terminating in a 6 in (15.24 cm) pigtail of three-wire cable, ready for splicing inside a UL listed junction box. The module presents two unswitched US AC outlets at the Cable Cubby face and includes the same 12 A breaker as the cord version, running from a 125 VAC, 50-60 Hz supply. Allow 5.00 in of additional depth behind the panel for the conduit to bend.

Key Capabilities

• Two unswitched US AC outlets with an on-board 12 A breaker
• 6 ft (1.83 m) of 3/8 in flexible conduit for permanent wiring
• 6 in (15.24 cm) three-wire pigtail for junction-box termination
• 125 VAC, 50-60 Hz supply, 12 A maximum total
• Allow 5.00 in of extra depth for the conduit bend radius
• UL and c-UL listed; 1.6 lbs (0.7 kg)

Where It Is Used

This variant belongs in permanent millwork: courtroom benches, hospital and clinical conference rooms, government and university facilities, secure command centres and corporate headquarters where electrical code or the consultant's specification requires a hard-wired connection back to the building circuit.

Specifications at a Glance

• Outlets: two unswitched US AC, 12 A breaker
• Feed: 6 ft (1.83 m) of 3/8 in flexible conduit with 6 in pigtail
• Power: 125 VAC, 50-60 Hz, 12 A max total
• Weight: 1.6 lbs (0.7 kg)
• Regulatory: UL, c-UL, CE, NOM, RoHS, WEEE

Also referenced as Extron AC104US, AC-104-US, part number 60188920.
