Extron AC 102 US (part number 60-1385-01) — the North American two-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

Boardroom tables are where laptops die. This module fixes that by putting two unswitched 125 V outlets inside the Cable Cubby enclosure already cut into the surface, so power arrives at the seat rather than at a baseboard receptacle. Rated for 125 VAC at 50-60 Hz with a 12 A total maximum, it carries a higher current ceiling than the 240 V export versions of the same chassis. The US model uses an attached AC power cord, so plan on an extra 2.50 in of clearance behind the panel to accommodate the cord bend radius.

Key Capabilities

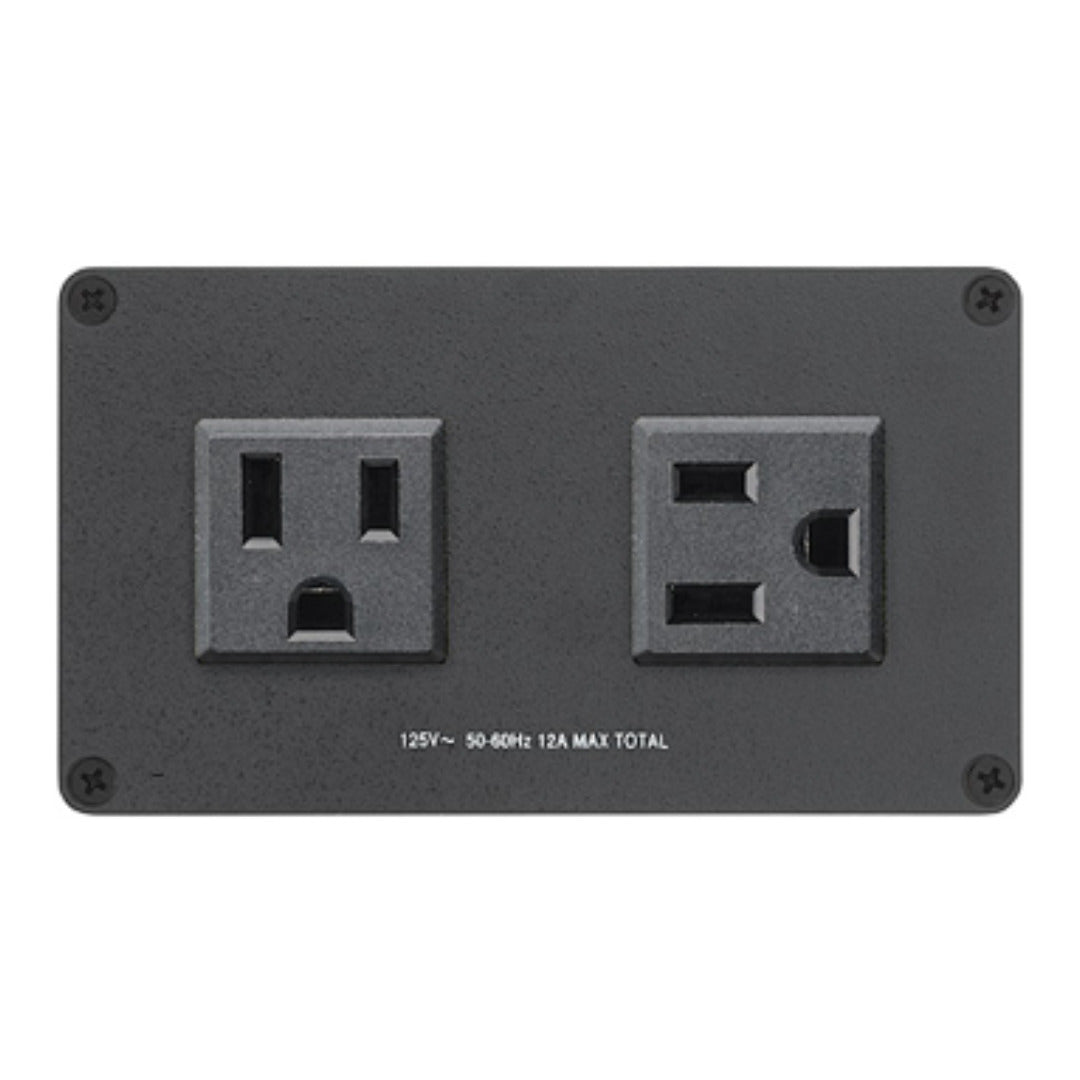

• Two unswitched US AC outlets in a single Cable Cubby power bay
• 125 VAC, 50-60 Hz supply with a 12 A maximum total draw
• UL and c-UL listed for North American installations

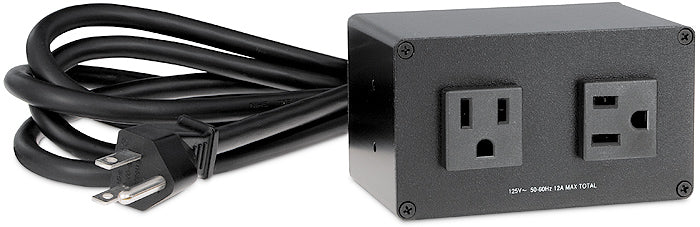

• Attached AC cord; allow 2.50 in of extra depth for the bend radius
• Cold-rolled steel face panel over an extruded aluminum body
• Weighs 1.7 lbs (0.8 kg) in a 2.40 x 4.20 x 2.99 in chassis

Where It Is Used

This is a standard fitting in US and Canadian corporate boardrooms, huddle spaces and training rooms, university lecterns and seminar tables, hospital and medical imaging conference suites, and command and control desks — anywhere a Cable Cubby enclosure has to combine mains power with AV connectivity in one cutout.

Specifications at a Glance

• Outlets: two unswitched US AC
• Power: 125 VAC, 50-60 Hz, 12 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 1.7 lbs (0.8 kg)
• Regulatory: UL, c-UL, CE, NOM, RoHS, WEEE

Also referenced as Extron AC102US, AC-102-US, part number 60138501.
