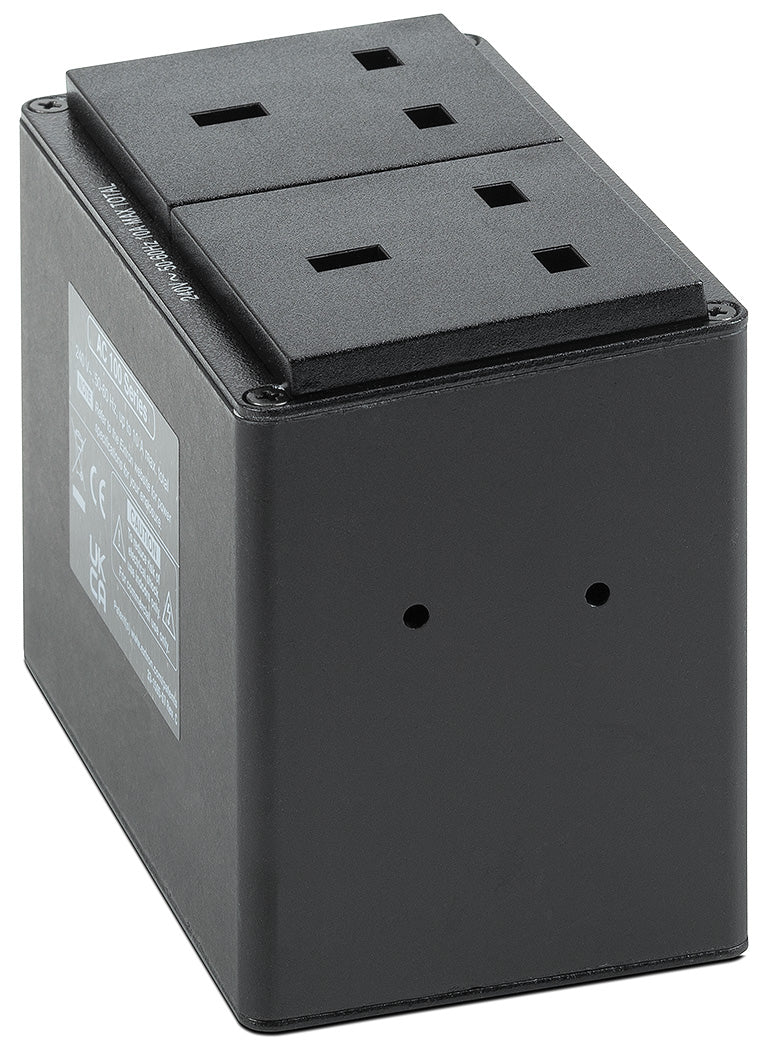

Extron AC 102 UK (part number 60-1385-02) — the United Kingdom two-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

British meeting rooms need UK-pattern sockets at the table, not a four-way block trailing across the carpet. This module drops into the power bay of a Cable Cubby enclosure and presents two unswitched UK mains outlets flush with the surface, so laptops and chargers connect where people sit. The module works from a 240 VAC, 50-60 Hz supply and allows a combined draw of 10 A. Because the AC lead is detachable rather than moulded in place, the installer picks a cord length that matches the route through the furniture.

Key Capabilities

• Two unswitched UK AC outlets from a single Cable Cubby module
• 240 VAC, 50-60 Hz feed with a 10 A maximum total load
• Detachable mains cord for tidy under-table cable management
• Cold-rolled steel face panel over an extruded aluminium body
• 0.8 lbs (0.4 kg), needing 2.99 in of depth behind the panel
• Rated to run continuously from 0 to +50 degrees C

Where It Is Used

UK integrators use this module in corporate boardrooms and huddle rooms, university lecture theatres and seminar rooms, NHS and local-authority meeting spaces, and hotel conference suites — wherever a Cable Cubby enclosure must deliver mains power and AV connectivity through one opening in a table or lectern.

Specifications at a Glance

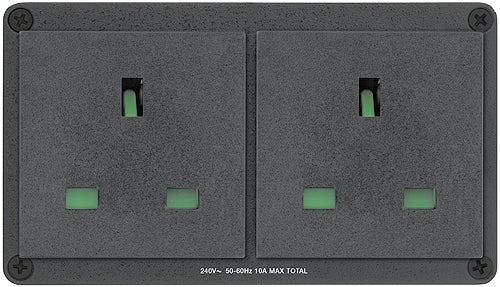

• Outlets: two unswitched UK AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Compliance: CE, NOM, RoHS, WEEE

Also referenced as Extron AC102UK, AC-102-UK, part number 60138502.
