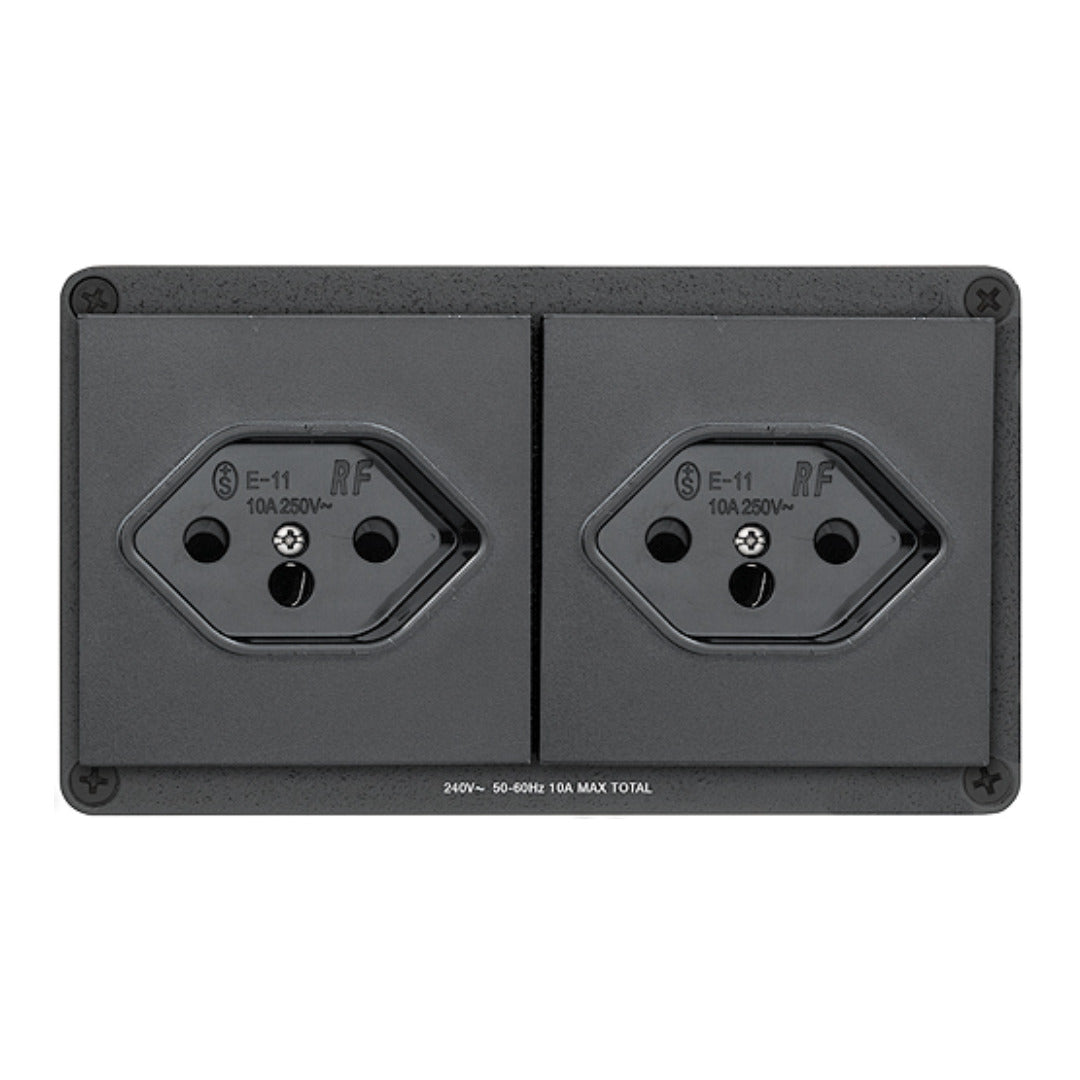

Extron AC 102 SW (part number 60-1385-05) — a Switzerland-standard dual AC outlet module for Extron Cable Cubby Series cable access enclosures.

Switzerland uses its own socket format, so Extron produces a dedicated Swiss version of the AC 100 power module rather than expecting installers to improvise. Fitted into a Cable Cubby enclosure, the AC 102 SW brings two unswitched Swiss mains outlets up to the working surface, keeping charger bricks and laptop supplies off the floor and out of the walkway. It draws from a 240 VAC, 50-60 Hz supply and permits 10 A across the pair of outlets. The mains lead detaches, so cord length becomes an installation decision rather than a constraint.

Key Capabilities

• Two unswitched Switzerland AC outlets in a single power bay
• 240 VAC, 50-60 Hz feed rated to 10 A maximum total
• Detachable AC cord routes cleanly through table cavities
• Extruded aluminium body with a cold-rolled steel face panel
• Light 0.8 lbs (0.4 kg) unit, 2.40 x 4.20 x 2.99 in overall
• CE, NOM, RoHS and WEEE compliant

Where It Is Used

Swiss integrators specify this module for banking and corporate boardrooms, university and research-institute seminar rooms, cantonal government meeting spaces and conference hotels, wherever a Cable Cubby enclosure must supply locally compliant mains power alongside AV connectivity from one surface cutout.

Specifications at a Glance

• Outlets: two unswitched Switzerland AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Mounting: fits Cable Cubby enclosures

Also referenced as Extron AC102SW, AC-102-SW, part number 60138505.
