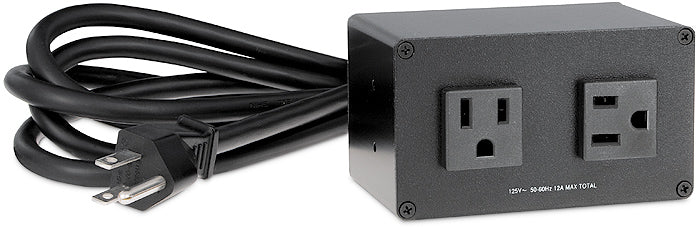

Extron AC 102 JP (part number 60-1385-12) — the PSE-certified Japanese two-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

Japan runs on a lower mains voltage than most of the world, and equipment sold there must carry PSE certification. Extron addresses both with this dedicated JP module. Fitted into a Cable Cubby enclosure, it presents two unswitched Japanese AC outlets at the working surface and operates from 125 VAC at 50-60 Hz with a 12 A total maximum — a higher current ceiling than the 240 V versions of the same module. Unlike the detachable-cord export models, the JP unit uses an attached AC power cord, so allow an extra 2.50 in of depth behind the panel for the cord bend radius.

Key Capabilities

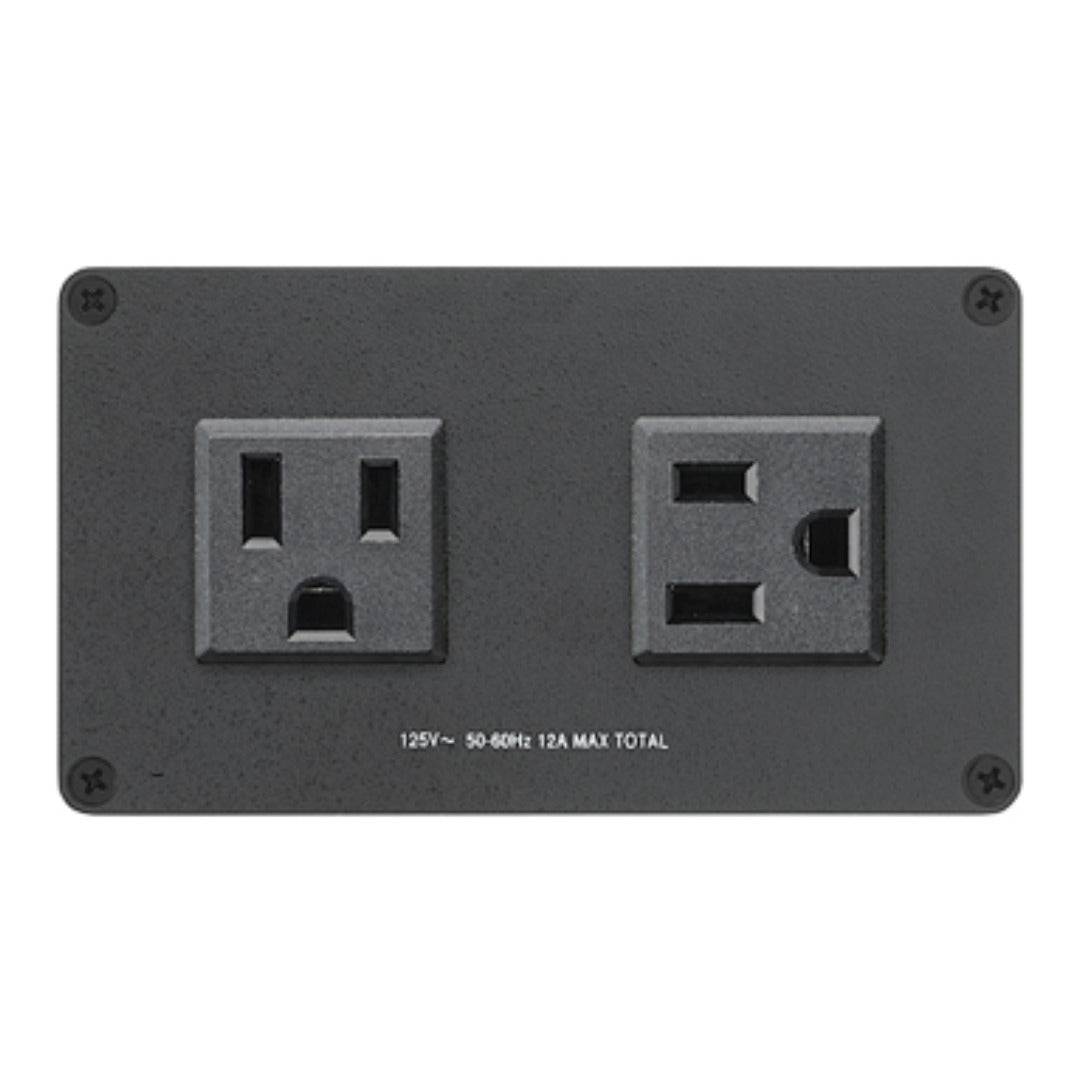

• Two unswitched Japan AC outlets in one Cable Cubby power bay
• 125 VAC, 50-60 Hz with a 12 A maximum total draw
• PSE certified for sale and use in Japan
• Attached AC cord; allow 2.50 in extra depth for the bend radius
• Cold-rolled steel face panel over an extruded aluminium body
• Weighs 1.7 lbs (0.8 kg) in a 2.40 x 4.20 x 2.99 in chassis

Where It Is Used

This is the module Japanese integrators specify for corporate boardrooms in Tokyo and Osaka, university lecture halls, government and municipal meeting rooms, broadcast facilities and hotel conference floors, wherever a Cable Cubby enclosure must supply PSE-compliant mains power alongside AV connectivity.

Specifications at a Glance

• Outlets: two unswitched Japan AC
• Power: 125 VAC, 50-60 Hz, 12 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 1.7 lbs (0.8 kg)
• Regulatory: PSE, CE, NOM, RoHS, WEEE

Also referenced as Extron AC102JP, AC-102-JP, part number 60138512.
