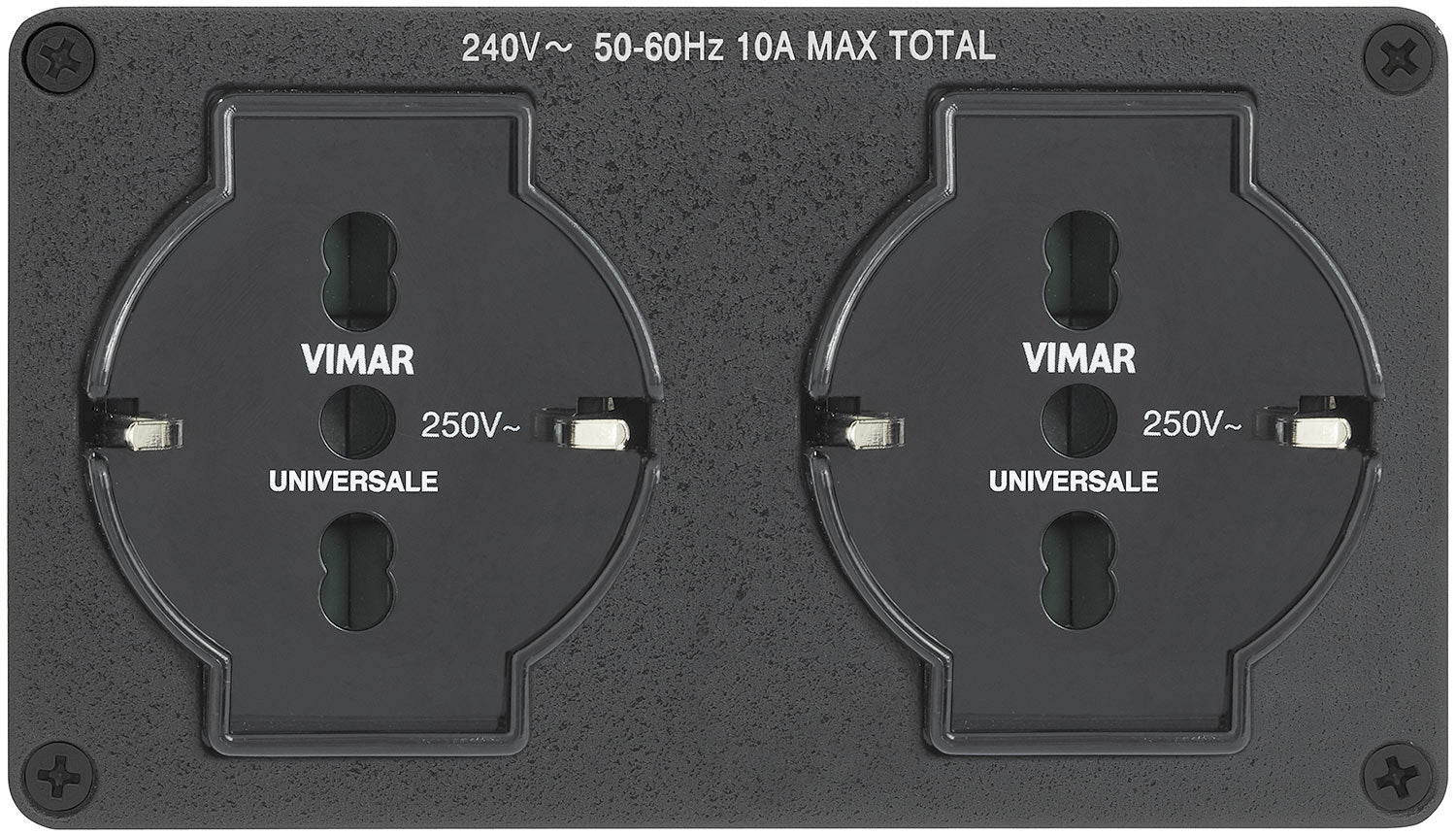

Extron AC 102 IT (part number 60-1385-07) — an Italy-standard dual AC outlet module for Extron Cable Cubby Series cable access enclosures.

Italian meeting spaces call for their own socket format, and Extron builds this version of the AC 100 module specifically for them. Slotted into the power bay of a Cable Cubby enclosure, the AC 102 IT raises two unswitched Italian mains outlets to the table surface so that notebook supplies plug in where people actually work. The electrical rating is 240 VAC at 50-60 Hz with a combined maximum of 10 A. A detachable AC lead means the cable length is set during installation to suit the run through the furniture.

Key Capabilities

• Two unswitched Italy AC outlets fed from one Cable Cubby module
• 240 VAC, 50-60 Hz supply with 10 A maximum combined draw
• Detachable mains cord chosen to suit the installation
• Cold-rolled steel face panel on an extruded aluminium body
• 0.8 lbs (0.4 kg) and 2.99 in deep behind the front panel
• Operates from 0 to +50 degrees C, 10 to 90 percent humidity

Where It Is Used

Look for this module in Italian corporate boardrooms, university lecture halls, public-sector meeting rooms, hotel conference floors and custom AV joinery — anywhere a Cable Cubby enclosure has to present both mains power and AV connectivity through one discreet opening in a table or lectern.

Specifications at a Glance

• Outlets: two unswitched Italy AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Compliance: CE, NOM, RoHS, WEEE

Also referenced as Extron AC102IT, AC-102-IT, part number 60138507.
