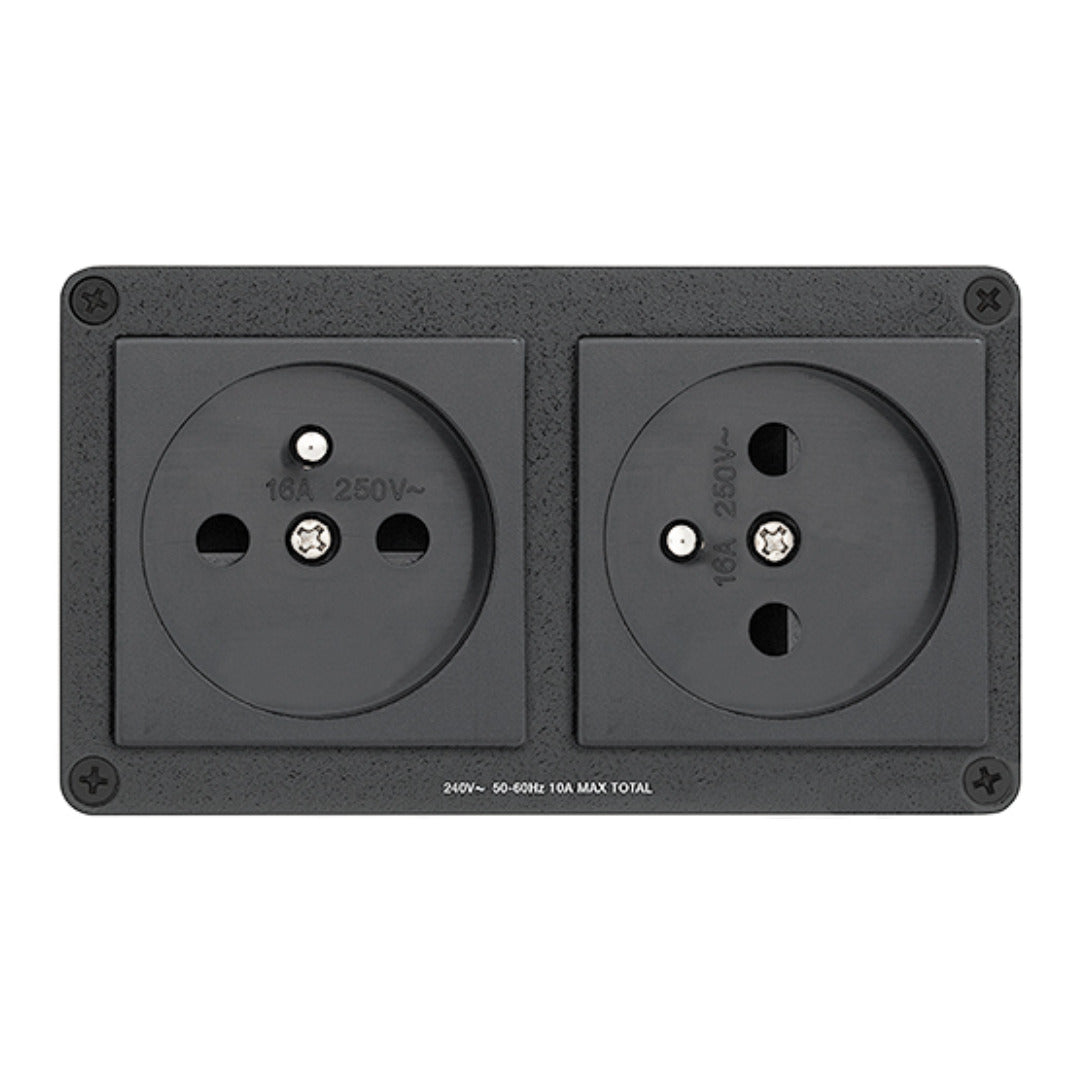

Extron AC 102 FR (part number 60-1385-06) — a French-pattern dual AC outlet module for Extron Cable Cubby Series cable access enclosures.

French sockets differ from the general European pattern, which is why Extron builds a dedicated France version of this module. The AC 102 FR fits the Cable Cubby power bay and provides two unswitched French mains outlets flush with the enclosure, placing power exactly where delegates and presenters need it. The module operates on 240 VAC at 50-60 Hz and accepts up to 10 A across both sockets together. Its AC lead is detachable, which gives the installer freedom to match cord length to the cable path inside the table or podium.

Key Capabilities

• Two unswitched France AC outlets from one Cable Cubby module
• 240 VAC, 50-60 Hz input rated at 10 A maximum total
• Detachable mains cord sized by the installer, not the factory
• Extruded aluminium body paired with a cold-rolled steel face panel
• 0.8 lbs (0.4 kg) module measuring 2.40 x 4.20 x 2.99 in
• Storage rated from -40 to +158 degrees F

Where It Is Used

Integrators across France and francophone markets fit this module into conference-table and lectern builds for corporate headquarters, grandes ecoles and universities, government meeting rooms and hotel event spaces, wherever a Cable Cubby enclosure has to combine locally compliant power with AV connectivity in one neat cutout.

Specifications at a Glance

• Outlets: two unswitched France AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Mounting: fits Cable Cubby enclosures

Also referenced as Extron AC102FR, AC-102-FR, part number 60138506.
