Extron AC 102 BR (part number 60-1385-13) — a Brazil-standard dual AC outlet module for Extron Cable Cubby Series cable access enclosures.

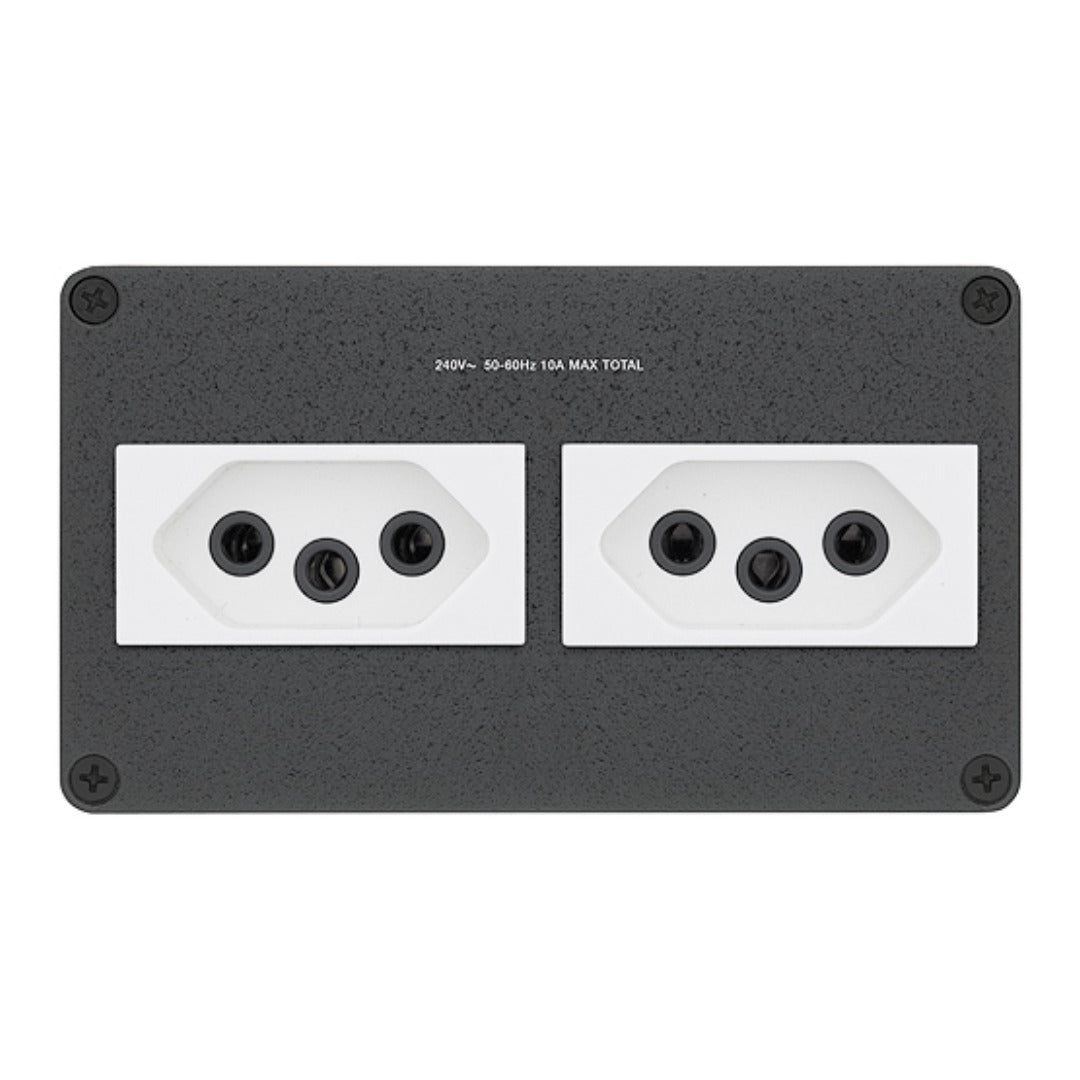

This is the power half of a Cable Cubby build for installations in Brazil. The AC 102 BR slides into the enclosure's power bay and presents two unswitched Brazilian mains sockets flush at the table or lectern surface, keeping laptop supplies and charger bricks off the floor and out of walkways. Electrical rating is 240 VAC at 50-60 Hz with a 10 A ceiling shared across the pair of outlets. A detachable mains lead means the cable run can be sized to the furniture rather than to whatever cord came in the box.

Key Capabilities

• Two unswitched Brazil AC outlets presented at the work surface
• 240 VAC, 50-60 Hz supply with 10 A maximum combined load

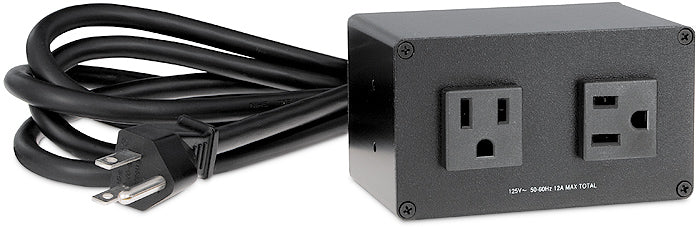

• Detachable power cord for flexible routing through table cavities
• Extruded aluminium body with a cold-rolled steel face panel
• Light 0.8 lbs (0.4 kg) module in a 2.40 x 4.20 x 2.99 in footprint
• CE, NOM, RoHS and WEEE compliant

Where It Is Used

Typical homes for this module are corporate boardrooms, hotel and conference-centre meeting tables, higher-education lecterns and training suites in Brazil, plus any custom AV furniture where a Cable Cubby enclosure must combine local mains power with signal connectivity in one tidy cutout.

Specifications at a Glance

• Outlets: two unswitched Brazil AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron AC102BR, AC-102-BR, part number 60138513.
