Extron AC 102 AUS (part number 60-1385-04) — a two-outlet Australian mains power module built for Extron Cable Cubby Series cable access enclosures.

Meeting tables almost never have power where the presenter actually sits. Dropping an AC 102 AUS into the power bay of a Cable Cubby enclosure puts two unswitched Australia-standard sockets at the table surface, so laptops and device chargers connect without leads running to a floor box. The module accepts 240 VAC at 50-60 Hz and carries up to 10 A across both outlets combined. Because the mains lead is detachable rather than captive, the installer chooses a cord length that suits the cable path through the furniture.

Key Capabilities

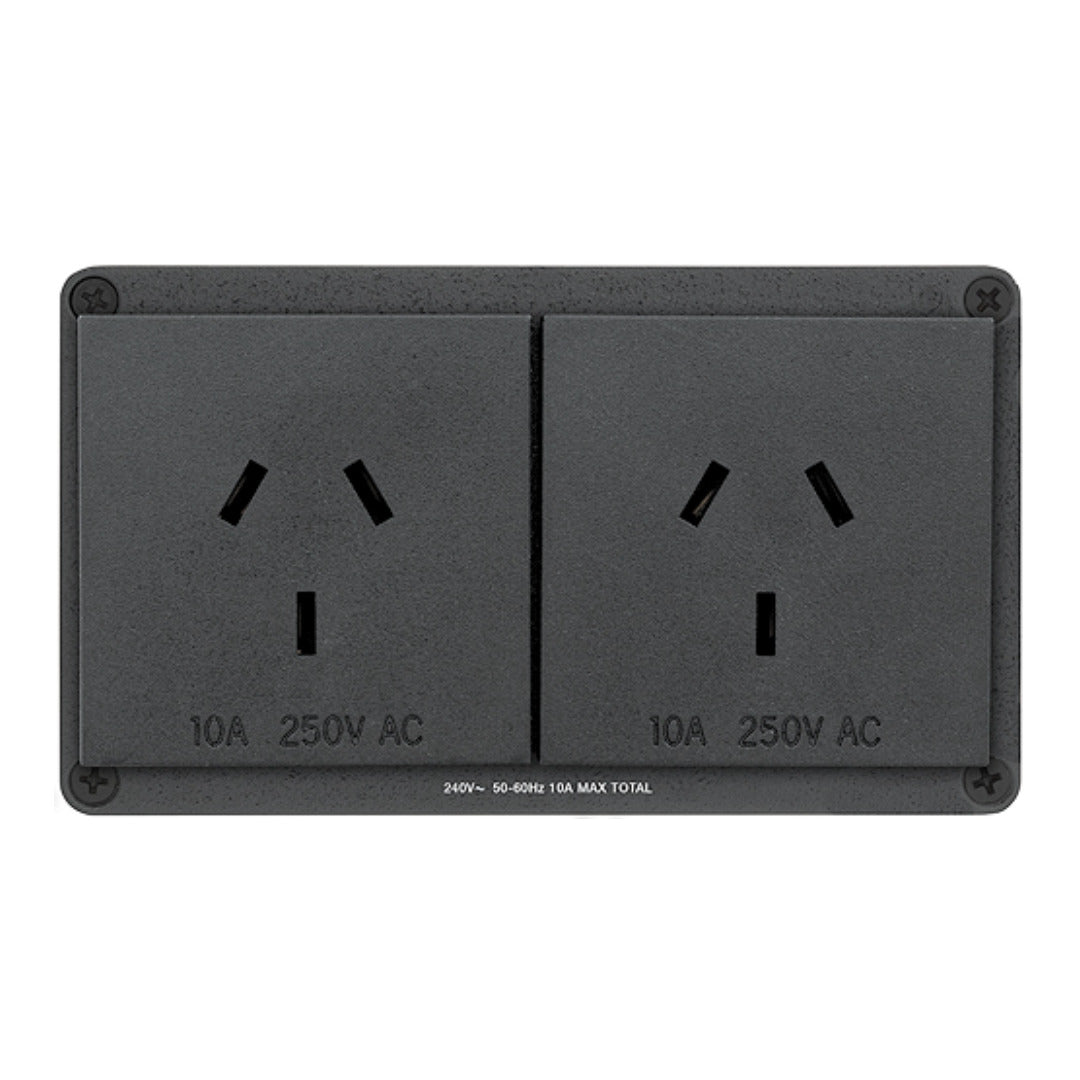

• Two unswitched Australia AC outlets in a single Cable Cubby power bay
• 240 VAC, 50-60 Hz input rated for 10 A maximum total draw
• Detachable mains cord so lead length matches the furniture run
• Cold-rolled steel face panel over an extruded aluminium body
• Slim 2.40 in H x 4.20 in W x 2.99 in D chassis weighing 0.8 lbs (0.4 kg)
• Rated for continuous duty between 0 and +50 degrees C

Where It Is Used

Integrators specify this module for boardroom and huddle-room tables, university lecterns, training rooms and briefing centres across Australia and New Zealand — anywhere a Cable Cubby enclosure has to supply local mains power alongside AV connectivity, and anywhere trailing extension leads would spoil the look of the furniture.

Specifications at a Glance

• Outlets: two unswitched Australia AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Compliance: CE, NOM, RoHS, WEEE

Also referenced as Extron AC102AUS, AC-102-AUS, part number 60138504.
