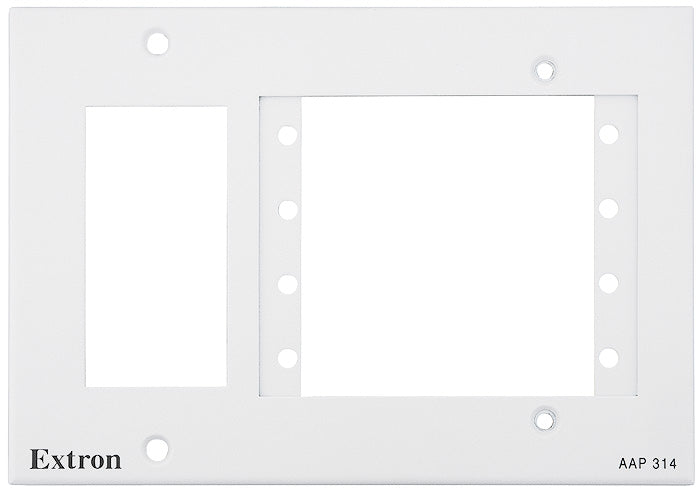

Extron AAP 314 (part number 70-1069-03) — a white three-gang AV connectivity mounting frame for decorator-style and AAP modules.

Rooms rarely need just one kind of connector. The AAP 314 solves that by combining two different opening styles in a single three-gang frame: one opening sized for a decorator-style module such as an Extron wallplate transmitter, and a second opening that takes up to four single-space AAP AV Connectivity Modules. That means video, audio, network and control connectors can all surface through one cutout instead of three separate plates scattered across a wall or lectern face. The frame mounts directly to a wall, lectern or other flat surface, and a mud ring is supplied for finishing into drywall.

Key Capabilities

• One opening for a decorator-style module
• Second opening for up to four single-space AAP modules
• Mounts directly to a wall, lectern or other flat surface
• Compatible with the SMB 103 surface mount box and EWB 103 wall box
• Mud ring included for clean drywall finishing
• Supplied with #6-32 mounting screws in 1/2 in and 1/4 in lengths
• White finish suits most light wall and lectern surfaces

Where It Is Used

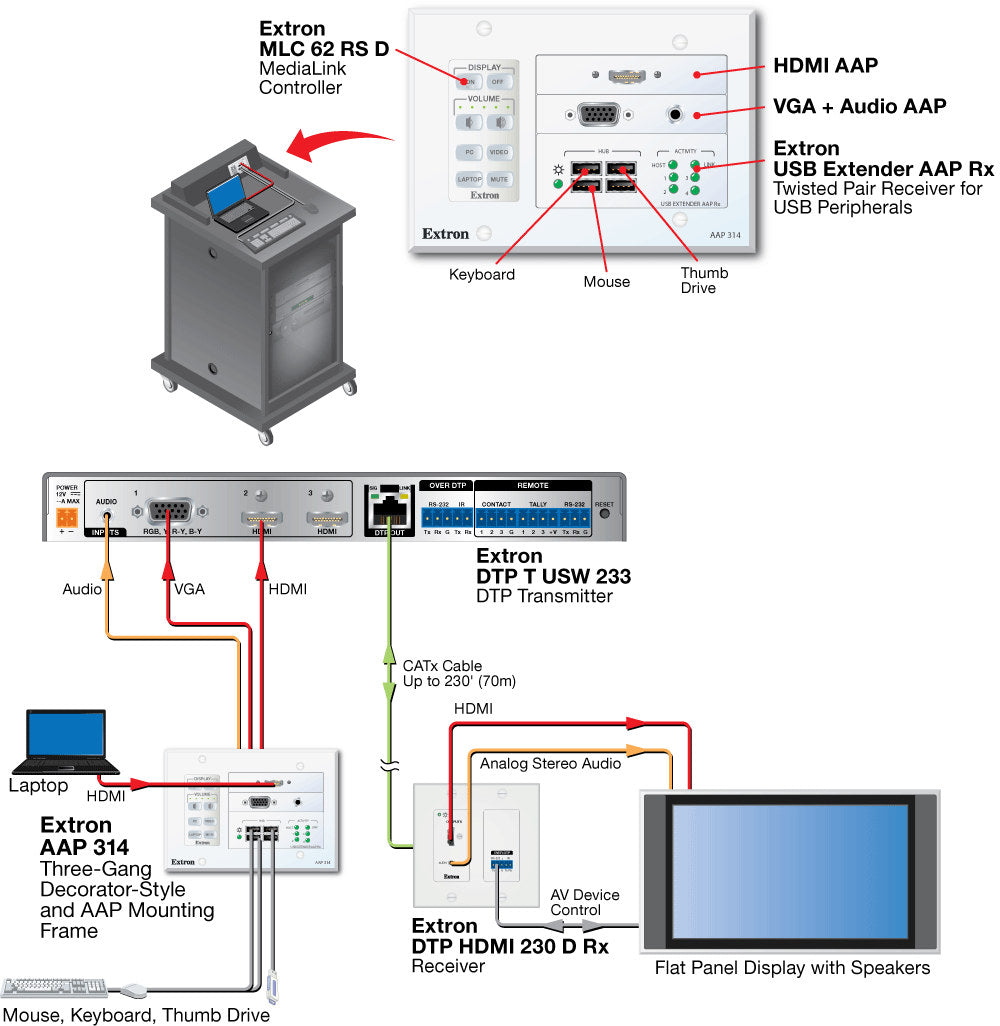

Specified in classrooms and lecture theatres, conference and boardrooms, huddle spaces, training suites and lectern builds, wherever a single tidy opening has to carry a wallplate transmitter alongside a handful of AV, audio or network connectors rather than several separate plates.

Specifications at a Glance

• Frame size: three-gang
• Openings: one decorator-style module, up to four single-space AAPs
• Finish: white
• Included: mud ring and mounting screws
• Box compatibility: SMB 103, EWB 103

AAP modules and decorator-style modules are ordered separately. Extron currently lists 70-1069-03 under discounted stock, so confirm availability before specifying it.

Also referenced as Extron AAP314, AAP-314, part number 70106903.
