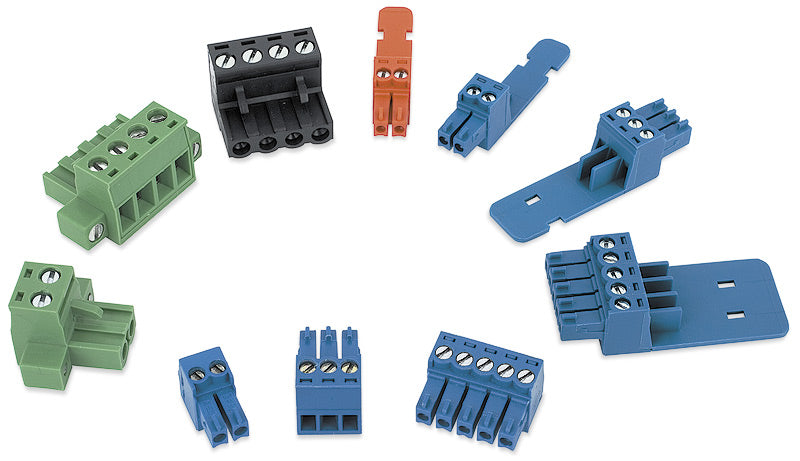

Extron 5.0 mm, 4 pole, green, screw lock (part number 100-464-01) is the four-position screw locking captive screw connector on Extron's 5.0 mm pitch, packed ten to a bag.

Four positions on the wide pitch usually means a stereo speaker pair or a two-circuit power block, and the screw lock feature keeps that connection mechanically held rather than relying on friction alone. On equipment that travels, or on ceiling runs where cable weight tugs at the plug, that difference shows up as fewer intermittent faults. Heavier conductors are welcome here: the terminals accept wire well outside what the 3.5 mm parts can clamp.

Key Capabilities

• Four positions on Extron's 5.0 mm captive screw contact pitch.
• Screw lock design holds the plug in its block against vibration and cable pull.
• Clamps 12 to 22 AWG conductors under individual captive screws.
• Built for amplified loudspeaker output and power distribution runs.
• Green housing separates it from black 5.0 mm plugs at a glance.
• Ten pieces per package for amplifier rack builds and spares kits.

Where It Is Used

Amplifier and DSP racks, distributed ceiling and pendant loudspeaker systems, powered signage and display cabinets, mobile AV carts and flypacks, control rooms, and medical imaging or clinical display suites - anywhere an Extron amplifier or power product uses a four-position 5.0 mm block that must stay put.

Wiring Notes

Follow Extron's captive screw wiring guidance: about 3/16 in (5 mm) of bare conductor is the mark. Longer, and adjacent contacts can touch; shorter, and the wire may pull free even with the screws driven home. Leave the ends untinned, since tinned strands lose shape and the joint loosens. Secure the locking screws after all four conductors are seated and torqued.

Specifications at a Glance

• Contact pitch: 5.0 mm
• Poles: 4
• Housing colour: green
• Retention: screw lock
• Wire range: 12-22 AWG
• Package quantity: 10

Also referenced as Extron 5.0 mm 4 pole green screw lock, 5-0-mm-4-pole-green-screw-lock, part number 10046401.
