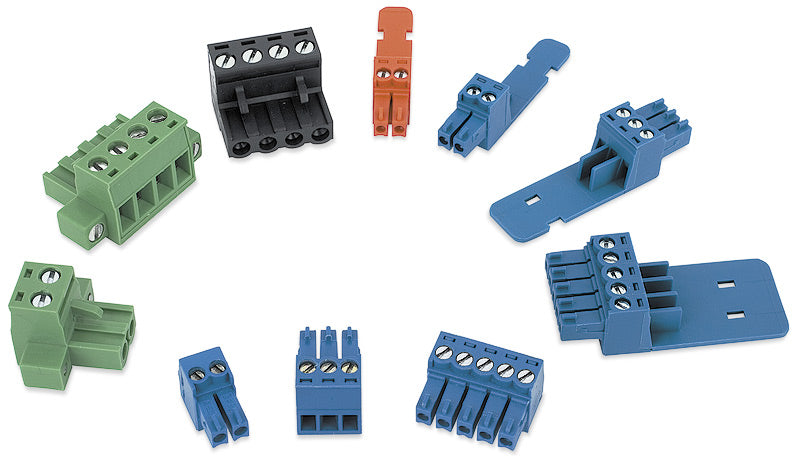

Extron 5.0 mm, 4 pole, black, no tail (part number 100-462-01) is the four-position replacement captive screw connector on Extron's wider 5.0 mm pitch, supplied ten to a package.

The 5.0 mm pitch exists for the heavier end of the system. Its terminals take much thicker copper than the 3.5 mm parts do, which is what amplified loudspeaker runs and DC power feeds need. Four positions covers a stereo speaker pair or a two-circuit power block. This one is moulded without a strain relief tail, so it stays short where the block is recessed or crowded. Conductors clamp under captive screws for straightforward field service.

Key Capabilities

• Four positions on Extron's 5.0 mm captive screw contact pitch.
• Accepts 12 to 22 AWG wire - notably heavier than the 3.5 mm range allows.
• Sized for amplified speaker output and power distribution terminations.
• No strain relief tail, keeping the plug short in recessed positions.
• Black housing distinguishes it from the green screw lock 5.0 mm parts.
• Ten pieces per package for amplifier racks and spares stock.

Where It Is Used

Amplifier and DSP racks, distributed ceiling and pendant speaker systems, paging and background music installs, control rooms, digital signage cabinets, and medical imaging or clinical display suites - anywhere an Extron amplifier or power distribution device terminates on a four-position 5.0 mm captive screw block.

Wiring Notes

Keep the exposed conductor close to 3/16 in (5 mm) as Extron advises for its captive screw terminations: longer runs the risk of two contacts touching, shorter lets the wire back out under load even when the screws are down. Leave the strands untinned - solder-coated ends lose their shape and the joint slackens as the install ages.

Specifications at a Glance

• Contact pitch: 5.0 mm
• Poles: 4
• Housing colour: black
• Strain relief tail: not included
• Wire range: 12-22 AWG
• Package quantity: 10

Also referenced as Extron 5.0 mm 4 pole black no tail, 5-0-mm-4-pole-black-no-tail, part number 10046201.
