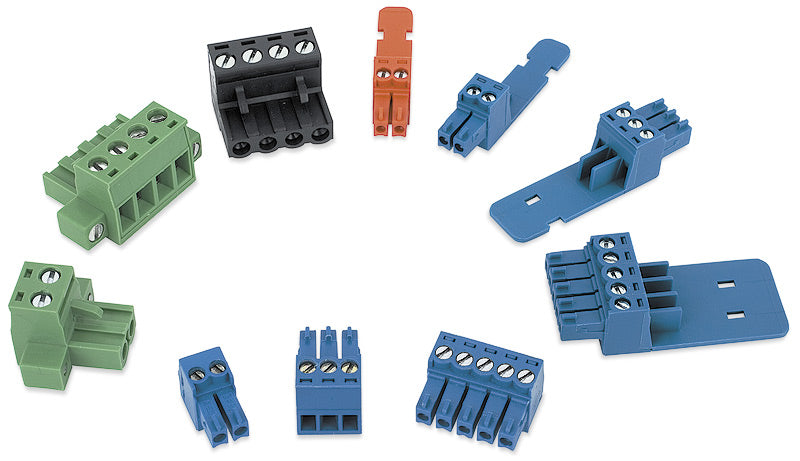

Extron 3.5 mm, 5 pole, blue, with tail (part number 100-457-01) is the five-position replacement captive screw connector for Extron audio and control terminations, sold ten to a pack.

Five positions cover the wider terminations in an Extron rack - a stereo balanced audio pair sharing a ground, or a control port that carries transmit, receive, ground and a pair of auxiliary lines. Losing one of these plugs takes out more than a single channel, so keeping a bag on the shelf is cheap insurance. The connector mates with the matching 3.5 mm captive screw block and clamps each conductor under its own screw.

Key Capabilities

• Five positions on Extron's 3.5 mm captive screw contact pitch.
• Handles stereo balanced audio and multi-line serial or IR control terminations.
• Takes conductors from 16 to 28 AWG under individual captive screws.
• Integrated strain relief tail absorbs cable flex behind the connector body.
• Blue housing matches the rest of the 3.5 mm connector family.
• Ten pieces per package, sized for a full rack fit-out plus spares.

Where It Is Used

Corporate boardrooms, training rooms and lecture theatres, broadcast and security control rooms, digital signage cabinets, and medical imaging or clinical display suites - wherever Extron matrix switchers, audio processors, control processors and interfaces expose five-position captive screw blocks.

Wiring Notes

Extron's audio connector wiring card addresses five-position plugs specifically. Strip to roughly 3/16 in (5 mm) of bare conductor; a longer exposure can let neighbouring contacts touch, and a shorter one lets the wire withdraw even after the screws are set. Do not tin the ends - tinned strands lose form and slacken. With unbalanced sources, land the cable sleeve on the ground position instead of the negative.

Specifications at a Glance

• Contact pitch: 3.5 mm
• Poles: 5
• Housing colour: blue
• Strain relief tail: integrated
• Wire range: 16-28 AWG
• Package quantity: 10

Also referenced as Extron 3.5 mm 5 pole blue with tail, 3-5-mm-5-pole-blue-with-tail, part number 10045701.
