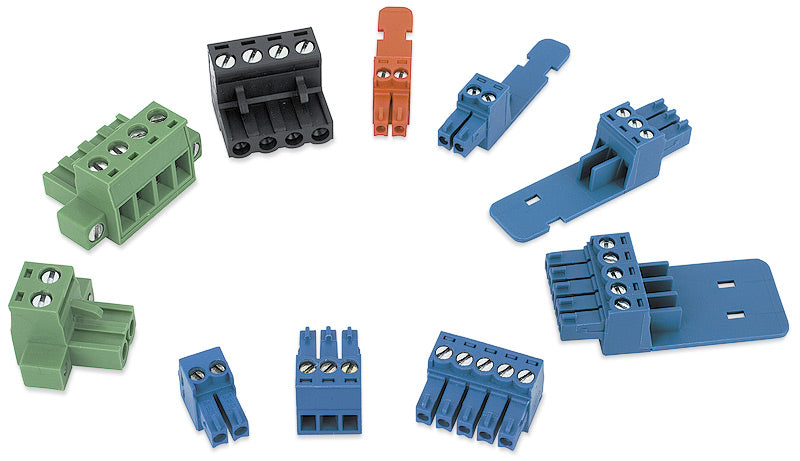

Extron 3.5 mm, 5 pole, blue, no tail (part number 100-460-01) is the five-position captive screw connector built without a strain relief tail, supplied ten to a package.

Five-position blocks carry the wider terminations in an Extron system: stereo balanced audio sharing a ground, or a control port running transmit, receive, ground and auxiliary lines. The tail-free moulding on this version shortens the plug where the block sits behind a panel cut-out or inside a shallow furniture pocket. Every conductor is clamped by its own captive screw, so a technician can re-terminate on site with hand tools alone.

Key Capabilities

• Five positions on Extron's 3.5 mm captive screw contact pitch.
• No strain relief tail, which keeps the plug short in confined enclosures.
• Accepts 16 to 28 AWG conductors under individual captive screws.
• Serves stereo balanced audio and multi-line serial or IR control ports.
• Blue housing matches the standard 3.5 mm connector colour.
• Packed ten at a time for rack fit-outs and service vehicle stock.

Where It Is Used

Conference and training rooms, auditoriums, wall plate and lectern interfaces, broadcast and security control rooms, digital signage cabinets, and medical imaging or clinical display suites - anywhere an Extron matrix switcher, audio processor or control processor presents a five-position captive screw block in a tight space.

Wiring Notes

Extron's audio connector wiring card deals with five-position plugs directly. Expose roughly 3/16 in (5 mm) of conductor: any more and adjacent contacts may bridge, any less and the wire can withdraw despite tight screws. Do not tin the ends, as tinned strands lose shape and slacken. For unbalanced sources, take the sleeve to the ground contact instead of the negative.

Specifications at a Glance

• Contact pitch: 3.5 mm
• Poles: 5
• Housing colour: blue
• Strain relief tail: not included
• Wire range: 16-28 AWG
• Package quantity: 10

Also referenced as Extron 3.5 mm 5 pole blue no tail, 3-5-mm-5-pole-blue-no-tail, part number 10046001.
