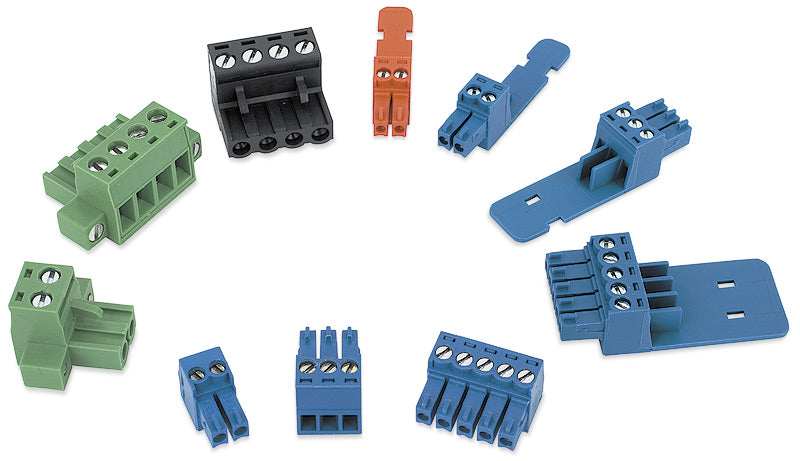

Extron 3.5 mm, 3 pole, blue, with tail (part number 100-456-01) is the three-position replacement captive screw connector for Extron audio and control ports, supplied in tens.

Three poles is the balanced-audio count: positive, negative and ground on one plug. It is also the shape of a bidirectional serial link. This blue connector restores either without disturbing the rest of the loom - slide it onto the matching 3.5 mm captive screw block, land the three conductors under the screws, and the channel is back. Because the wire is clamped rather than soldered, a field change means a screwdriver rather than an iron.

Key Capabilities

• Three positions on the 3.5 mm captive screw pitch used throughout Extron hardware.
• Suits balanced line-level audio runs and two-way serial control links.
• Clamps 16 to 28 AWG conductors, covering shielded pairs and heavier feeds.
• Integrated strain relief tail carries cable movement away from the terminals.
• Blue body follows the standard colour of the 3.5 mm connector range.
• Ten connectors per package for rack builds and on-site spares kits.

Where It Is Used

Boardrooms, lecture halls, houses of worship, broadcast and network control rooms, digital signage cabinets, and medical imaging or clinical display suites - wherever Extron switchers, DSPs, amplifiers and control processors present three-position captive screw blocks for balanced audio or serial control.

Wiring Notes

Extron's audio connector wiring card covers three-position plugs directly. Aim for around 3/16 in (5 mm) of exposed conductor - more invites a bridge between adjacent contacts, less lets the wire withdraw under tension even with the screws down. Leave the strands bare rather than tinned, as tinned ends deform and loosen. On unbalanced sources, take the cable sleeve to the ground position rather than the negative one.

Specifications at a Glance

• Contact pitch: 3.5 mm
• Poles: 3
• Housing colour: blue
• Strain relief tail: integrated
• Wire range: 16-28 AWG
• Package quantity: 10

Also referenced as Extron 3.5 mm 3 pole blue with tail, 3-5-mm-3-pole-blue-with-tail, part number 10045601.
