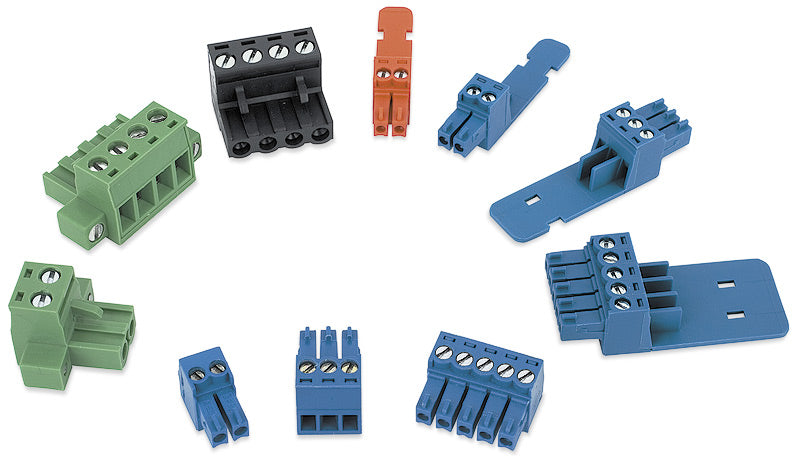

Extron 3.5 mm, 2 pole, blue, with tail (part number 100-455-01) is a replacement captive screw connector for Extron audio, control and power ports, packed ten to a bag.

Two-conductor terminations are the workhorse of an AV rack: a power feed here, a mono audio drop there, a serial pair somewhere else. When one of those plugs walks off with a decommissioned device, this blue two-pole part restores it. The body drops into any matching 3.5 mm captive screw block on Extron equipment, and the screws take the wire directly, so a technician can re-land a cable at the rack instead of pulling a new run.

Key Capabilities

• Two poles on the 3.5 mm captive screw pitch Extron uses for audio and control.
• Wire acceptance from 16 through 28 AWG covers control pairs and power leads alike.
• Integrated strain relief tail keeps cable movement off the screw terminals.
• Blue housing matches the standard colour used across the 3.5 mm range.
• Supplied as ten connectors, enough to fit out a rack and keep spares in the case.
• No soldering or crimp die required - the captive screws do the work.

Where It Is Used

Conference and huddle rooms, lecture theatres, control rooms, digital signage enclosures, and medical imaging or clinical display suites - anywhere Extron switchers, control processors, amplifiers and interfaces terminate a two-wire audio, control or power connection on a captive screw block.

Wiring Notes

Extron's audio connector wiring card sets about 3/16 in (5 mm) as the amount of copper to expose. Go longer and neighbouring contacts risk touching; go shorter and the conductor can slip free even after the screws are tightened. Tinning the strands is discouraged, since solder-coated wire relaxes and works loose with time.

Specifications at a Glance

• Contact pitch: 3.5 mm
• Poles: 2
• Housing colour: blue
• Strain relief tail: integrated
• Wire range: 16-28 AWG
• Package quantity: 10

Also referenced as Extron 3.5 mm 2 pole blue with tail, 3-5-mm-2-pole-blue-with-tail, part number 10045501.
