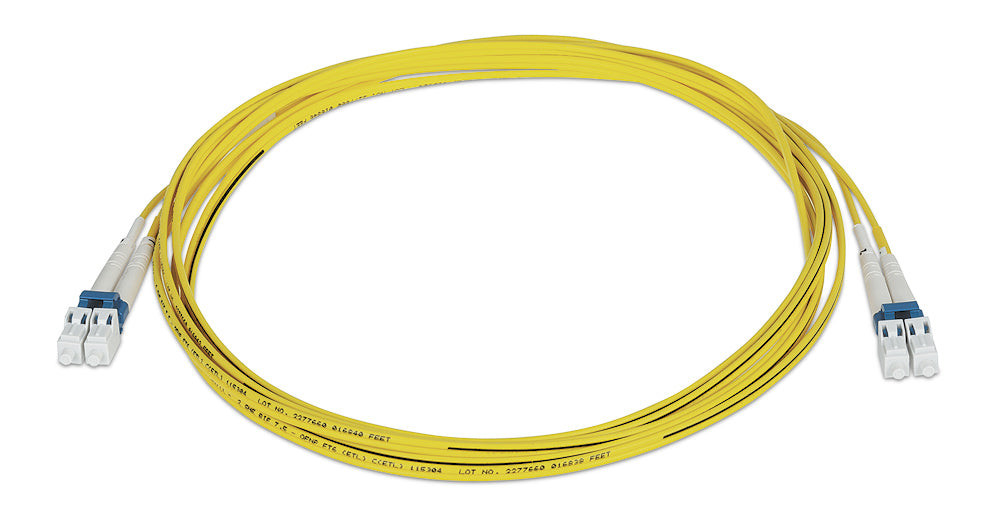

Extron 2LC SM P/30 (part number 26-670-30) — 30 metres (98.4 ft) of plenum-rated duplex singlemode fiber, terminated LC to LC at the factory.

Thirty metres marks the top of the length range Extron currently publishes for the 2LC SM P family, and it is the practical ceiling for a single-run assembly pulled through a building without an intermediate enclosure. Two singlemode glass fibers sit in the duplex zip-cord jacket, protected by aramid yarn and a PVC outer listed to OFNP FT6. Because Extron rates singlemode transport out to 30 km, the loss contributed by a 30 m assembly is negligible next to the connector pair at either end.

Key Capabilities

• 30 m (98.4 ft) single-piece run — no midspan splice or enclosure required.
• Duplex zip-cord assembly measuring 0.08 in x 0.16 in (2.0 mm x 4.0 mm).
• Singlemode glass rated below 0.5 dB per km at 1310 nm and 1550 nm.
• OFNP FT6 plenum listing from ETL and c-ETL for above-ceiling routing.
• LC connectors with an ultra physical contact polish at both terminations.
• Installation bend radius of 2.0 in (50 mm), relaxing to 1.2 in (30 mm) after.

Where It Is Used

Thirty-metre singlemode assemblies bridge floors and wings: theatre grid to amp room, hospital department to central AV, stadium concourse to production, campus lecture block to distribution frame. The plenum jacket means the same part can serve both the riser and the ceiling void portion of the route.

Specifications at a Glance

• Cable length: 30 m (98.4 ft)
• Number of fibers: 2, glass, singlemode 8.3 µm
• Connector: LC / UPC, 1.91 in long
• Insertion loss: under 0.3 dB per 300 m at 1550 nm
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron 2LCSMP/30, 2LC-SM-P-30, part number 2667030.
