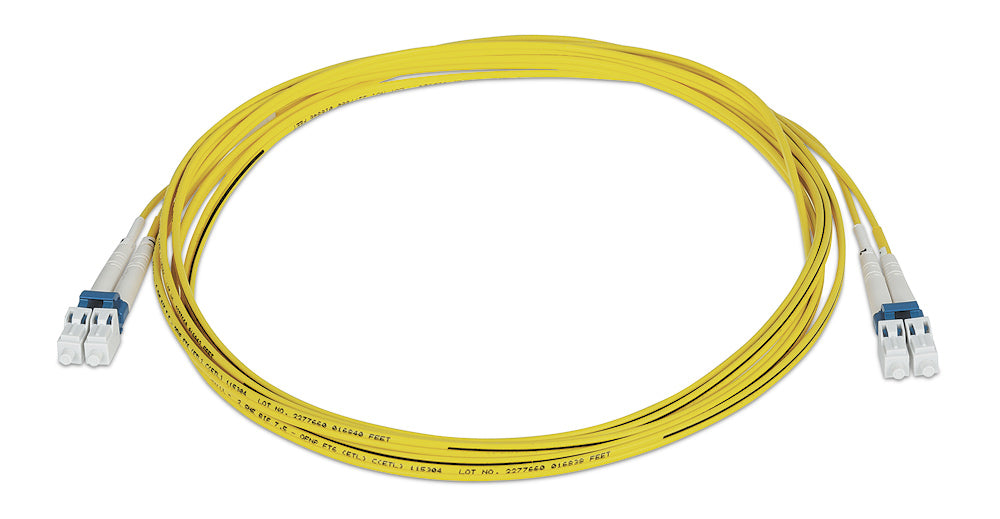

Extron 2LC SM P/3 (part number 26-670-03) — 3 metres (9.8 ft) of duplex singlemode fiber, terminated LC to LC and jacketed for plenum installation.

Three metres is the length integrators reach for when the fiber has to leave the rack: cabinet to wall plate, floor box to transport chassis, projector shelf to the nearest patch field. Extron builds the assembly from two glass singlemode fibers, wraps them in aramid yarn for strain relief and finishes each end with an LC connector polished to ultra physical contact. The result behaves the same as the 1 m and 2 m versions optically — the loss budget is dominated by the connectors, not the three metres of glass.

Key Capabilities

• 3 m (9.8 ft) of duplex singlemode fiber in a single OFNP-rated jacket.
• Attenuation specified at less than 0.5 dB per km, measured at 1310 nm and 1550 nm.
• Bend-insensitive fiber tolerating a 0.3 in (7.5 mm) radius once installed.
• LC connectors measuring 1.91 in x 0.18 in x 0.18 in — dense enough for high-count panels.
• Aramid yarn strength member absorbs pulling force during cable dressing.
• ETL and c-ETL listing to OFNP FT6 for plenum airspace runs.

Where It Is Used

A 3 m singlemode jumper suits lectern-to-rack links in lecture theatres, camera positions in broadcast studios, operating theatre and radiology equipment rooms, courtroom AV cabinets and utility control rooms where the fiber leaves the rack but never leaves the room.

Specifications at a Glance

• Cable length: 3 m (9.8 ft)
• Number of fibers: 2, glass, singlemode 8.3 µm
• Insertion loss: under 0.3 dB per 300 m at 1550 nm
• Installation bend radius: 2.0 in (50 mm), dropping to 1.2 in (30 mm) after install
• Warranty: Limited Lifetime Performance

Also referenced as Extron 2LCSMP/3, 2LC-SM-P-3, part number 2667003.
