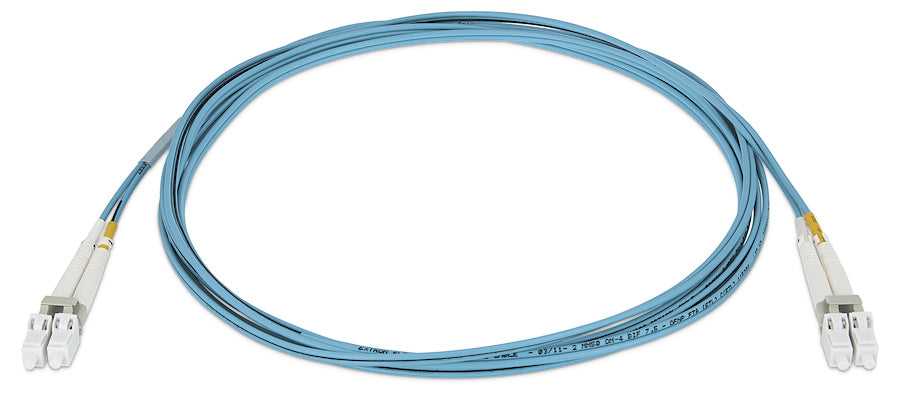

Extron 2LC OM4 MM P/5 (part number 26-671-05) — five meters of bend-insensitive OM4 duplex fiber, LC terminated at both ends, jacketed to an OFNP plenum listing.

Five meters is the first length in the series that regularly leaves the rack. It reaches from an Extron optical transmitter or receiver across an aisle, up into a ceiling tray, or over to an adjacent enclosure. The two-fiber zip-cord body measures only 2.0 mm by 4.0 mm, so it threads through crowded cable managers without displacing copper runs, and the aramid yarn core lets an installer pull it without stressing the glass.

Key Capabilities

• 5 m (16.4 ft) reach — rack-to-rack rather than rack-internal.
• Insertion loss stays beneath 0.5 dB per 300 m at 850 nm and at 1300 nm.
• OM4 multimode glass, 50 µm core over 125 µm cladding.
• Duplex construction: 2 fibers for a full send-and-receive pair.
• Minimum 2.0 in (50 mm) bend radius while pulling; 1.2 in (30 mm) once dressed.
• ETL/c-ETL OFNP FT6 plenum rating satisfies return-air ceiling requirements.

Where It Is Used

Five-meter OM4 assemblies connect Extron fiber endpoints across control rooms, surgical suites, lecture theaters and broadcast galleries — runs that cross a room or an aisle but stay well inside the multimode distance budget.

Specifications at a Glance

• Length: 5 m (16.4 ft)
• Attenuation: under 3.0 dB per km at 850 nm; under 1.2 dB per km at 1300 nm
• Connectors: LC, UPC polish, 48.5 mm long bodies
• Materials: glass fiber, PVC jacket, aramid yarn strength member
• Temperature: 0 to +70 °C

Also referenced as Extron 2LCOM4MMP5, 2LC-OM4-MM-P-5, part number 2667105.
