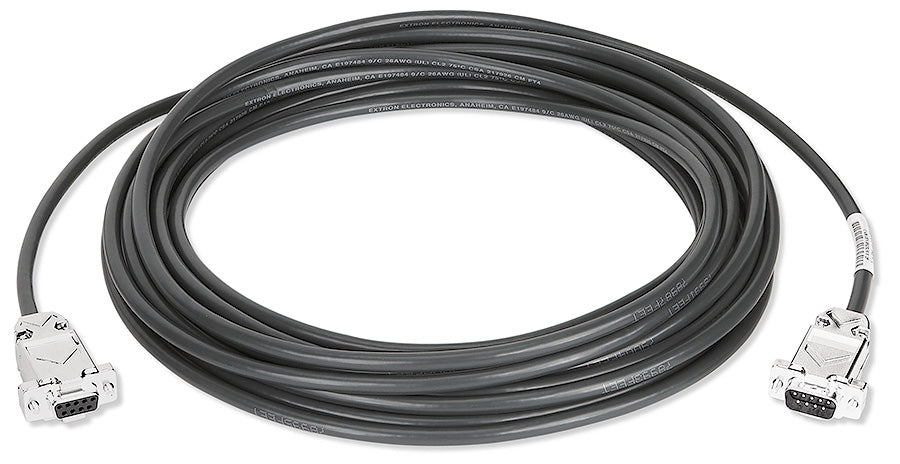

Extron 232/75 (part number 26-433-09) — a 75 ft (22.8 m) 9-pin D male-to-female RS-232 control cable from the Extron 232 Series. Extron has retired this part number.

Seventy-five feet is the second-longest cable Extron built in this family, and it exists for the jobs where a serial device simply is not close to the rack: a projector at the back of a large hall, a display on the far side of a lobby, a processor in a closet two rooms away. The length is measured tip to tip, connectors included. All nine conductors run straight through with transmit on pin 2, receive on pin 3 and ground on pin 5, so nothing in the interface is dropped over the distance. The jacket carries an NEC CM rating for non-plenum pathways.

Key Capabilities

• 75 ft (22.8 m) finished length, measured tip to tip including the connectors.
• 9-pin D male to 9-pin D female termination.
• All nine pins passed straight through, pin for pin.
• Pin 2 transmit, pin 3 receive, pin 5 ground per Extron's cable guide.
• Color-coded conductors, brown on pin 1 through black on pin 9.
• NEC CM rated non-plenum jacket.
• Retired Extron part number — useful for matching an existing installed system.

Where It Is Used

Long control runs inside a single building: head-end rack to a rear-of-house projector, AV closet to a lobby display, control room to a remote equipment position in auditoriums, arenas, transit facilities, houses of worship and large medical education spaces.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Connectors: 9-pin D male to 9-pin D female
• Pin configuration: all pins passed; Tx on 2, Rx on 3, Gnd on 5
• Jacket rating: NEC CM, non-plenum

Also referenced as Extron 23275, 232-75, part number 2643309.
