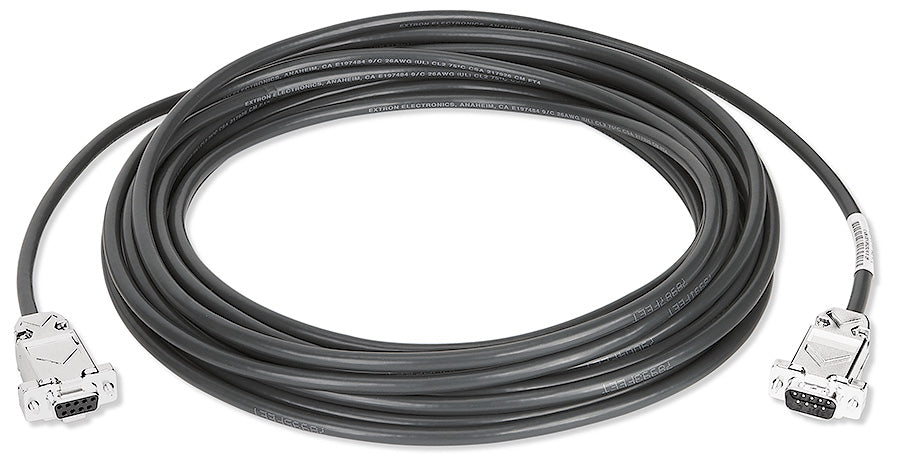

Extron 232/12 (part number 26-433-06) — a 12 ft (3.6 m) 9-pin D male-to-female RS-232 control cable from the Extron 232 Series.

Twelve feet covers the distance most rooms actually need between a control processor and the device it drives: rack to lectern, rack to a wall-mounted display, rack to a ceiling projector's serial port. Because Extron measures this length tip to tip, the connectors are inside the 12 ft, so the pull can be planned exactly. The wiring is straight through on all nine pins with transmit on 2, receive on 3 and ground on 5, so equipment expecting flow-control lines still sees them. The jacket carries an NEC CM rating for non-plenum pathways.

Key Capabilities

• 12 ft (3.6 m) finished length, measured tip to tip including the connectors.
• 9-pin D male on one end, 9-pin D female on the other.
• All nine pins passed straight through, with no null-modem swap.
• Pin 2 transmit, pin 3 receive, pin 5 ground per Extron's cable guide.
• Color-coded conductors, brown on pin 1 through black on pin 9.
• NEC CM rated non-plenum jacket.

Where It Is Used

Room-scale serial control: MediaLink or IP Link at the rack driving a projector, flat panel or audio processor across the room. Common in classrooms and lecture halls, divisible meeting rooms, houses of worship, courtroom AV and hospital conference spaces.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Connectors: 9-pin D male to 9-pin D female
• Pin configuration: all pins passed; Tx on 2, Rx on 3, Gnd on 5
• Jacket rating: NEC CM, non-plenum

Also referenced as Extron 23212, 232-12, part number 2643306.
