Extron 12G HD-SDI 101 12G-SDI Cable Equalizer
- • Equalizes SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI on one female BNC input
- • Locks automatically to rates from 270 Mbps up to 11.88 Gbps
- • Recovers 230 ft (70 m) of 12G-SDI or 984 ft (300 m) of SDI on Extron RG6
- • Automatic input equalization corrects as much as -30 dB of cable loss
- • Output re-clocking removes jitter at 270 Mbps through 11.88 Gbps
- • Passes HDR plus up to 16 embedded audio channels and ancillary data
- • Only 14 ns of latency at unity gain keeps live signal chains clean
- • One-eighth rack wide metal case, 1.0 x 2.2 x 3.0 inches, 0.1 lb
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

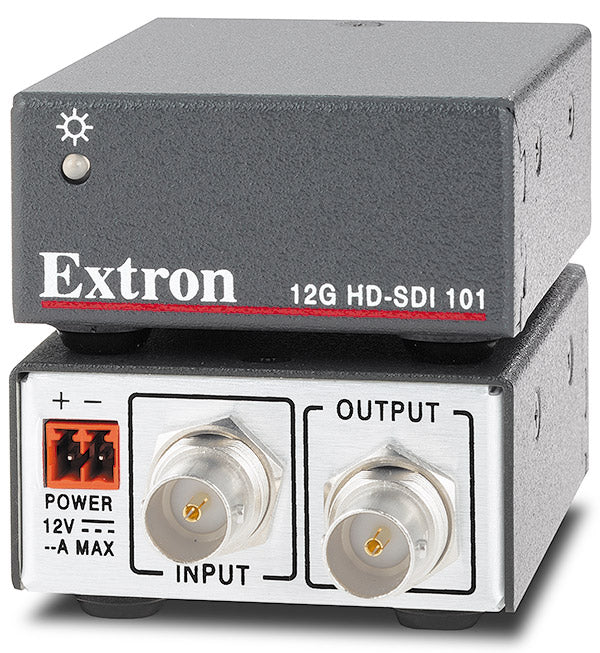

Extron 12G HD-SDI 101 (part number 60-1673-01) — a single-channel cable equalizer that rescues long coaxial SDI runs, from legacy SD all the way to 12G-SDI.

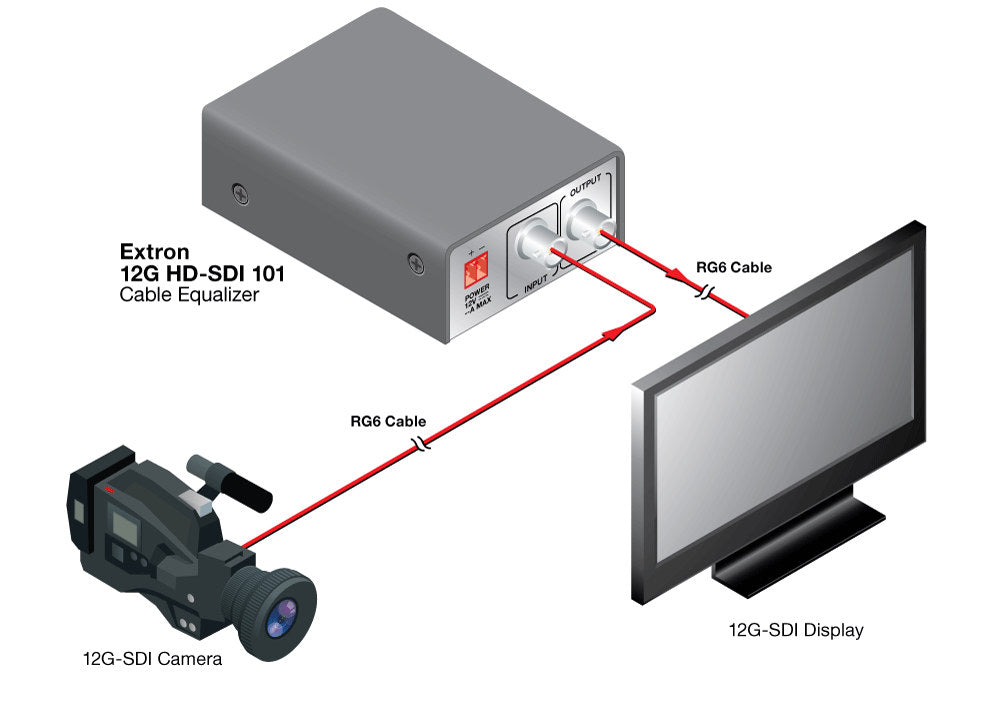

Coaxial cable attenuates high-frequency serial digital video, and a 4K/60 12G-SDI feed degrades far faster than an HD signal on the same run. Installed at the display end of the cable, the 12G HD-SDI 101 measures the incoming signal, applies matched equalization for as much as -30 dB of loss, then re-clocks the output to strip accumulated jitter. Rate detection is automatic, so one unit covers every SMPTE and ITU data rate in the plant without a jumper, a menu or a configuration utility.
Key Capabilities
- One female BNC in, one female BNC out; 75 ohm, AC-coupled input with automatic data-rate lock.
- Serial rates from 270 Mbps to 11.88 Gbps, including level A and level B mapping for 3G-SDI and 6G-SDI.
- Equalization reach on Extron RG6 cable: 70 m (230 ft) at 12G-SDI, 90 m (295 ft) at 6G-SDI, 180 m (590 ft) at 3G-SDI, 240 m (787 ft) at HD-SDI and 300 m (984 ft) at SDI.
- Signal path adds only 14 ns of latency and holds unity gain.
- Carries HDR, up to 16 embedded audio channels and ancillary data untouched.
- Runs on an external Extron Everlast supply carrying a 7-year parts and labor warranty.
Where It Is Used
Broadcast and production facilities, camera-to-control-room links, medical imaging and surgical video suites, houses of worship, stadium and arena feeds, and any post-production or command-center space where a 12G-SDI source sits farther from the display than a bare coaxial run can reliably serve.
Specifications at a Glance
- Maximum video data rate: 11.88 Gbps per 12G-SDI connection
- 4K capability: 4096x2160 and 3840x2160 at 60 Hz, 4:2:2 chroma, 10-bit
- Input equalization: automatic, to -30 dB of cable loss
- Enclosure: metal, one-eighth rack wide, 1.0 x 2.2 x 3.0 inches, 0.1 lb
- Power: external 12 VDC, 0.5 A supply; 1.0 W drawn at the device
Also referenced as Extron 12GHDSDI101, 12G-HD-SDI-101, part number 60167301.
