Manufacturer: Barco | Model: MDSC-8331 LED (also written MDSC8331) | Part number: 991932399111

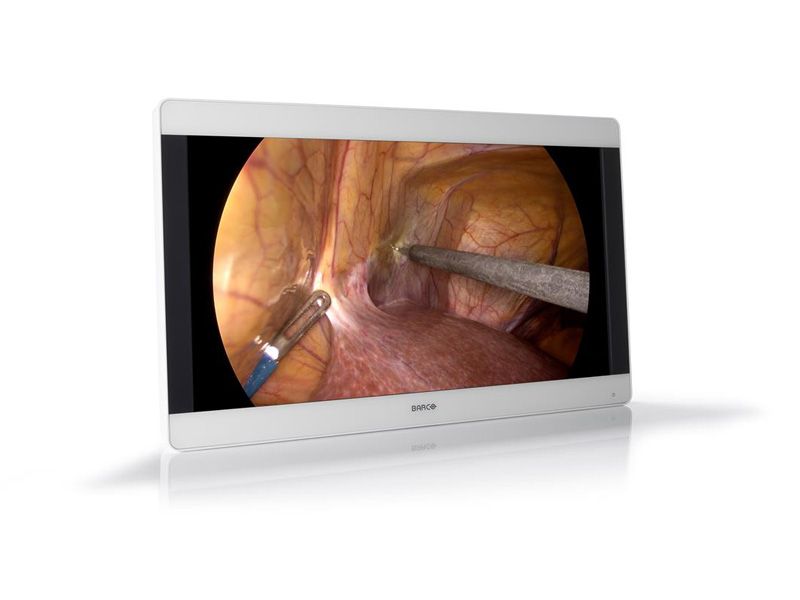

The Barco MDSC-8331 (MDSC8331) is a 31-inch 4K UHD surgical display with a 4096 x 2160 TFT LCD panel, 10-bit color, and a wide color gamut covering 96% of DCI-P3. It is built for endoscopic and minimally invasive visualization in the operating room. Ampronix supplies the Barco MDSC-8331, part number 991932399111, and provides sales, service, repair, and exchange replacement for it. Contact Ampronix to confirm availability and condition.

Key capabilities

• 31.1-inch panel at 4096 x 2160 (17:9) with a 0.1704 mm pixel pitch and 1073 million colors (10-bit)
• 550 cd/m2 native luminance (410 cd/m2 factory calibrated), 1300:1 contrast, and a 178 degree viewing angle
• Wide color gamut covering 96% of DCI-P3 for accurate tissue and instrument color
• 4K inputs: HDMI 2.0 and DisplayPort 1.2 at 4096 x 2160 @60Hz, plus 3G-SDI and two DVI inputs for FHD sources
• DVI video output and RS-232C port for signal pass-through and control in integrated ORs
• VESA 100 x 100 mm and 200 x 100 mm mounting, 11.8 kg without stand, for boom and wall installations

Where it is used

The Barco MDSC-8331 is used as a primary or secondary surgical display in laparoscopic cholecystectomy, knee and shoulder arthroscopy, ureteroscopy, cystoscopy, hysteroscopy, and functional endoscopic sinus surgery (FESS), in operating rooms, hybrid ORs, and endoscopy suites running 4K camera systems.

Specifications at a glance

• Model: Barco MDSC-8331 LED / MDSC8331, part number 991932399111
• Screen: 31.1-inch TFT AM LCD, 4096 x 2160, 10-bit, 96% DCI-P3
• Luminance and contrast: 550 cd/m2 native, 1300:1, 20 ms response
• Inputs: HDMI 2.0, DisplayPort 1.2, 3G-SDI, 2x DVI, RS-232C control
• Power: +24 VDC / 6.25 A (100-250 VAC external supply), 90 W nominal
• Size and weight: 777 x 472 x 92 mm, 11.8 kg (26 lbs) without stand

Frequently asked questions

• Is the Barco MDSC-8331 991932399111 available from Ampronix? - Ampronix supplies the Barco MDSC-8331. Contact Ampronix to confirm current availability and condition.
• What is the difference between the Barco MDSC-8331 and the MDSC-8231? - Both are 31-inch 4K surgical displays. The MDSC-8331 uses 3G-SDI, HDMI 2.0, and DisplayPort 1.2 inputs at 1300:1 contrast, while the MDSC-8231 is offered with 12G-SDI input and 1400:1 contrast. Choose by the video signal your camera or router outputs.
• Does Ampronix repair the Barco MDSC-8331? - Yes. Ampronix offers repair and exchange replacement for the Barco MDSC-8331 (MDSC8331) and the broader Barco surgical display line.
• What video inputs does the Barco MDSC-8331 have? - One HDMI 2.0, one DisplayPort 1.2, one 3G-SDI, and two DVI inputs, with one DVI output and an RS-232C control port.
• Can the Barco MDSC-8331 be wall or boom mounted? - Yes. It supports VESA 100 x 100 mm and 200 x 100 mm mounting patterns.

Ampronix supplies the Barco MDSC-8331 and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Barco surgical display line.

Also referenced as: BarcoMDSC8331, Barco-MDSC-8331, MDSC8331, MDSC-8331 LED, Barco MDSC-8331 LED, part number 991932399111.
