Full Product Description (with Sales, Replacement & Exchange)

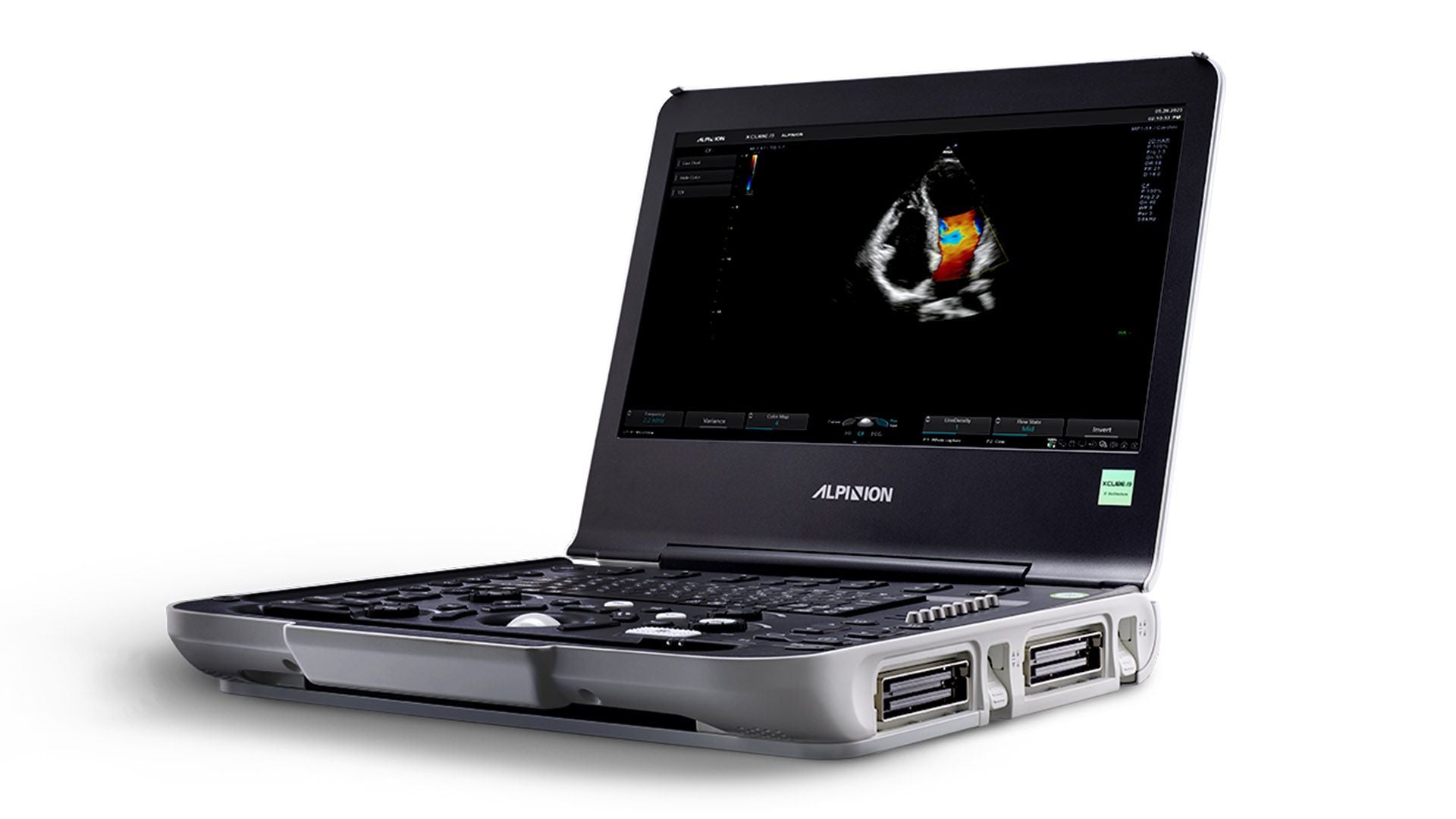

The Alpinion X-CUBE i9 / XCUBE i9 Portable Ultrasound System is a next-generation diagnostic platform designed for clinicians who demand mobility, accuracy, and premium imaging performance. Powered by X+ Architecture, it delivers exceptional clarity, fast boot times, and intelligent workflow features for a broad range of clinical applications including radiology, OB/GYN, cardiology, vascular, and musculoskeletal imaging.

Engineered for modern healthcare environments, the X-CUBE i9 integrates advanced beamforming and signal-processing technologies through X+ FIT™ and X+ Crystal Signature™, ensuring deep penetration, improved uniformity, and true-to-life imaging results.

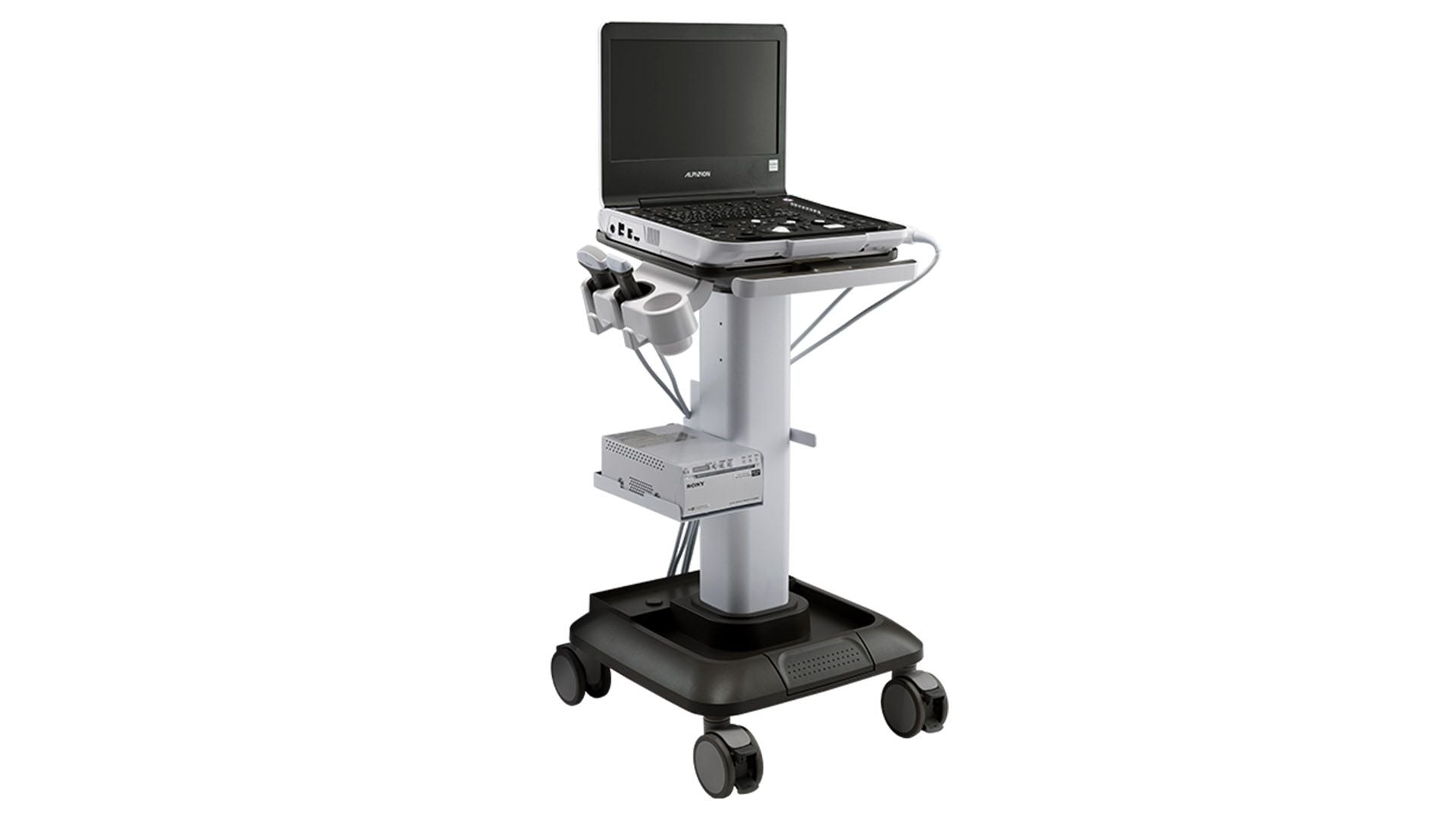

Its ergonomic 15.6" LCD monitor tilts up to 180°, supported by a lightweight 6 kg frame, optional control cart, and long-life dual batteries—making it one of the most flexible portable ultrasound solutions available. The system’s dual transducer ports allow rapid switching between probes for diverse scanning needs.

Ampronix provides sales, replacement, and exchange support for the Alpinion X-CUBE i9, ensuring healthcare facilities can maintain continuous operation with certified systems, replacement components, and high-quality service solutions.

Ampronix Support & Services
Ampronix supports the Alpinion X-CUBE i9 with:

Professional sales and replacement options for complete ultrasound systems
Exchange programs for defective or aging Alpinion ultrasound units
Comprehensive evaluation and quality assurance testing
Technical support and configuration assistance for new installations

Technical Information
Model Numbers: Alpinion X-CUBE i9, XCUBE i9
Manufacturer: Alpinion Medical Systems
Display: 15.6″ LCD monitor (tilts up to 180°)
Weight: Approx. 6 kg (with single battery)
Battery: Dual battery design (standby 100 hrs / continuous 60 min)
Transducers: Dual transducer connectors (optional second port)
Imaging Technology: X+ Architecture, X+ FIT™, X+ Crystal Signature™
Boot Time: 15 sec (from sleep) / 62 sec (from off)
Applications: Abdomen, OB/GYN, Vascular, Cardiology, Musculoskeletal, Pediatric, Urology
Dimensions: 385 (W) × 370 (D) × 62.5 – 353 (H) mm
Power: 100–240 VAC, 50/60 Hz
