Full Product Description (Sales, Replacement & Exchange)
The Alpinion X-CUBE i8 / XCUBE i8 Portable Ultrasound System is an advanced diagnostic platform designed to deliver high-resolution imaging, fast workflow, and optimized mobility for clinicians across multiple care settings. Powered by X+ FIT™ parallel beamforming technology and a high-capacity data engine, the X-CUBE i8 produces exceptional image clarity with improved contrast, uniformity, and penetration.

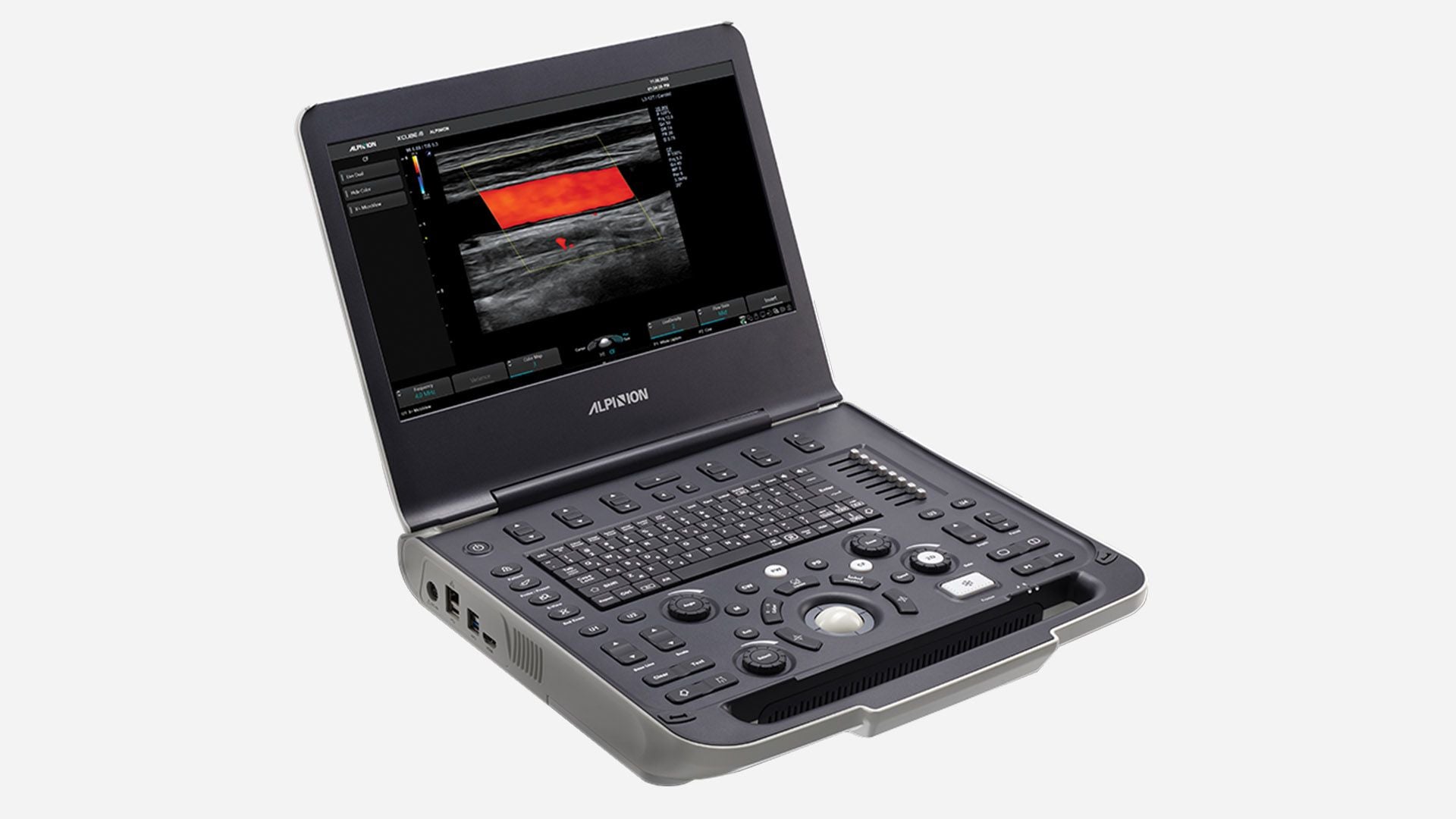

The system features a 15.6-inch tilting LCD monitor, lightweight 6 kg chassis, intuitive controls, and rapid boot-up from sleep mode. Dual transducer connectors and dual battery capability make the X-CUBE i8 an ideal ultrasound solution for Emergency Medicine, OB/GYN, Vascular, Primary Care, Point-of-Care, MSK, and bedside imaging applications.

Designed for mobility without sacrificing performance, the Alpinion X-CUBE i8 offers intelligent clinical tools including Elastography, AutoEF, CUBE Strain™, automated measurements, enhanced Doppler sensitivity, and optimized workflow assistance for quick and accurate diagnostics.

Ampronix provides sales, replacement, and exchange solutions for the Alpinion X-CUBE i8, ensuring healthcare facilities maintain continuity of care with high-quality ultrasound systems that meet modern imaging demands.

Ampronix Support & Services
Ampronix supports the Alpinion X-CUBE i8 with:

Professional sales and replacement ultrasound system options
Exchange programs for aging or non-functional XCUBE i8 units
Certified testing and quality assurance evaluations
Setup assistance and support for clinical configuration

Technical Information
Model Numbers: Alpinion X-CUBE i8, XCUBE i8
Manufacturer: Alpinion Medical Systems
Display: 15.6″ LCD tilting monitor (up to 180°)
Weight: Approx. 6 kg (with single battery)
Battery System: Dual batteries (standby up to 100 hrs, continuous scan up to 60 min)
Transducer Ports: 2 active connectors (second optional)
Imaging Technology: X+ FIT™, advanced parallel beamforming
Advanced Tools: AutoEF, CUBE Strain™, Elastography, intelligent measurement processing
Boot Time: 15 seconds from sleep / up to 80 seconds from off

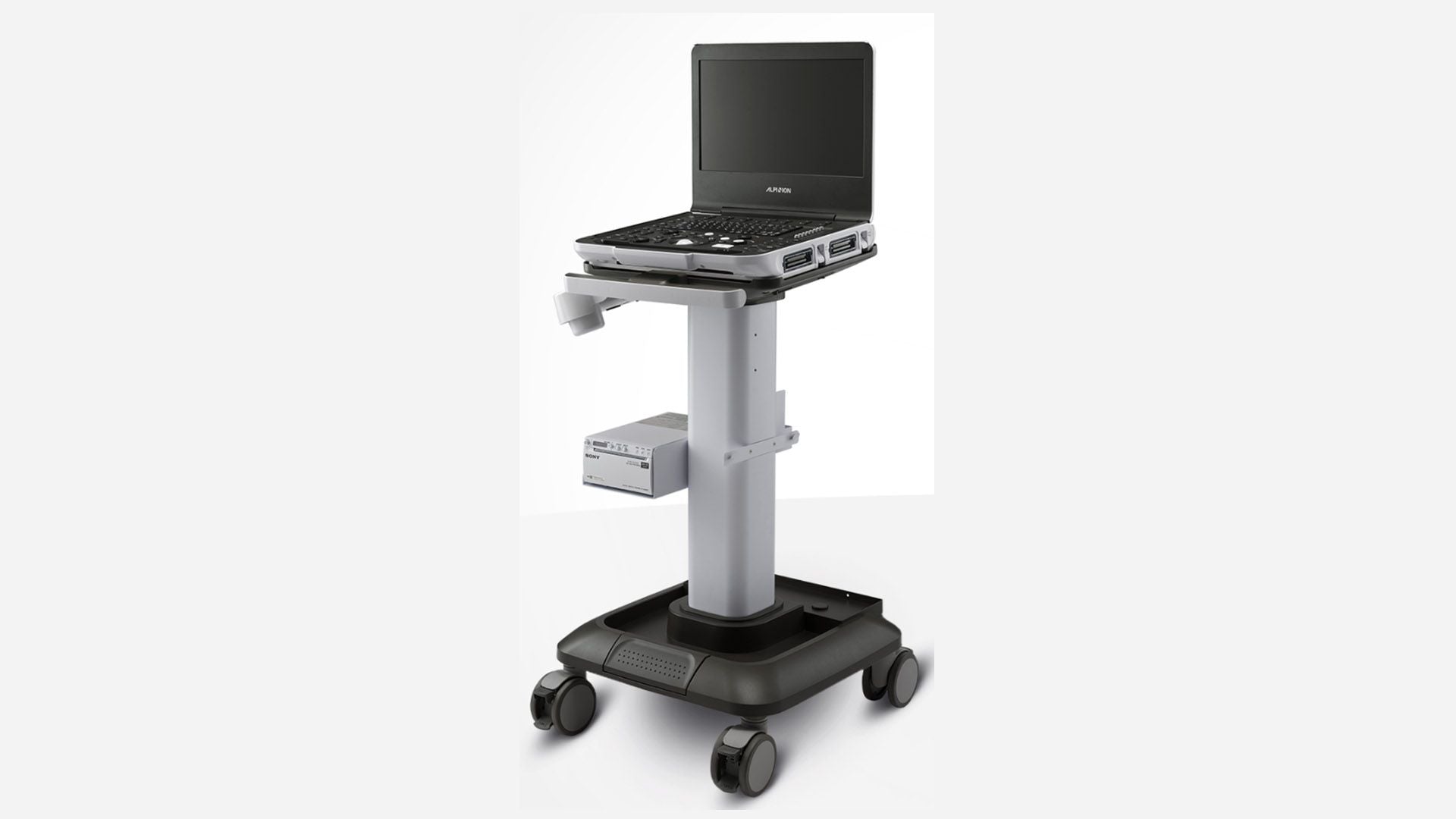

Ergonomics: Lightweight, portable, optional control cart, optional control panel cover

Applications:

Musculoskeletal
Vascular
Primary Care / Cardiology
OB/GYN
Abdomen
Emergency Medicine
Dimensions: 385 (W) × 370 (D) × 62.5–353 (H) mm
Power Requirements: 100–240 VAC, 50/60 Hz
