Details

The Totoku ME183L monochrome LCD is a multifunctional model with support of multiple input signals, the Picture-in-Picture function, and a built-in luminance stabilizing system to provide stable luminance. This makes the Totoku ME183L best suited for various imaging modalities.

Totoku ME183L, Model: MDL1812A

Specifications

Manufacturer: Totoku

Condition: Refurbished

Modality: Diagnostic

Calibrated Luminance: (factory-set to 410cd/m²)

Certifications: UL2601-1, CSA C22.2 No.601.1, MDD/CE, FDA510 (k), MIC, CCC, BSMI, FCC-B, VCCI-B

Contrast Ratio: 600:1 (typ)

Dimensions (With Stand): Landscape : 432 (W) X 467 (H) X251 (D)) mm, Portrait : 353 (W) X 506 (H) X 251 (D) mm

Maximum Luminance: 700cd/m² (typ)

Mounting Options: 100mm VESA mounting

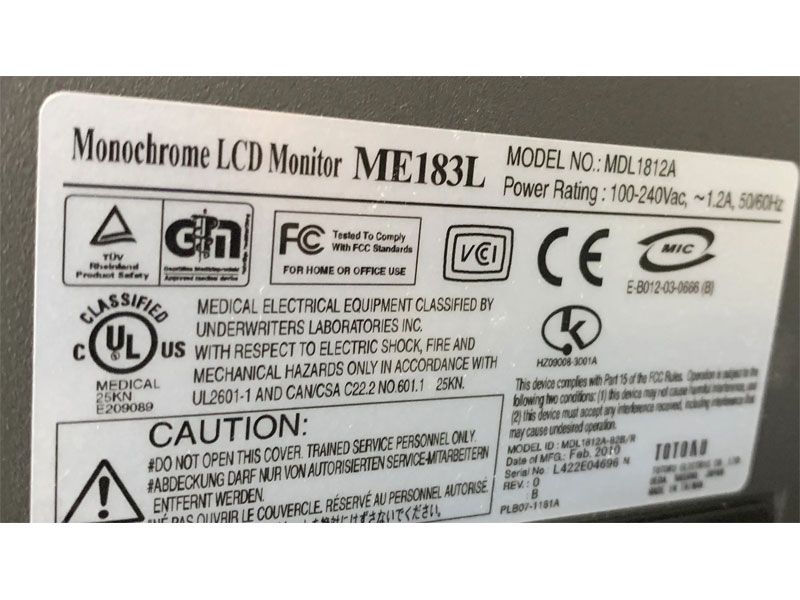

Name Plate Item: ME183L

Name Plate Model: MDL1812A

Pixel Pitch: 0.2805mm x 0.2805mm

Power Consumption: 50W (typ), (with power management feature)

Power Input: 100V-240V (-10%, +6%) 50/60Hz

Resolution: 640 X 480 (VGA), ~1280 X 1024 (SXGA)

Screen Size: 18.1 Inches

Screen Technology: 18.1-inch, TFT Monochrome, Active matrix

Video Inputs: Analog: D-sub 15P, BNC (Sync on Video, Separate), S-Video, NTSC/PAL Composite, Y-Cb-Cr

Viewing Angle: 170° horizontal and vertical

Warranty: 1 Year

Weight (With Stand): Approx. 10.6 kg

Weight (Without Stand): 7. kg

Resources

• Totoku-ME183L-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Totoku ME183L 1.3MP Medical Display

Name: Totoku ME183L 1.3MP Medical Display
Brand: Totoku
SKU: TOTOKU-ME183L-MDL1812A
Availability: InStock

Manufacturer: Totoku

Type: General Radiology Displays

Totoku ME183L 18.1'' LCD Display

• 1.3 megapixel 18.1 inch monochrome LCD
• Multiple interfaces
• Picture-in-Picture
• Built-in power supply unit
• Worldwide medical safety standards

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: TOTOKU-ME183L-MDL1812A
