Manufacturer: Stryker | Model: 1288 HD | Part number: 1288-010-000 (also written 1288010000)

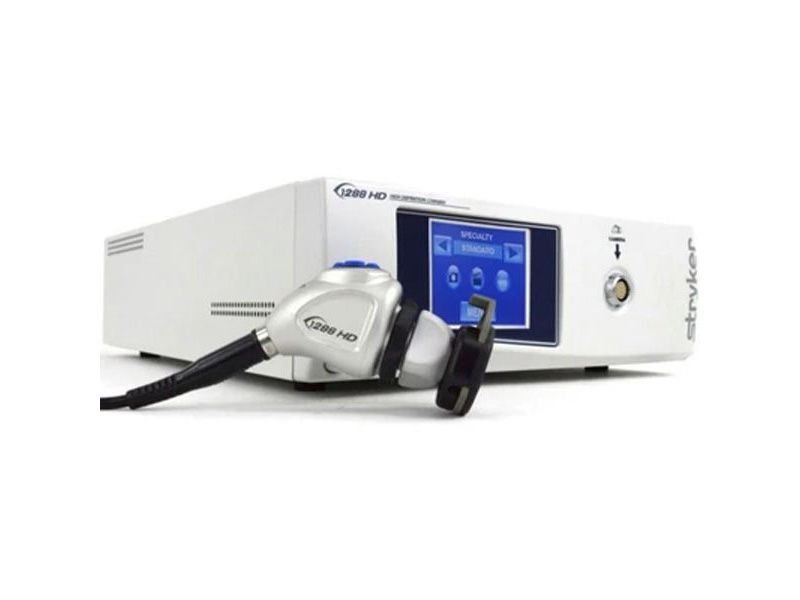

The Stryker 1288 HD 3-Chip Camera System (part number 1288-010-000 / 1288010000) is a full HD endoscopic surgical camera platform built around three 1/3-inch progressive scan CCDs delivering 1920x1080p resolution. Designed for multi-specialty use across laparoscopy, arthroscopy, ureteroscopy, hysteroscopy, ENT, and GI endoscopy, the Stryker 1288 HD (1288010000) offers nine surgical specialty settings, wireless 1080p HDTV transmission, and backward compatibility with existing digital capture devices, scopes, and flat panel displays. Ampronix supplies the Stryker 1288 HD camera system and provides professional sales, service, repair, and exchange replacement for this platform.

Key capabilities

• Full HD 1920x1080p resolution via three 1/3" progressive scan CCDs with 16 levels of switchable image enhancement for optimized brightness and color across surgical specialties
• Nine surgical specialty settings on the Stryker 1288 HD (1288-010-000) optimize color, lighting, and contrast for laparoscopy, arthroscopy, ureteroscopy, hysteroscopy, gynecology, ENT, GI, and general surgery
• Wireless 1080p HDTV transmission when paired with the Stryker WiSe wireless platform; direct L9000 LED light source control from the 1288 HD camera head
• Four fully programmable camera head buttons and an ergonomic 20mm single-hand focusing coupler; touchscreen LCD interface on the console for fast navigation during procedures
• Multiple HD video outputs: two DVI/RGBHV outputs (720p, 1080p, 1280x1024 HD), one 20-pin DisplayPort, and four Lucent fiber connectors (1.25mm ferrules) for digital fiber HD/HDTV — covering virtually all OR display and recording configurations
• Backward compatible with prior-generation Stryker digital capture devices, scopes, and flat panels; optional fiber optic board for future system expansion
• 1.5 lux minimum illumination and 1/60 to 1/10000 second automatic shutter range; camera head cable: 10.3 ft (3.15 m) sealed

Where it is used

The Stryker 1288 HD 3-Chip Camera System (1288-010-000) is installed in hospital operating rooms and ambulatory surgery centers performing minimally invasive procedures. Surgical specialties that rely on the Stryker 1288 HD include laparoscopic general surgery, laparoscopic cholecystectomy, knee and shoulder arthroscopy, ureteroscopy and cystoscopy, hysteroscopy and gynecologic laparoscopy, functional endoscopic sinus surgery (FESS), and upper and lower GI endoscopy. The 1288 HD platform is widely standardized across multi-specialty OR suites because a single console supports all procedure types through its nine specialty settings, reducing capital equipment costs and training overhead across the surgical team.

System components and compatible part numbers

• Camera Control Unit (CCU): 1288-010-000 (also 1288010000) — the console covered by this listing
• Camera heads: 1288-210-105 (regular C-Mount), 1288-710-105 (inline C-Mount), 1288-310-130 (pendulum), 1288-610-122 (integrated coupler)
• Coupler: 1288-020-122 (20mm C-Mount, single-hand focus)
• Compatible light source: Stryker L9000 LED (controlled directly from 1288 HD camera head)
• Compatible capture system: Stryker SDC Ultra, SDC3 HD (0240060100)
• Wireless: Stryker WiSe wireless platform for 1080p HDTV transmission

Specifications at a glance

• Resolution: 1920x1080p full HD; imaging: three 1/3" progressive scan CCDs; enhancement: 16 levels switchable
• Specialty settings: 9 (laparoscopy, arthroscopy, urology, gynecology, ENT, GI, and more)
• Video outputs: 2x DVI/RGBHV, 1x DisplayPort (20-pin), 4x Lucent fiber (1.25mm ferrules); all support 720p, 1080p HDTV, 1280x1024 HD
• Console: 12.5" W x 4.0" H x 15.25" D; weight: 13 lbs (5.9 kg); camera head: 1.6 lbs (0.73 kg); coupler: 0.6 lbs (0.27 kg)
• Shutter: 1/60 to 1/10000 sec auto; minimum illumination: 1.5 lux; camera cable: 10.3 ft (3.15 m) sealed

Frequently asked questions

• Is the Stryker 1288 HD 3-Chip Camera System (1288-010-000) available for purchase or exchange? - Ampronix supplies the Stryker 1288 HD camera system (1288-010-000 / 1288010000) as a certified refurbished unit. Ampronix also offers sales, service, repair, and exchange replacement for the Stryker 1288 HD platform. Contact Ampronix to confirm current availability and lead time.
• What is the difference between the Stryker 1288 HD and the Stryker 1588 AIM? - The Stryker 1288 HD (1288-010-000) uses three CCD sensors and was Stryker's flagship HD platform before the 1588 AIM. The Stryker 1588 AIM (1588-010-000) uses CMOS sensors and adds Advanced Imaging Modalities including Dynamic Range Enhancement (DRE) and near-infrared ENV mode. Many facilities continue to run 1288 HD systems alongside 1588 AIM platforms for multi-suite standardization.
• What camera heads and couplers are compatible with the Stryker 1288 HD console? - The Stryker 1288 HD console (1288-010-000) accepts camera heads 1288-210-105, 1288-710-105, 1288-310-130, and 1288-610-122, paired with the 1288-020-122 C-Mount coupler. Ampronix can advise on compatible head selection for specific surgical specialties.
• Does Ampronix offer repair for the Stryker 1288 HD camera system? - Yes. Ampronix provides professional sales, service, repair, and exchange replacement for the Stryker 1288 HD 3-Chip Camera System (1288-010-000 / 1288010000) and the broader Stryker endoscopy imaging line, including camera heads, couplers, and light sources.

Ampronix supplies the Stryker 1288 HD 3-Chip Camera System and offers professional sales, service, repair, and exchange replacement solutions for the Stryker 1288 HD platform and the broader Stryker endoscopy product line.
