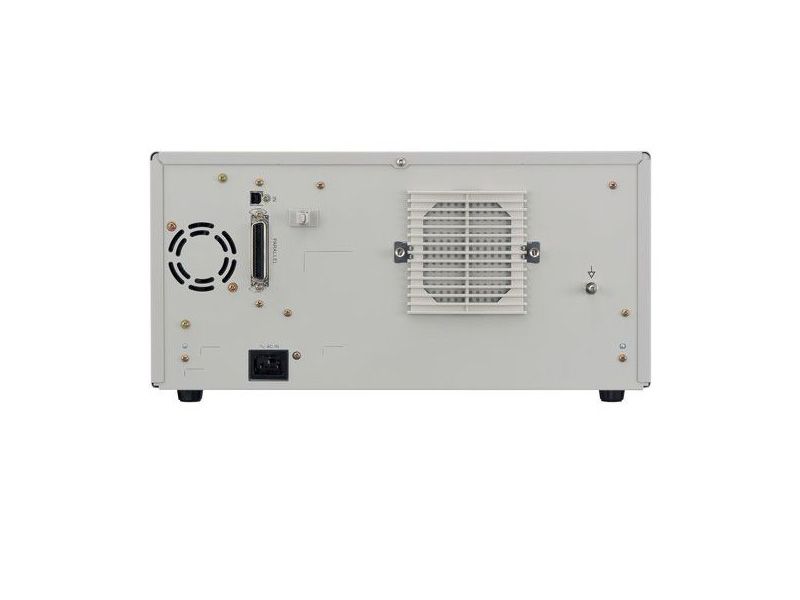

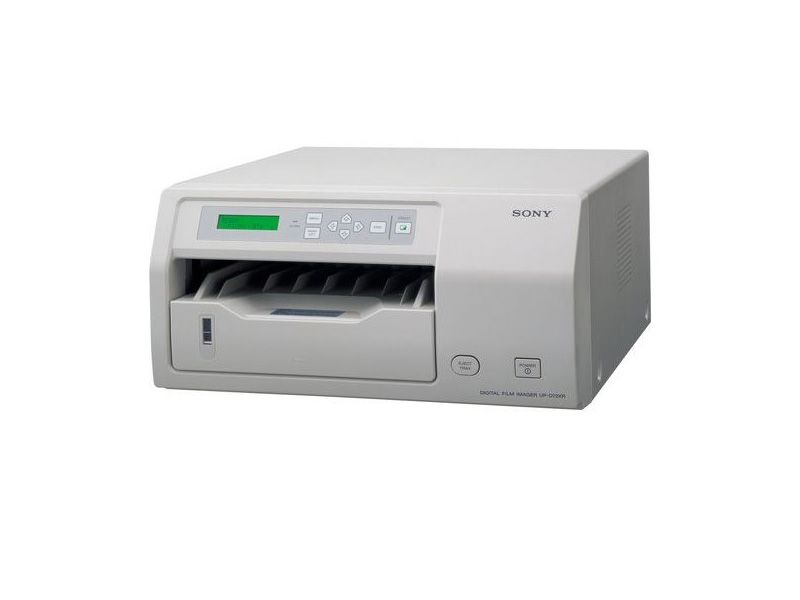

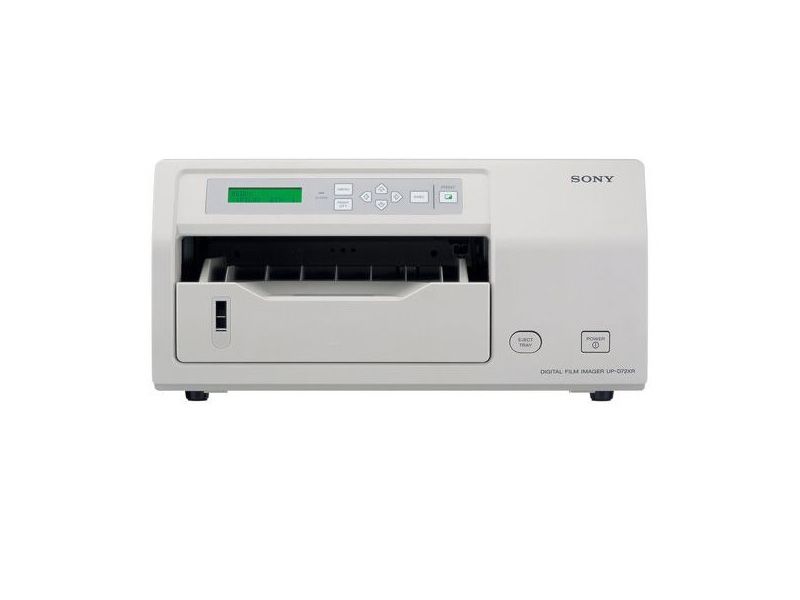

Sony UP-D72XR Film Imager
Sony UP-D72XR Film Imager
Sony UP-D72XR 8x10 Digital Film Imager
- • Sony UP-D72XR / UPD72XR Film Imager
- • 40 second print time
- • USB and parallel (IEEE 1284) interfaces
- • Service, repair, replacement and exchange
- • Part# UP-D72XR / UPD72XR, Sales and Repair
This model is out of production
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Sony UP-D72XR (UPD72XR) Film Imager. Ampronix offers refurbished Sony UP-D72XR units, service and repair, and replacement and exchange. Both the UP-D72XR and UPD72XR model numbers are supported.
Manufacturer: Sony, Model: UP-D72XR, Part number: UP-D72XR (also written UPD72XR)
The Sony UP-D72XR (UPD72XR) is a refurbished B&W digital medical film imager for radiology and clinical imaging documentation. It delivers 300 DPI output across 512 grayscale levels with a 40-second print cycle using direct thermal printing. It measures 412 x 210 x 431 mm. Ampronix supplies refurbished UP-D72XR units tested and certified to OEM specifications.
Key capabilities
- 300 DPI, 512 grayscale, Direct thermal printing
- ~40 sec print cycle, DICOM-compatible imaging
- 412 x 210 x 431 mm, Radiology-grade chassis
- AC 100-240V, Universal power, 50/60 Hz
- Ampronix Certified Refurbished, Up to 1-Year Warranty
- Part# UP-D72XR / UPD72XR, Sales, service, repair & exchange
Where it is used
The Sony UP-D72XR is deployed in radiology departments and diagnostic imaging centers for hardcopy output of X-ray, CR, and DR images requiring 300 DPI B&W film prints for diagnostic review, archiving, and patient records.
Specifications at a glance
- Resolution: 300 DPI, Grayscale: 512 levels
- Printing method: Direct thermal
- Print time: ~40 sec
- Dimensions: 412 x 210 x 431 mm (16¼ x 8⅜ x 17 in)
- Power: AC 100-240V, 50/60 Hz
- Part number: UP-D72XR / UPD72XR
Model: UP-D72XR / UPD72XR
Related: Sony products, Video Solutions.
Frequently asked questions about the Sony UP-D72XR
Is the Sony UP-D72XR Film Imager available for sales, service and repair, replacement and exchange?
Yes. Ampronix offers refurbished units of the Sony UP-D72XR, plus service and repair, replacement and exchange, subject to availability. Both the UP-D72XR and UPD72XR versions are covered. Call Ampronix for current availability and a quote.
Does Ampronix repair the Sony UP-D72XR?
Yes. Ampronix provides service and repair for the UP-D72XR (UPD72XR) with free evaluation and fast turnaround. Call Ampronix for a repair quote.
Can I exchange or replace my UP-D72XR?
Yes. Ampronix offers replacement and exchange options for the UP-D72XR. Call Ampronix to confirm availability and pricing.
Where can I buy a Sony UP-D72XR Film Imager?
Ampronix sells the Sony UP-D72XR (UPD72XR). Call Ampronix for current availability, pricing and lead time.
Is the UP-D72XR the same as the UPD72XR?
Yes. UP-D72XR and UPD72XR are two ways of writing the same model number, and Ampronix supplies and services both.
Should I repair or replace my UP-D72XR?
Ampronix can quote repair, exchange or replacement for the UP-D72XR so you can compare options. Call Ampronix for a free evaluation.
What should I have ready when I request a quote for the UP-D72XR?
Have the model number (UP-D72XR or UPD72XR), the serial number from the unit label if you have one, and whether you need a unit, a repair or an exchange.
What are the key features of the Sony UP-D72XR?
Key points for the Sony UP-D72XR: Superb Image Quality; Fast 40 Second Print Time; Supports High Speed Data Interface with USB and Parallel (IEEE 1284) Connections; Compact and Lightweight Design. Call Ampronix to confirm details for your application.
How does the UP-D72XR compare to the UP-D71XR?
Both are 300 DPI radiology film imagers in the same chassis; the UP-D72XR offers 512 grayscale levels versus 256 on the UP-D71XR, providing finer tonal gradation for diagnostic imaging.
