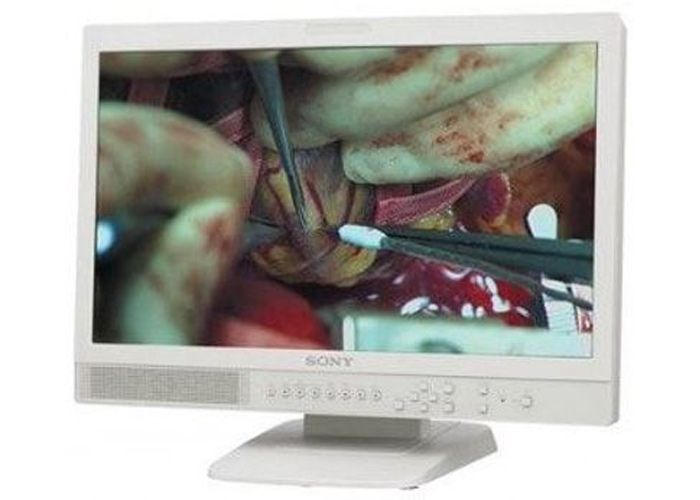

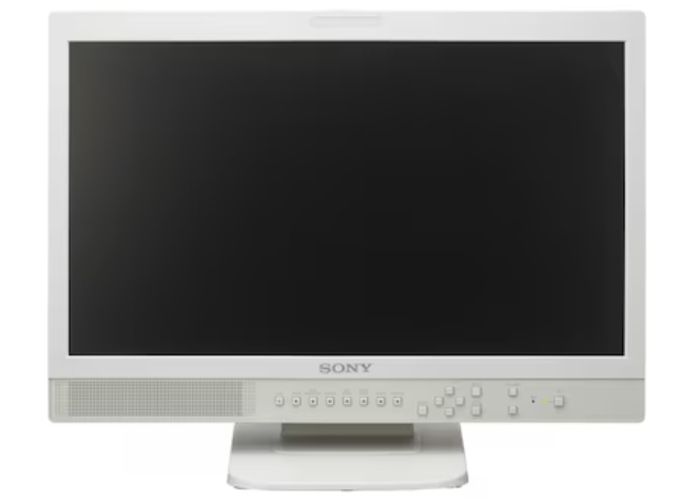

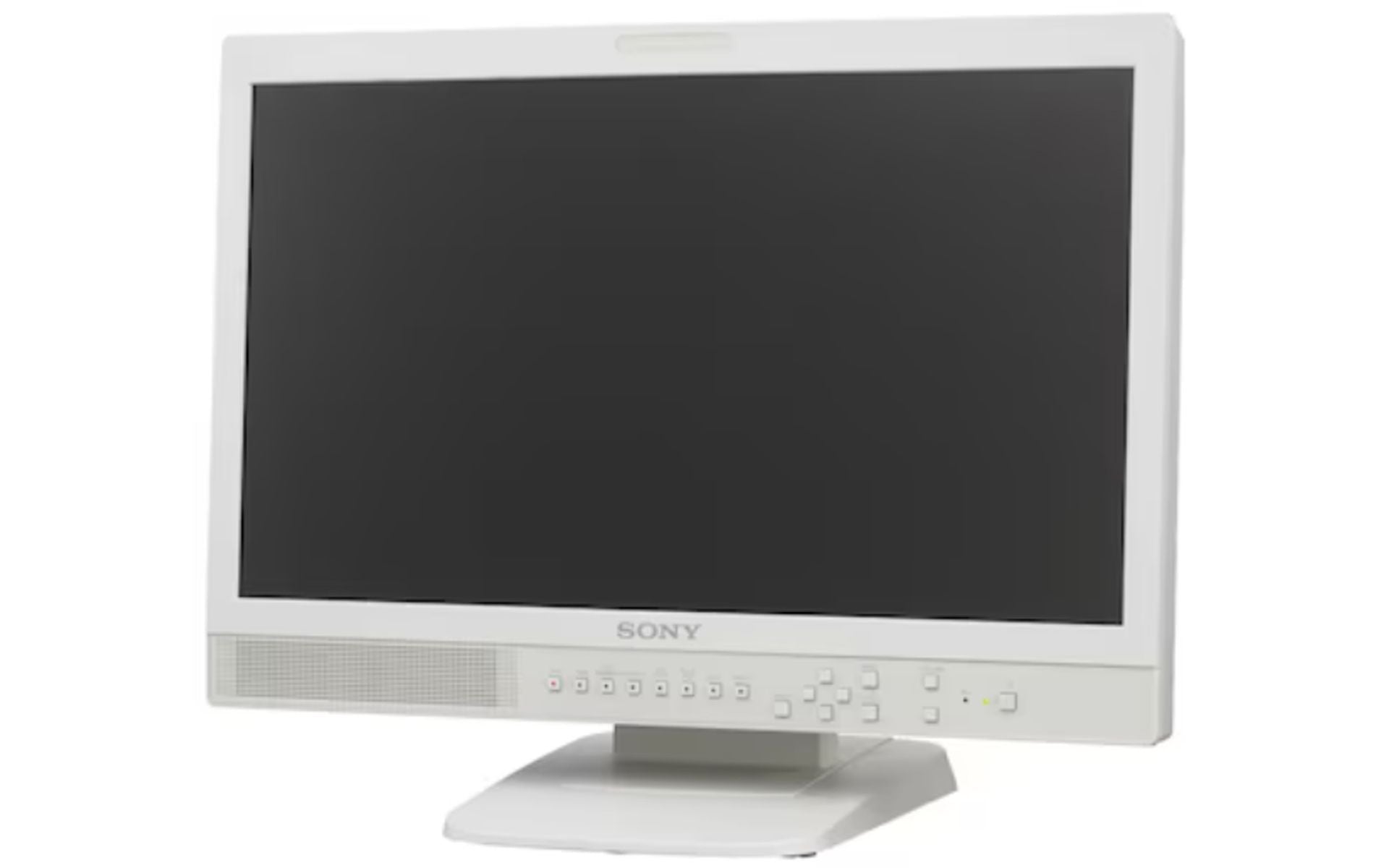

The Sony LMD-2110MD is a widescreen medical grade 21.5 inch surgical monitor incorporating a full HD TN (Twisted Nematic) type LCD panel that provides 1920 x 1080 pixel resolution. It is equipped with a 10-bit signal processor to reproduce lifelike images with smooth gradation and accurate color consistency. The monitor accepts a wide variety of SD signal inputs and features an HD signal input via either HDMI interface or analog component connectors. HD-SDI input is possible with the BKM-341HS option board. Its outstanding picture quality, versatile inputs, and lightweight compact design make it an ideal cost-effective choice for easy integration into a variety of applications such as a doctor’s office or operating room.

The LMD-2110MD monitor features a 21.5-inch LCD panel of full HD (1920 x 1080) resolution and 10-bit signal processing. Complying with medical safety standards and EMC standards, the monitor provides a crisp, sharp high definition image.

The LMD-2110MD is equipped with an analogue video input and output terminals as standard. It also features an HDMI input, which accepts HD signals up to 1080/60P. In addition, the monitor can input HD/SD-SDI signals using an optional input adaptor.

The LMD-2110MD offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and greyscale – thanks to its CRT-like gamma curve and 10-bit signal processing.

The LMD-2110MD delivers outstandingly crisp, high brightness and high contrast widescreen HD images with a fast transient response.

The LMD-2110MD supports HD-SDI input with an optional BKM-341HS HD/SD-SDI input adaptor. This input versatility allows the LMD-2110MD monitor to flexibly connect to HD-SDI digital environments. The monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adaptor.

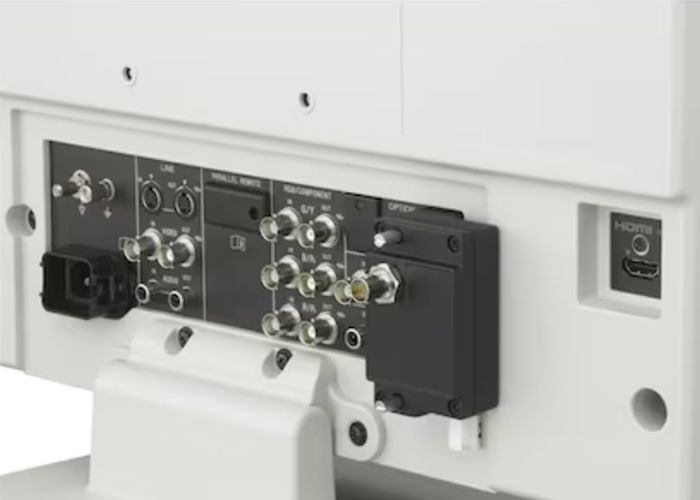

The LMD-2110MD is equipped with a full range of analogue SD inputs, including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. Also included is an HDMI input, which can accept HD digital signals up to 1080/50p and 60p. DVI signals can be input via the HDMI input connector using a conversion cable.

The monitor allows external remote control via a programmable parallel remote interface.

This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).

The monitor can stand on a desktop or be mounted on the wall or ceiling with a 100 x 100mm VESA arm mount.

Model: LMD-2110MD
