Manufacturer: Sinpro | Model: HPU101-105 | Part number: HPU101105C (also written HPU101-105, HPU101105)

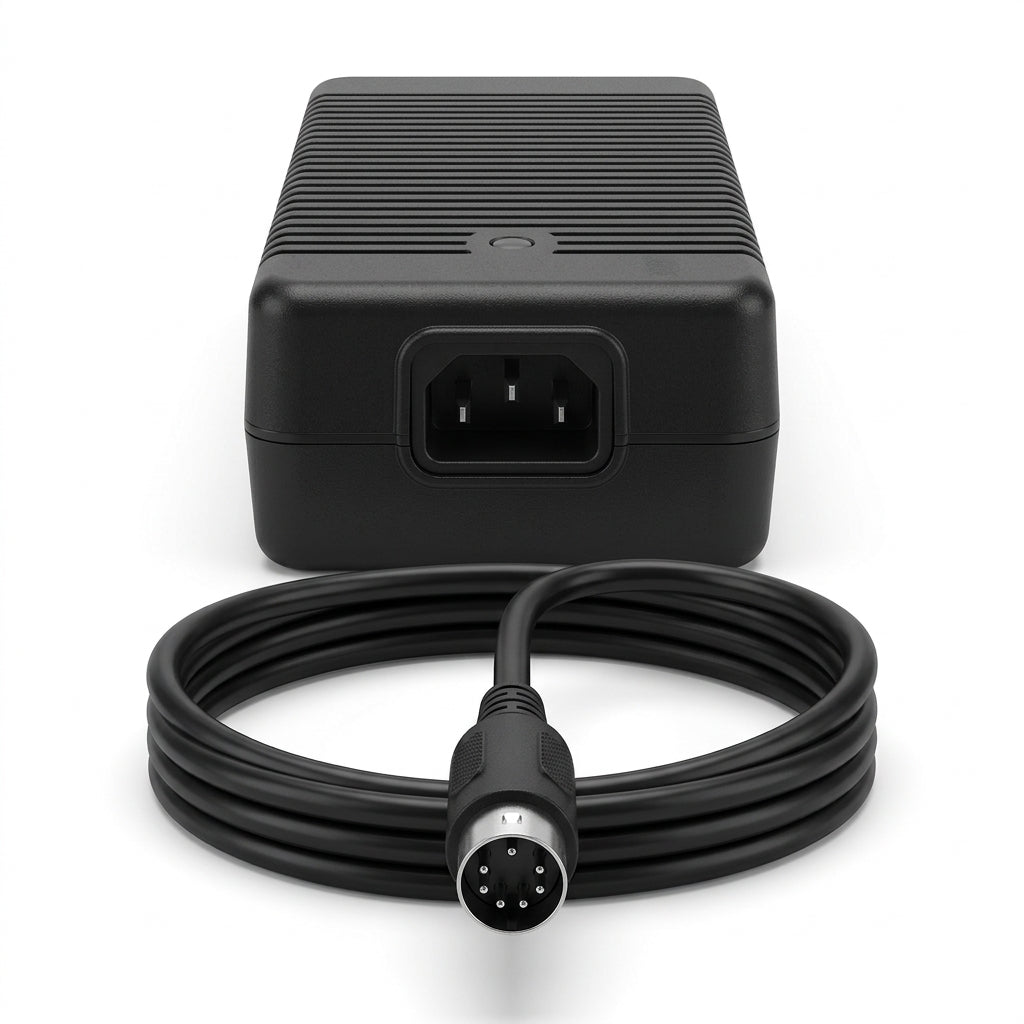

The Sinpro HPU101105C (Sinpro model HPU101-105) is a 100W medical-grade AC/DC switching power supply engineered for medical PCs, panel displays, and diagnostic instruments that require IEC 60601-1 compliant power. Ampronix supplies this Sinpro HPU101-105 power adapter new, ready to replace or upgrade the power supply in compatible medical panel PC and monitor installations.

Key capabilities

• 100W continuous output at 12V nominal (11.0-13.0 VDC), 9.10-7.69A
• Universal input range: 90-260 VAC, 47-63Hz for global compatibility
• 87% typical efficiency with 1% line regulation and 5% load regulation
• IEC-320-C14 AC inlet with barrel-style DC output connector
• Medical safety compliance: IEC/EN 60601-1 (3rd edition), cULus, CB, CE, TUV, FCC
• Short-circuit, overload, and crowbar-mode overvoltage protection with 2x MOPP patient isolation

Where it is used

The Sinpro HPU101-105 power adapter is the factory-specified power supply for medical panel PCs and clinical displays, including the Wincomm WMP-17F medical panel PC and Cybernet CyberMed M156S medical panel PC. It is used broadly across medical PC, medical camera, and laboratory diagnostic instrument installations where 2x MOPP patient-isolated power is required at the point of care.

System components and compatible part numbers

• Compatible medical panel PC: Wincomm WMP-17F - factory-specified Sinpro HPU101-105 power adapter
• Compatible medical panel PC: Cybernet CyberMed M156S - factory-specified Sinpro HPU101-105 power adapter

Specifications at a glance

• Output: 12V nominal (11.0-13.0 VDC), 9.10-7.69A, 100W
• Input: 90-260 VAC, 47-63Hz
• Dimensions: 146.0 x 76.0 x 43.0 mm
• Efficiency: 87% typical | Hold-up time: 12ms min
• Part number HPU101105C / Sinpro HPU101-105

Frequently asked questions

• Is the Sinpro HPU101105C (HPU101-105) available new? - Yes, Ampronix supplies the Sinpro HPU101-105 power adapter new.
• What medical devices use the Sinpro HPU101-105 power supply? - It is the factory-specified power adapter for medical panel PCs such as the Wincomm WMP-17F and Cybernet CyberMed M156S, and is used broadly across 100W medical PC, camera, and diagnostic instrument applications.
• Does Ampronix service or replace Sinpro power supplies? - Yes. Ampronix offers professional sales, service, repair, and exchange replacement for Sinpro medical-grade power supplies and the broader Sinpro power adapter line.

Ampronix supplies the Sinpro HPU101-105 and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Sinpro power supply line.
