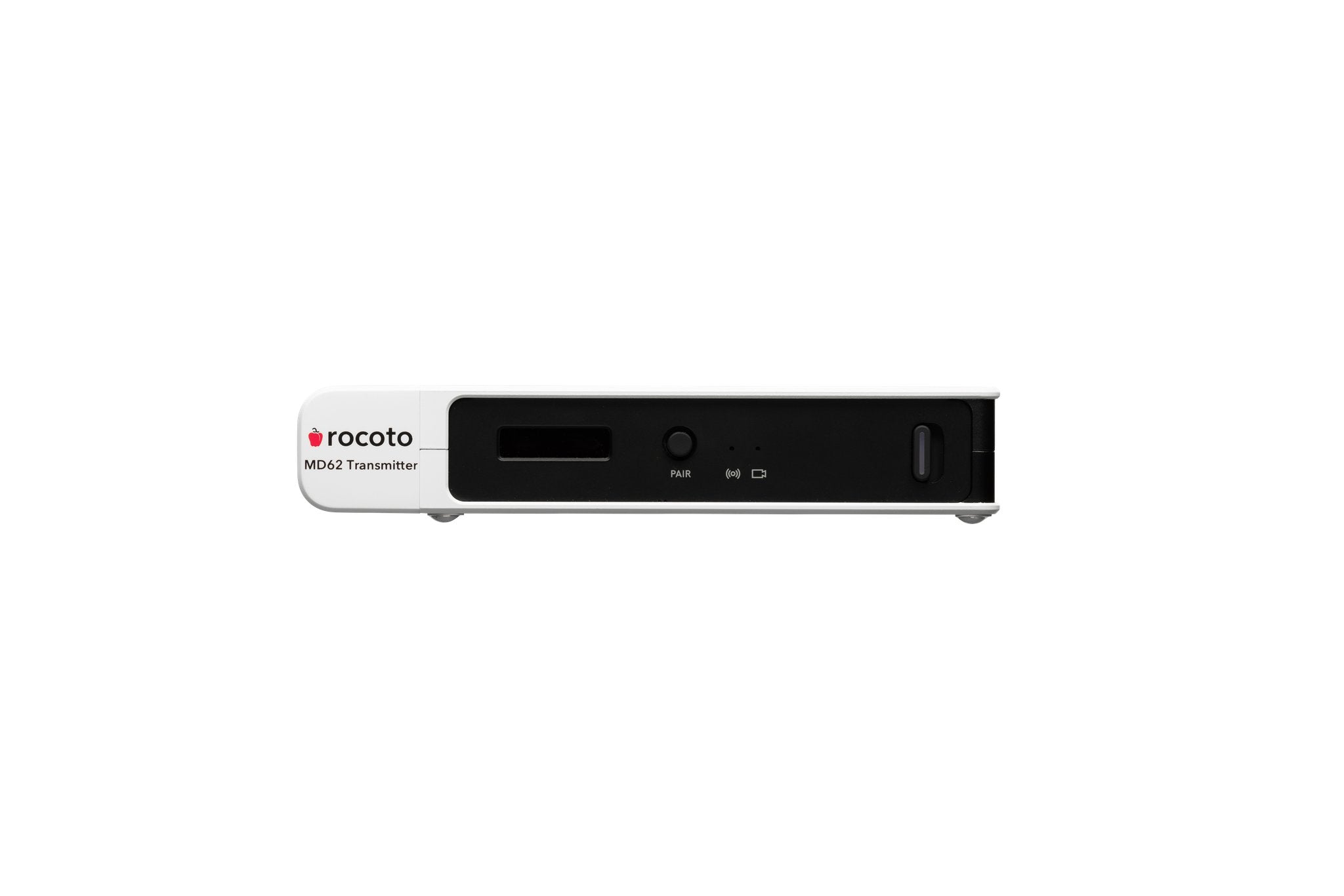

Rocoto MD62 wireless 4K 60Hz 12G-SDI video transmitter

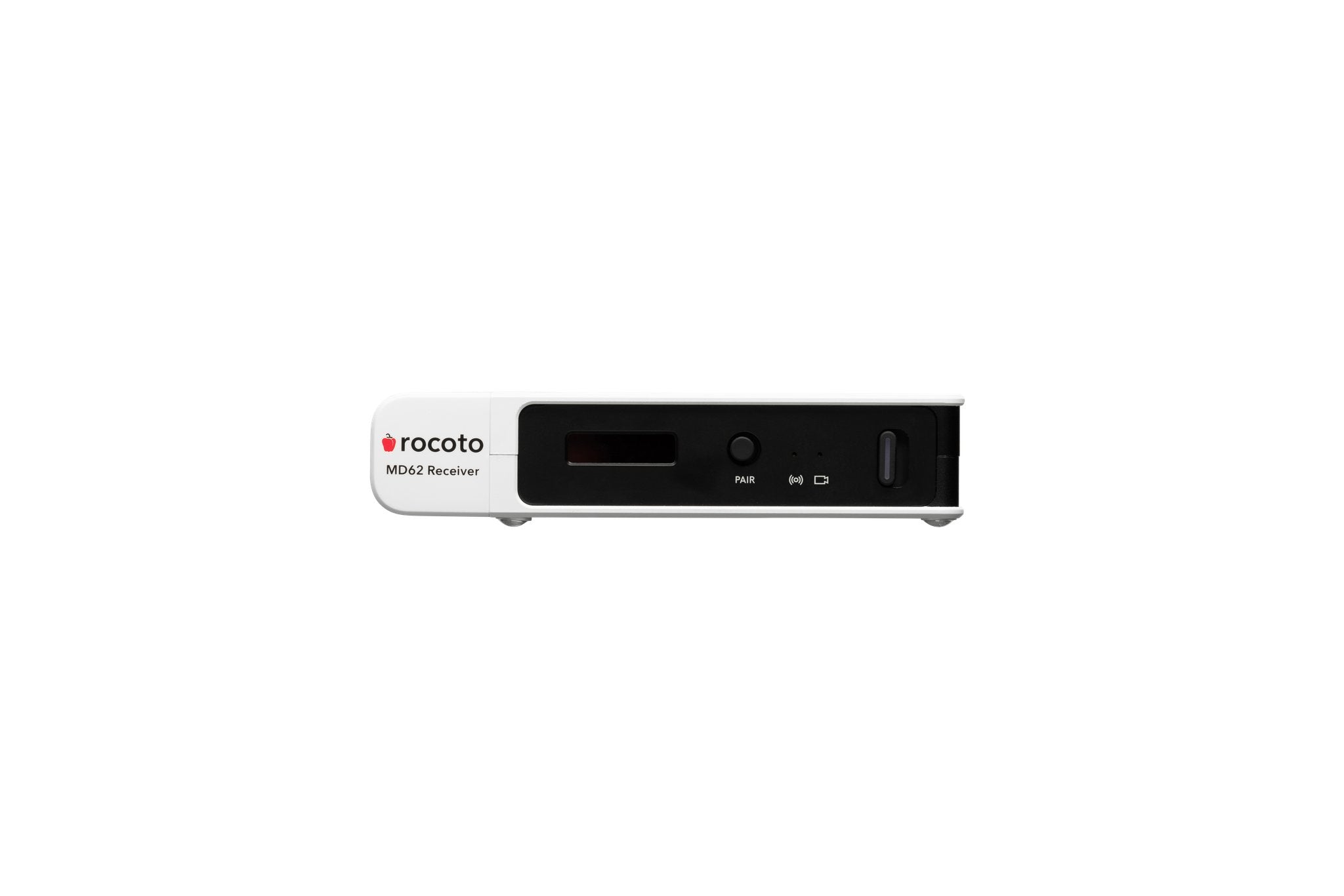

Rocoto MD62 wireless 4K 60Hz 12G-SDI video receiver

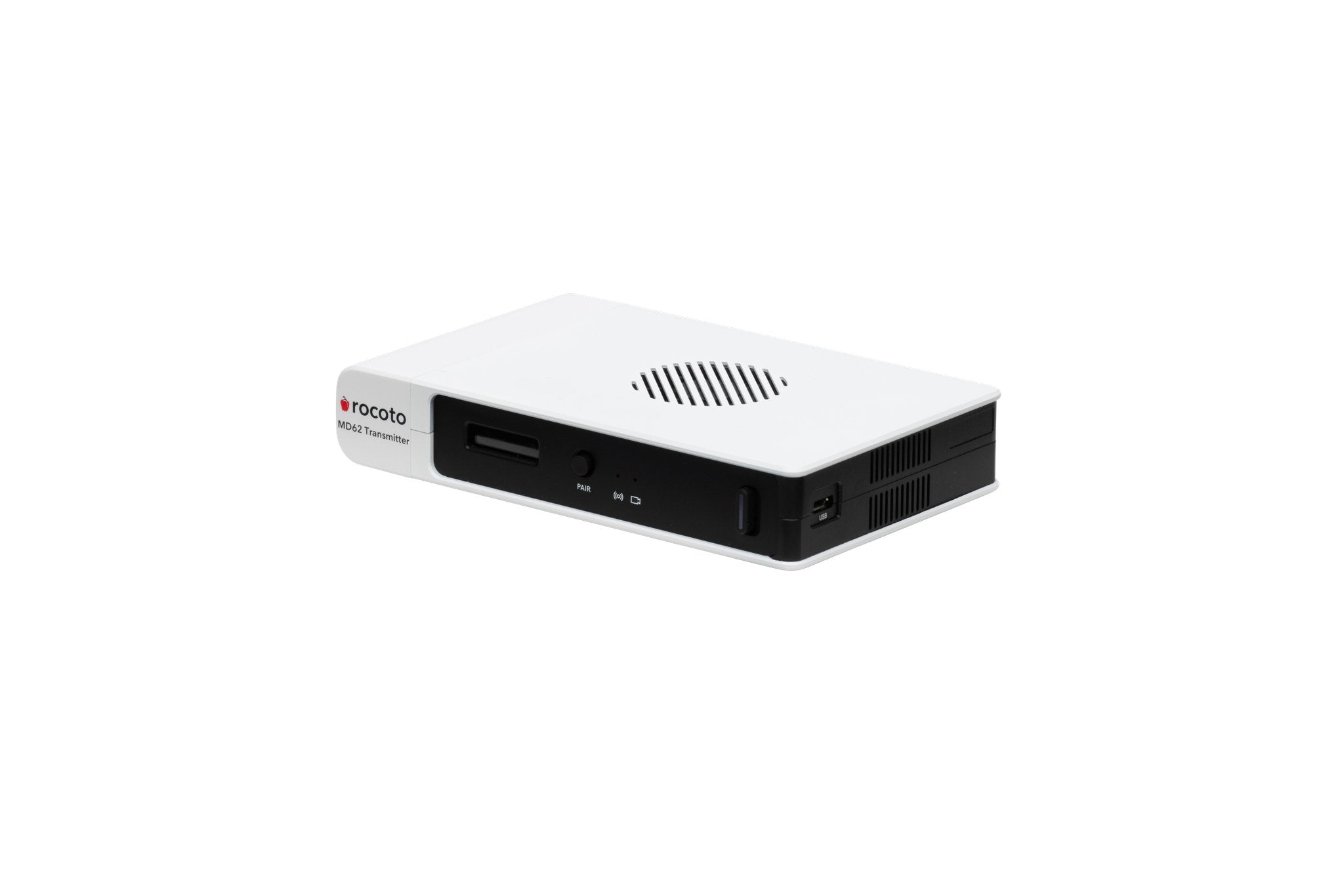

Rocoto MD62 wireless video transmitter side view

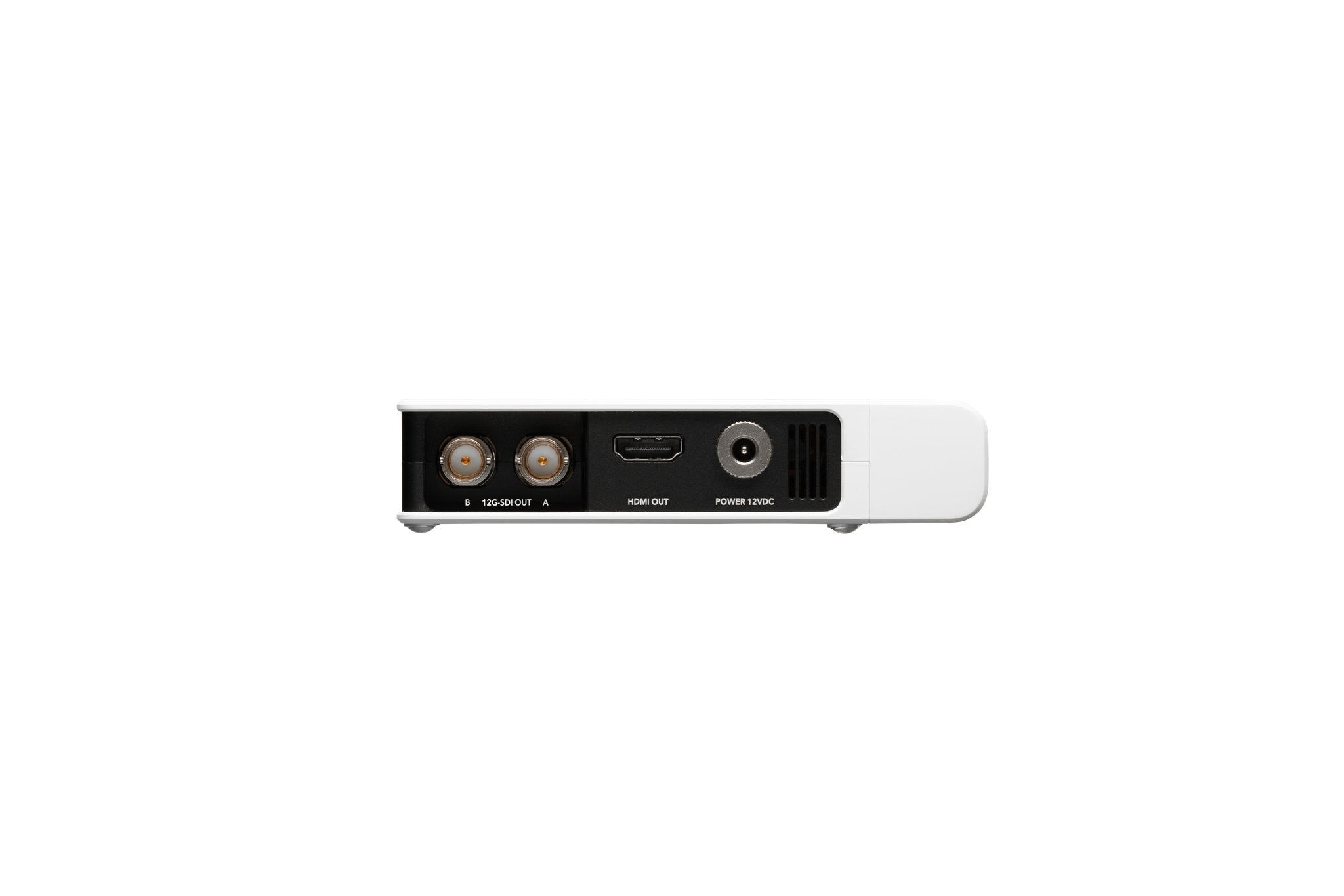

Rocoto MD62 wireless video receiver rear view

Details

The Rocoto MD62 is a zero-latency wireless video system engineered for the operating room, delivering uncompressed-quality 4K (3840 x 2160) at 60Hz from surgical cameras, endoscopy towers, and imaging sources to displays without cables. Its transmitter (part no. MDWL2_B1J1TX) and receiver (part no. MDWL2_B1J1RX) pair over a secure 5GHz link with roughly 1ms of latency, so what the surgeon sees on the monitor tracks the live procedure in real time.

Unlike HDMI-only wireless links, the MD62 adds full 12G-SDI (SMPTE 2082-1) input and output alongside HDMI 2.0, making it a drop-in fit for professional surgical video chains that run 12G-SDI. It supports YCbCr 4:2:2 10-bit color, both 2D and 3D resolutions, and AES-256 encrypted transmission to keep patient video private. A milled aluminum chassis, OLED status display, and VESA mounting make it durable and easy to integrate on carts, booms, and equipment racks.

Built to medical standards - ISO 13485:2016, EU MDR 2017/745 Class I, and FDA 510(k) exempt - the Rocoto MD62 (formerly branded Teradek) is available new from Ampronix, an authorized medical imaging specialist offering sales, integration support, and service.

Specifications

Manufacturer: Rocoto

Model: MD62

Condition: New

System: Wireless 4K 60Hz video link with 12G-SDI (transmitter + receiver)

Transmitter Part No.: MDWL2_B1J1TX

Receiver Part No.: MDWL2_B1J1RX

Video Inputs: 1x 12G-SDI (SMPTE 2082-1) + 1x HDMI 2.0 (transmitter)

Video Outputs: 1x 12G-SDI + 1x HDMI 2.0 (transmitter and receiver)

Color Sampling: SDI YCbCr 4:2:2 10-bit; HDMI RGB / YCbCr 4:4:4 / 4:2:2

Latency: ~1 ms

Supported Resolutions: 4Kp60/59.94/50/30/25/24; 1080p60/50/30; 1080i; 720p (2D and 3D)

Audio: 48kHz 24-bit PCM, embedded SDI/HDMI

Wireless Bands: 5.15-5.85 GHz (DFS and non-DFS)

Bandwidth: 20 MHz / 40 MHz

Modulation: OFDM

Encryption: AES-256 (RSA-1024 key exchange)

RF Power: Transmitter 18 dBm EIRP; Receiver 14 dBm EIRP

Antennas: Transmitter 4x internal 2dBi; Receiver 5x internal 2dBi

Range: Up to 100 ft (30 m)

Multicast: One transmitter to up to 4 receivers

Dimensions: Transmitter 149 x 91.2 x 27.1 mm; Receiver 129 x 138.8 x 27.1 mm

Weight: Transmitter 12.7 oz (360 g); Receiver 15.3 oz (434 g)

Construction: Milled aluminum chassis

Mountability: VESA (AMN_VESA_KIT01 / KIT02)

Interfaces: OLED display, navigation button, USB-C, RS-232, BLE/NFC

Power Input: 12 VDC (2.1 mm barrel)

Power Consumption: Transmitter 20 W; Receiver 18 W

Operating Temperature: 0-40 C (32-104 F), 25-75% RH

Certifications: ISO 13485:2016, MDR 2017/745 Class I, FDA 510(k) exempt, IEC 60601-1, FCC, CE

Resources

Rocoto MD62 Specification Sheet (PDF)

Rocoto MD62 Brochure (PDF)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Rocoto MD62 Medical Wireless 4K 60Hz 12G-SDI Video System

Name: Rocoto MD62 Medical Wireless 4K 60Hz 12G-SDI Video System
Brand: Rocoto
SKU: ROCOTO-MD62
Availability: InStock

Manufacturer: Rocoto

Type: Wireless Video Transmission Systems

Rocoto MD62 Medical Wireless 4K 60Hz 12G-SDI Video Link System

• Video resolution: Up to 4K (3840 x 2160) at 60Hz
• Latency: ~1ms (near-zero)
• Video I/O: 12G-SDI (SMPTE 2082-1) + HDMI 2.0
• Color: YCbCr 4:2:2 10-bit, 2D and 3D resolutions
• Wireless range: Up to 100 ft (30m)
• Encryption: AES-256 (RSA-1024 key exchange)
• Multicast: One transmitter to up to 4 receivers
• Antennas: Internal (4x transmitter / 5x receiver)
• Powered by Amimon 3rd generation chipsets
• Medical compliance: MDR 2017/745 Class I, FDA 510(k) exempt, ISO 13485:2016
