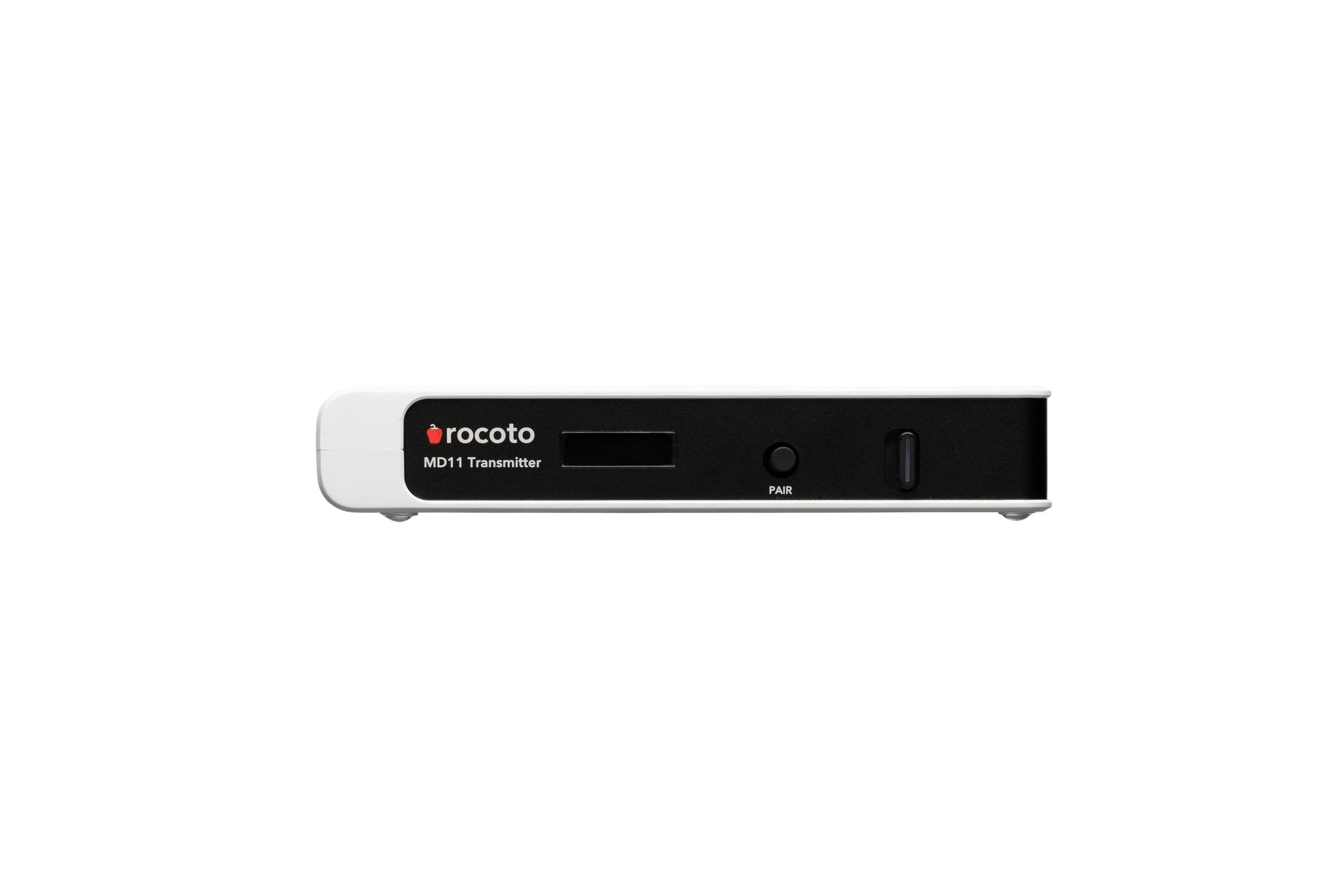

Rocoto MD11 wireless 4K video transmitter

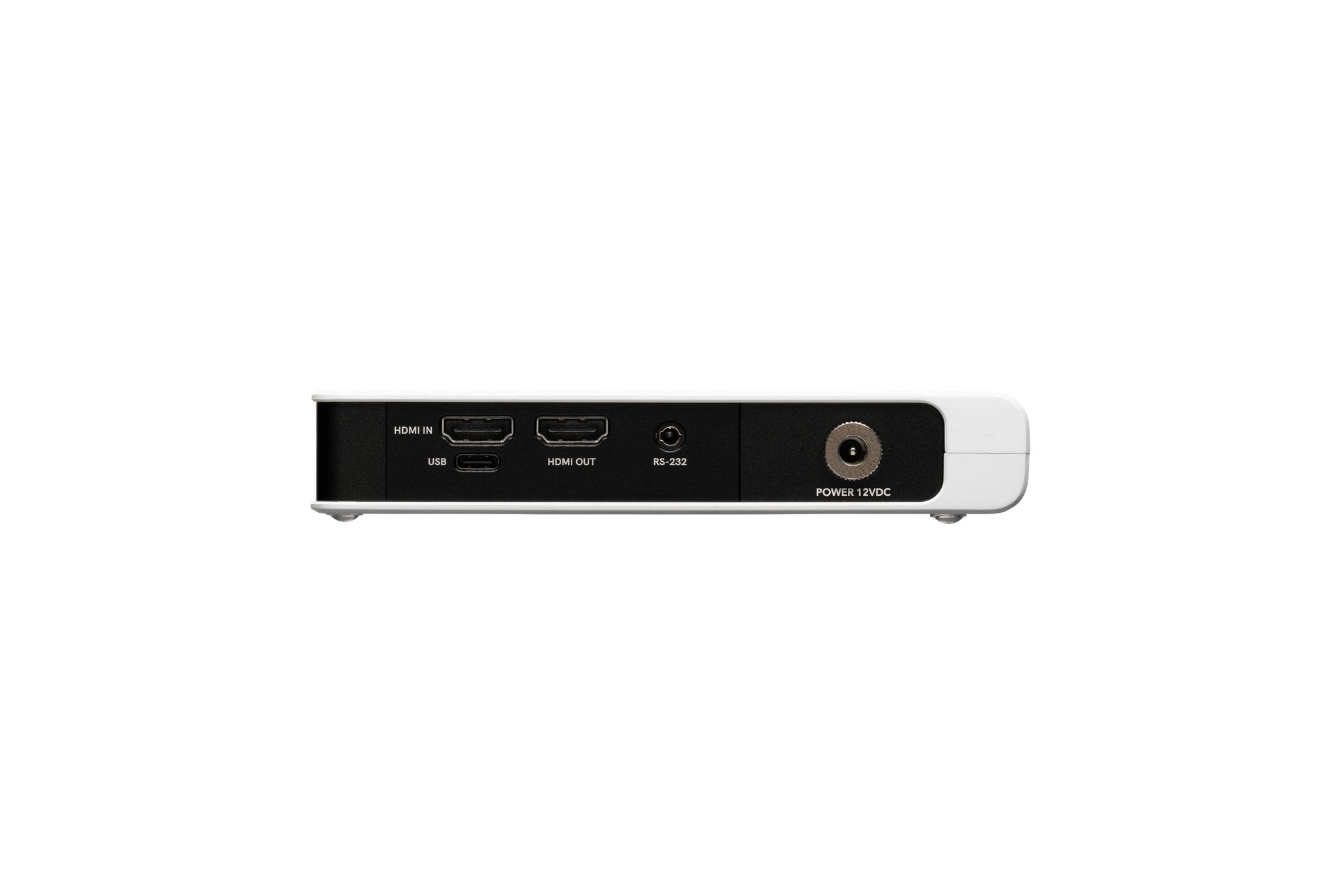

Rocoto MD11 wireless 4K video transmitter rear ports

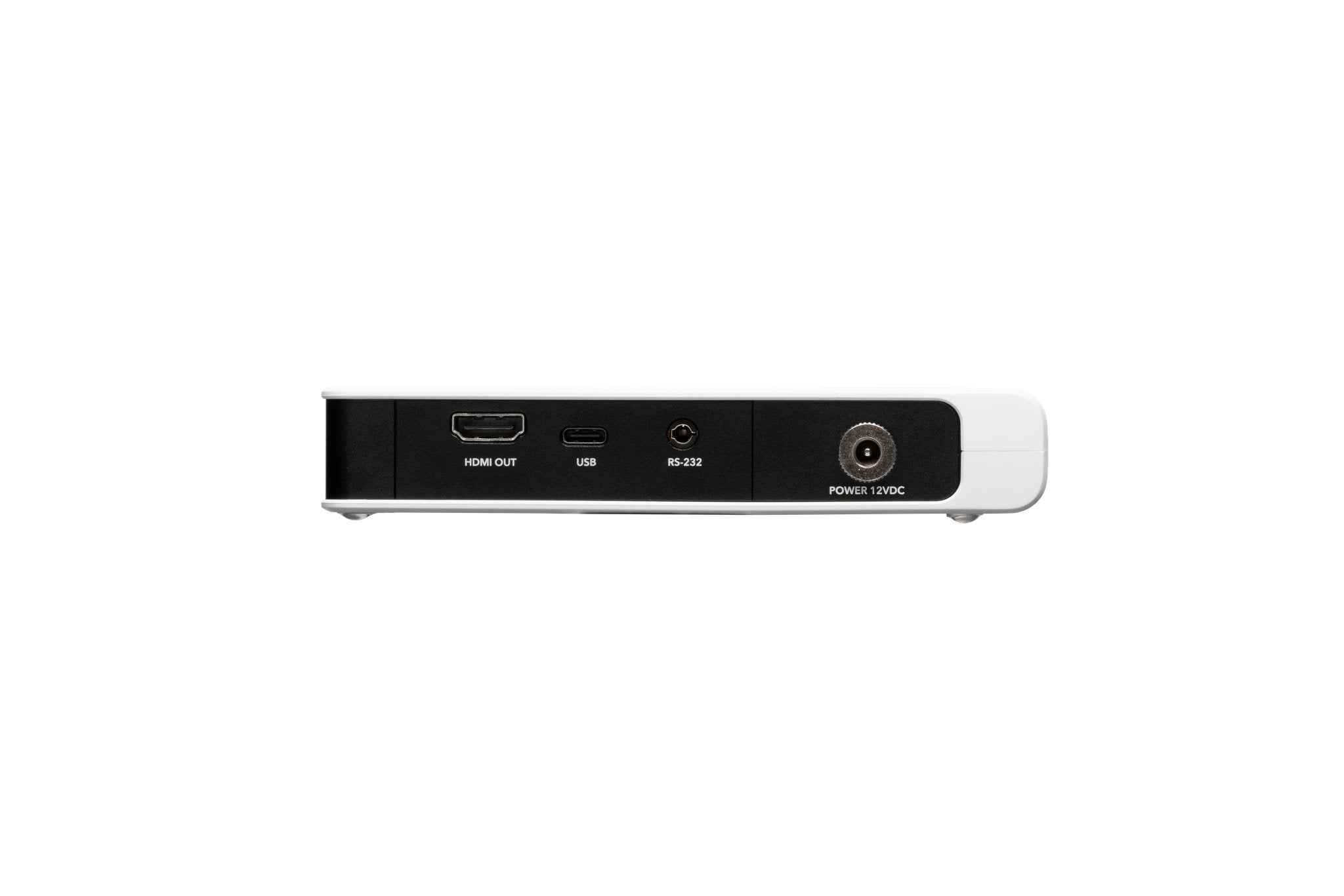

Rocoto MD11 wireless 4K video receiver rear ports

Details

The Rocoto MD11 is a medical-grade wireless 4K 30Hz video transmission system that connects live surgical video to secondary monitors without cables — reducing OR clutter while adding mobility and flexibility during procedures.

Built on Amimon third-generation chipsets, the Rocoto MD11 wirelessly delivers 4K 30Hz video with near-zero (~1 ms) latency over a secure, robust link. Its ultra-low latency and link reliability make it ideal for C-arms, surgical cameras, endoscopy systems, robotic surgery, and other medical visualization applications. A single transmitter can stream the same video to up to four separate receivers, and quick, cable-free installation saves time while maximizing OR availability.

The Rocoto MD11 wireless links can also be supplied without the enclosure for system integration. Part numbers: Transmitter MDWL1_C1N1TX, Receiver MDWL1_B1N1RX.

Specifications

Manufacturer: Rocoto

Model: MD11

Condition: New

System: Wireless 4K 30Hz video link (transmitter + receiver)

Transmitter Part No.: MDWL1_C1N1TX

Receiver Part No.: MDWL1_B1N1RX

Video Input: 1x HDMI 1.4 Type-A (transmitter)

Video Output: 1x HDMI 1.4 Type-A (transmitter and receiver)

Color Sampling: RGB 8/10-bit; YCbCr 4:4:4 8/10-bit; YCbCr 4:2:2

Latency: ~1 ms

Supported Resolutions: 4Kp30/29.97/25/24/23.98; 1080p60/50/30; 1080i60/50; 720p60/50

Audio: 48kHz 24-bit PCM, embedded HDMI (2-channel)

Wireless Bands: 5.15-5.85 GHz (DFS and non-DFS)

Bandwidth: 20 MHz / 40 MHz

Modulation: OFDM

Encryption: AES-256 (RSA-1024 key exchange)

RF Power: Transmitter 15 dBm EIRP; Receiver 14 dBm EIRP

Antennas: Transmitter 2x internal 0dBi; Receiver 5x internal 2dBi

Range: Up to 100 ft (30 m)

Multicast: One transmitter to up to 4 receivers

Dimensions: 6 x 3.1 x 1 in (151.4 x 79 x 25 mm)

Weight: Transmitter 10.4 oz (296 g); Receiver 11.2 oz (317 g)

Construction: Milled aluminum chassis

Mountability: VESA (AMN_VESA_KIT01 / KIT02)

Interfaces: OLED display, navigation button, USB-C, RS-232, BLE/NFC

Power Input: 12 VDC (2.1 mm barrel)

Power Consumption: Transmitter 6 W; Receiver 7 W

Operating Temperature: 0-40 C (32-104 F), 25-75% RH

Certifications: ISO 13485:2016, MDR 2017/745 Class I, FDA 510(k) exempt, IEC 60601-1, FCC, CE

Resources

Rocoto MD11 Specification Sheet (PDF)

Rocoto MD11 Brochure (PDF)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Rocoto MD11 Medical Wireless 4K 30Hz Video System

Name: Rocoto MD11 Medical Wireless 4K 30Hz Video System
Brand: Rocoto
SKU: ROCOTO-MD11
Availability: InStock

Manufacturer: Rocoto

Type: Wireless Video Transmission Systems

Rocoto MD11 Medical Wireless 4K 30Hz Video Link System

• Video resolution: Up to 4K (3840 x 2160) at 30Hz
• Latency: ~1ms (near-zero)
• Video I/O: HDMI 1.4 Type-A
• RF bandwidth: 20MHz / 40MHz
• Wireless range: Up to 100 ft (30m)
• Encryption: AES-256 (RSA-1024 key exchange)
• Multicast: One transmitter to up to 4 receivers
• Antennas: Internal (2x transmitter / 5x receiver)
• Powered by Amimon 3rd generation chipsets
• Medical compliance: MDR 2017/745 Class I, FDA 510(k) exempt, ISO 13485:2016
