Details

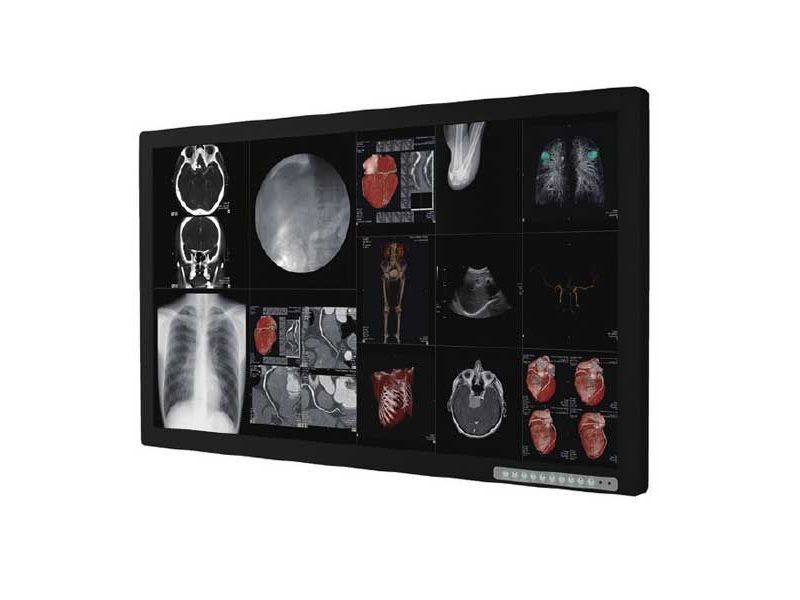

Designed to enhance procedure guidance and in-room education during minimally invasive procedures, the Optik View SC55820 4K UHD Surgical Display supports team viewing of one or more sources to improve workflow through coordinated case support. This 55" 4K UHD Display delivers vivid, precise, and consistently uniform video, and life-like images.

Model Number: SC55820

Model Number: SC55820G

Specifications

Manufacturer: Optik View

Condition: New

Certifications: EN 60601-1:2006+A11:2011+A1:2013+A12:2014, IEC 60601-1: 2005 + CORR. 1 (2006) + CORR. 2 (2007) + AM1(2012), ANSI/AAMI ES60601-1:2005+A2(R2012)+A1, CAN/CSA-C22.2 No. 60601 1:14, EN 60601-1 2 (2015), IEC 60601-1 2 (2014), UL62368-1 2nd Edition, CAN/CSA C22.

Contrast Ratio: 4000:1 (typ.)

Dimensions (Without Stand): 1253 x 749 x 94mm

Maximum Luminance: 500 (typ.), 400 (min.)

Mounting Options: 400x400, 400x200 or 200x200

Pixel Pitch: 0.315 (H) x 0.315 (V)

Power Input: In 100-240VAC, 4A (max), 50~60Hz / Out 24Vdc, 12.5A <190 (max) / <5W (stand-by)

Resolution: 3840 (H) x 2160 (V)

Response Time: 8.5 GTG (typ.)

Screen Size: 54.6

Screen Technology: TFT color, active matrix (super MVA technology)

Video Inputs: DP 1.2 (x1), HDMI 2.0 (x2)

Viewing Angle: 178° (H) / 178° (V)

Weight (Without Stand): 29.5kg

Resources

• Optik-View-SC55820-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Optik View SC55820 55" 4K UHD Surgical LCD Monitor

Name: Optik View SC55820 55" 4K UHD Surgical LCD Monitor
Brand: Optik View
SKU: OPTIKVIEW-SC55820
Availability: InStock

Manufacturer: Optik View

Type: Surgical Displays

Optik View SC55820 55-inch 4K UHD Surgical LCD Monitor

• 4K UHD Resolution improves sharpness
• High brightness and contrast improves depth perception and deep cavity details
• ClearView AR delivers clear, crisp images to reduce eye fatigue
• Contrasting enclosure reduces eye fatigue
• Conforms to IEC 60601 Safety & Quality certifications ensure NTSC 72% years of reliable operation

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
