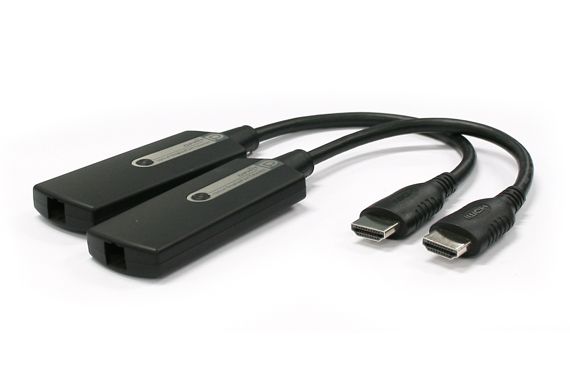

HSP, optical HDMI Pigtail module extender, is designed to let digital flat panel display extend over 300meters (1,000feet) away from host based on HDMI standard by optical transmission technology. It can transmit EDID data and HDCP over fiber in real time.

• Connector (transmitter) : HDMI A type (male), SC connector (female)
• Connector (receiver) : HDMI A type (male), SC connector (female)
• Optic Fiber : 1ch / Multi-mode(50/125μm)
• Pixel Clock : 225MHz (single link)
• Supporting Resolution & Distance
- WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft)
- 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
• Power Consumption (transmitter) : 1.3W (max)
• Power Consumption (receiver) : 1.1W (max)
• Power Supply (transmitter) : Optional
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 300W x 33D x 12H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
