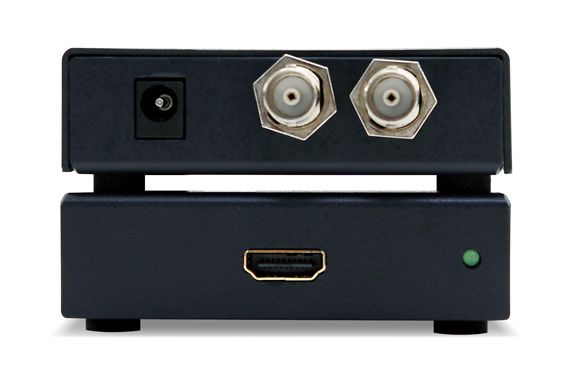

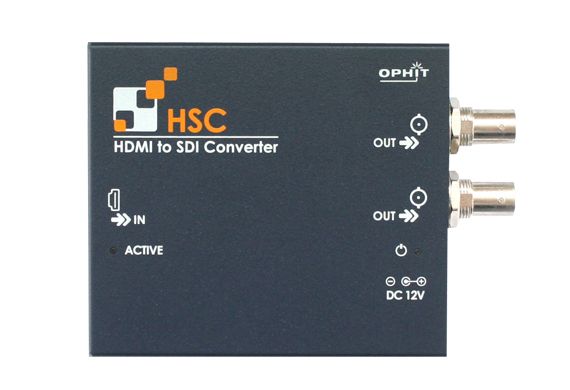

OPHIT's HSC is perfect solution for converting HDMI singnal to SDI signal. It enables HDMI compliant device to be connected to display with SDI input. It can also split one HDMI signal to two SDI signal at the same time.

• Input port
  - HDMI signal (480i, 720p, 1080i, 1080p)
• Output port
  - SDI signal  SMPTE 259M-C (270Mbps)
                      SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
                      SMPTE 424M (2.970, 2.970 / 1.001Gbps)
• Connector
  - Input : HDMI A type (female)
  - Output : 75Ω BNC  (female x 2)
  - Power : DC-Jack 2.1pie
• General
  - Dimension : 100W x 85D x 25H (mm)
  - Weight : 250g
  - Power : 100 ~ 240V with DC 12V, 1A
  - Power Comsumption : 2.4W (max)
