OPHIT DSP-M DVI Fiber Optic 1 Channel Extender
OPHIT DSP-M DVI Fiber Optic 1 Channel Extender
- • Ophit DSP-M / DSPM DVI Fiber Optic Extender
- • Sales, replacement and exchange
- • New and refurbished units, call for availability
- • Part# DSP-M / DSPM, Sales and Exchange
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

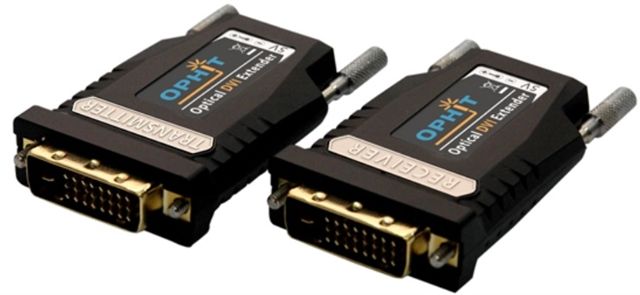

Ophit DSP-M (DSPM) DVI Fiber Optic Extender. Ampronix offers new and refurbished Ophit DSP-M units for sales, replacement and exchange. Both the DSP-M and DSPM model numbers are supported.

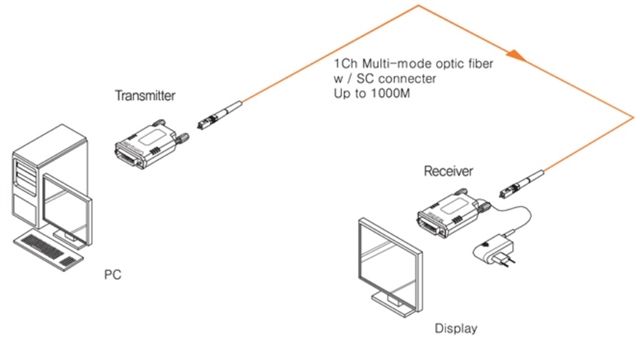

DSP, optical DVI extension module, is designed to let digital flat panel display extend over 300meters(1,000feet) away from host based on DVI standard by optical transmission technology. It can transmit EDID data and HDCP over fiber in real time. DSP can be used with DVI device as well as HDMI standard device such as Blu-ray player, PS-3 as well as DVI devices.

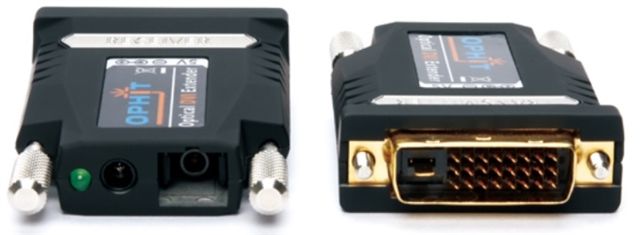

- Connector (transmitter) : DVI-D (male), SC connector (female)
- Connector (receiver) : DVI-D (male), SC connector (female)
- Optic fiber : 1ch / Multi-mode
- Pixel Clock : 225MHz (single link)
- Supporting Resolution & Distance :
- WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft) - 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
- Power Consumption (transmitter) : 1.3W (max)
- Power Consumption (receiver) : 1.1W (max)
- Power Supply (transmitter) : Optional
- Power Supply (receiver) : 100~240V DC 5V, 2A
- Dimensions : 40W x 60D x 14H (mm)
- Operating Temperature range : 0°C ~ 50°C
- Storage Temperature range : -20°C ~ 70°C
Model: DSP-M / DSPM
Related: Video Solutions.
Frequently asked questions about the Ophit DSP-M
Is the Ophit DSP-M DVI Fiber Optic Extender available for sales, replacement and exchange?
Yes. Ampronix offers new and refurbished units of the Ophit DSP-M, plus replacement and exchange, subject to availability. Both the DSP-M and DSPM versions are covered. Call Ampronix for current availability and a quote.
Where can I buy a Ophit DSP-M DVI Fiber Optic Extender?
Ampronix sells the Ophit DSP-M (DSPM). Call Ampronix for current availability, pricing and lead time.
Can I exchange or replace my DSP-M?
Yes. Ampronix offers replacement and exchange options for the DSP-M. Call Ampronix to confirm availability and pricing.
Is the DSP-M the same as the DSPM?
Yes. DSP-M and DSPM are two ways of writing the same model number, and Ampronix supplies both.
What should I have ready when I request a quote for the DSP-M?
Have the model number (DSP-M or DSPM) and the quantity you need, and whether you need a unit or an exchange. Ampronix will confirm availability and pricing.
