OPHIT DSL-M Optical DVI 1 Channel Extender
OPHIT DSL-M Optical DVI 1 Channel Extender
OPHIT DSL-M Optical DVI 1 Channel Extender
- • Ophit DSL-M / DSLM Optical DVI Extender
- • 1 channel SC multi-mode optical fiber
- • Supports single link TMDS signals
- • Sales, replacement and exchange
- • Part# DSL-M / DSLM, Sales and Exchange
Tx, Rx and 1 power adapter only, (excluding optical cable)
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

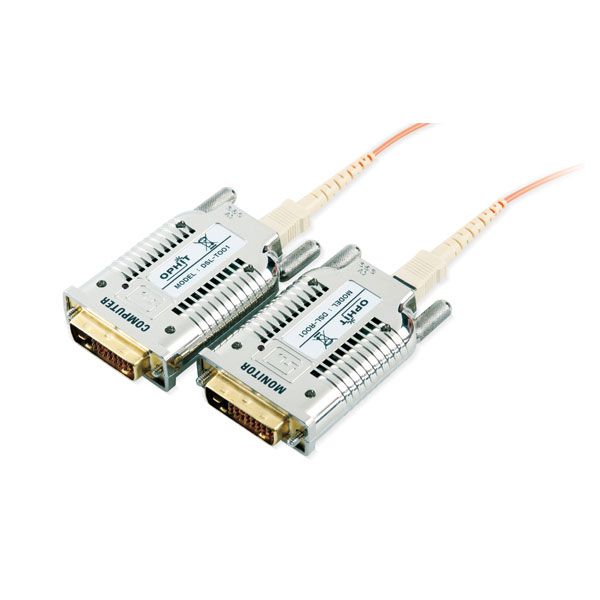

Ophit DSL-M (DSLM) Optical DVI Extender. Ampronix offers new and refurbished Ophit DSL-M units for sales, replacement and exchange. Both the DSL-M and DSLM model numbers are supported.
This unique fiber optical cable system let your digital flat panel display extend up to 1,000 meters (3,300 feet) away from host by TMDS digital signal transmission with only 1 (one) optical fiber.
Ampronix can quote the Ophit DSL-M for sales, replacement or exchange. Call with the model number (DSL-M) and your application for current availability.
Specifications at a glance
- Connectors: DVI-D male and SC female on transmitter and receiver
- Fiber: 1ch multi-mode 50/125um
- Pixel clock: 165MHz (single link)
- Resolution and distance: WUXGA 1920x1200 at 60Hz up to 500m; SXGA 1280x1024 at 60Hz up to 1,000m
- Power consumption: transmitter 0.8W max, receiver 0.6W max
- Receiver power supply: 100-240V, DC 5V 2A
- Dimensions: 40W x 67D x 15H mm
Model: DSL-M / DSLM
Related: Video Solutions.
Frequently asked questions about the Ophit DSL-M
Is the Ophit DSL-M Optical DVI Extender available for sales, replacement and exchange?
Yes. Ampronix offers new and refurbished units of the Ophit DSL-M, plus replacement and exchange, subject to availability. Both the DSL-M and DSLM versions are covered. Call Ampronix for current availability and a quote.
Where can I buy a Ophit DSL-M Optical DVI Extender?
Ampronix sells the Ophit DSL-M (DSLM). Call Ampronix for current availability, pricing and lead time.
Can I exchange or replace my DSL-M?
Yes. Ampronix offers replacement and exchange options for the DSL-M. Call Ampronix to confirm availability and pricing.
Is the DSL-M the same as the DSLM?
Yes. DSL-M and DSLM are two ways of writing the same model number, and Ampronix supplies both.
What should I have ready when I request a quote for the DSL-M?
Have the model number (DSL-M or DSLM) and the quantity you need, and whether you need a unit or an exchange. Ampronix will confirm availability and pricing.
What are the key features of the Ophit DSL-M?
Key points for the Ophit DSL-M: High Speed and long distance transmission by 1 channel SC type multi-mode optical fiber; Corresponding to T.M.D.S signal (single link); R, G, B, Clock signal is transmitted over optical fiber; Self detecting function for EDID information. Call Ampronix to confirm details for your application.
