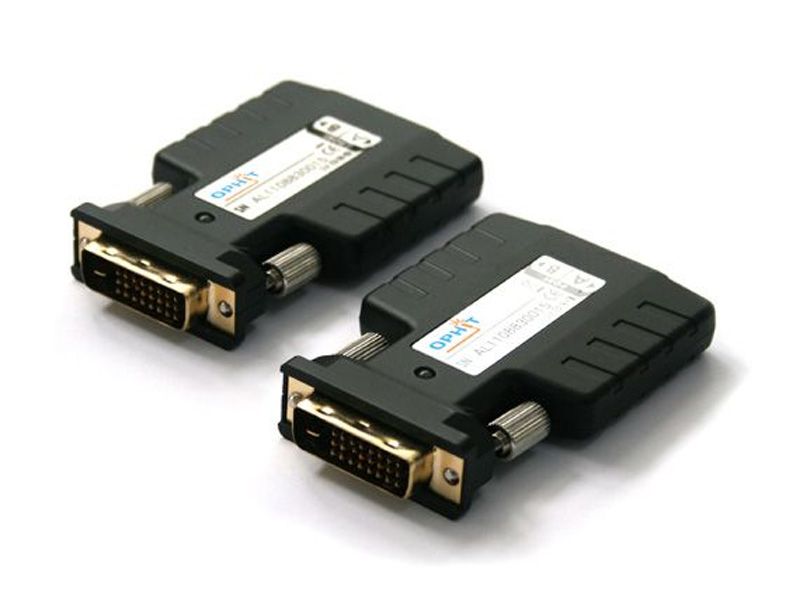

OPHIT DQSP DVI Dual Link Fiber Optic 2ch Extender
OPHIT DQSP DVI Dual Link Fiber Optic 2ch Extender
OPHIT DQSP DVI dual link fiber optic 2ch extend
- • Ophit DQSP DVI Dual Link Fiber Optic 2-Channel Extender
- • 2-channel SC multi-mode fiber
- • Extends up to 300 meters
- • Sales, replacement and exchange
- • Part# DQSP, Sales and Exchange
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Ophit DQSP DVI Dual Link Fiber Optic 2-Channel Extender. Ampronix offers new and refurbished Ophit DQSP units for sales, replacement and exchange.
OPHIT's DQSP over two fiber solution lets you extend dual link digital signal up to 300 meters (1000 feet). Maximum supporting resolution is up to WQUXGA (2560x1600).
Ampronix can quote the Ophit DQSP for sales, replacement or exchange. Call with the model number (DQSP) and your application for current availability.
Specifications at a glance
- Connectors: DVI-D male and SC female on transmitter and receiver

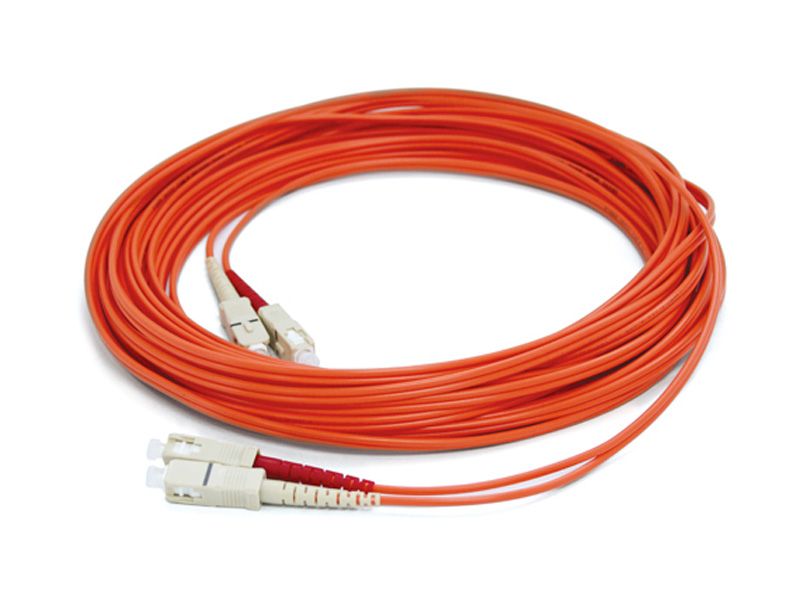

- Fiber: 2ch multi-mode 50/125um
- Pixel clock: single link max 225MHz, dual link supported
- Resolution and distance: WQXGA 2560x1600 at 60Hz up to 300m (1,000ft)
- Power supply: 100-240V, DC 5V 2A
- Power consumption: transmitter 1.6W max, receiver 1.65W max
- Dimensions: 75W x 50D x 15H mm
- Standards: DVI v1.0, HDMI v1.3, HDCP compliant
Model: DQSP
Related: Video Solutions.
Frequently asked questions about the Ophit DQSP
Is the Ophit DQSP DVI Dual Link Fiber Optic 2-Channel Extender available for sales, replacement and exchange?
Yes. Ampronix offers new and refurbished units of the Ophit DQSP, plus replacement and exchange, subject to availability. Call Ampronix for current availability and a quote.
Where can I buy a Ophit DQSP DVI Dual Link Fiber Optic 2-Channel Extender?
Ampronix sells the Ophit DQSP. Call Ampronix for current availability, pricing and lead time.
Can I exchange or replace my DQSP?
Yes. Ampronix offers replacement and exchange options for the DQSP. Call Ampronix to confirm availability and pricing.
What should I have ready when I request a quote for the DQSP?
Have the model number (DQSP) and the quantity you need, and whether you need a unit or an exchange. Ampronix will confirm availability and pricing.
What are the key features of the Ophit DQSP?
Key points for the Ophit DQSP: High speed and long distance transmission by 2channel SC type multi-mode optical fiber; TMDS video signal and EDID data are transmitted over optical fiber; Extends up to 300meters; It can support single link and dual link both. Call Ampronix to confirm details for your application.
