OPHIT DQSL DVI dual link fiber optic 2ch extender
OPHIT DQSL DVI dual link fiber optic 2ch extender
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

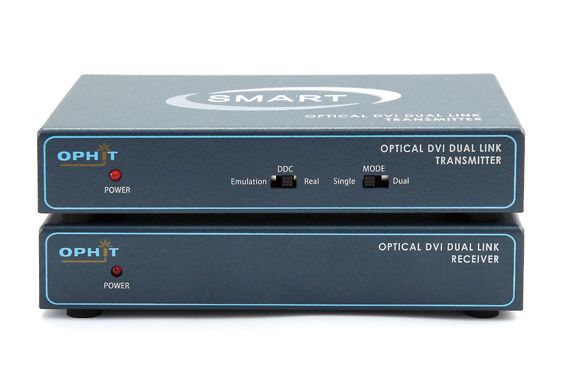

DQSL with fiber optical cable system let your dual link flat panel display extend up to 100M (330feet) away from the host. Maximum resolution is WQXGA.

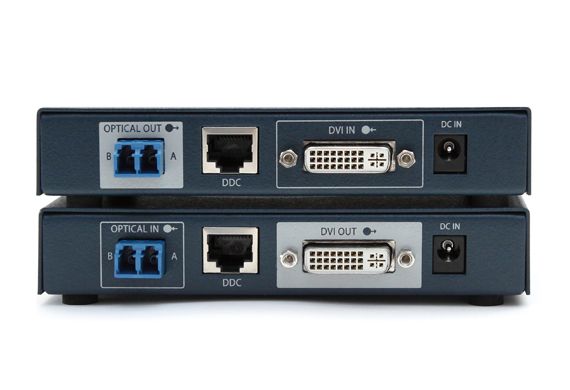

• Connector (transmitter) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Connector (receiver) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Optic fiber : 2ch / Multi-mode(50/125μm)
• Video Bandwidth (pixel clock) : Single link (max 225MHz) / Dual link
• Supporting Resolution & Distance
- WQXGA (2560 x 1600) @60Hz / 100M (330ft)
• Power Consumption (transmitter) : Single link 1.4 (max) / Dual link 1.9W (max)
• Power Consumption (receiver) : 1.25W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 135W x 85D x 25H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
